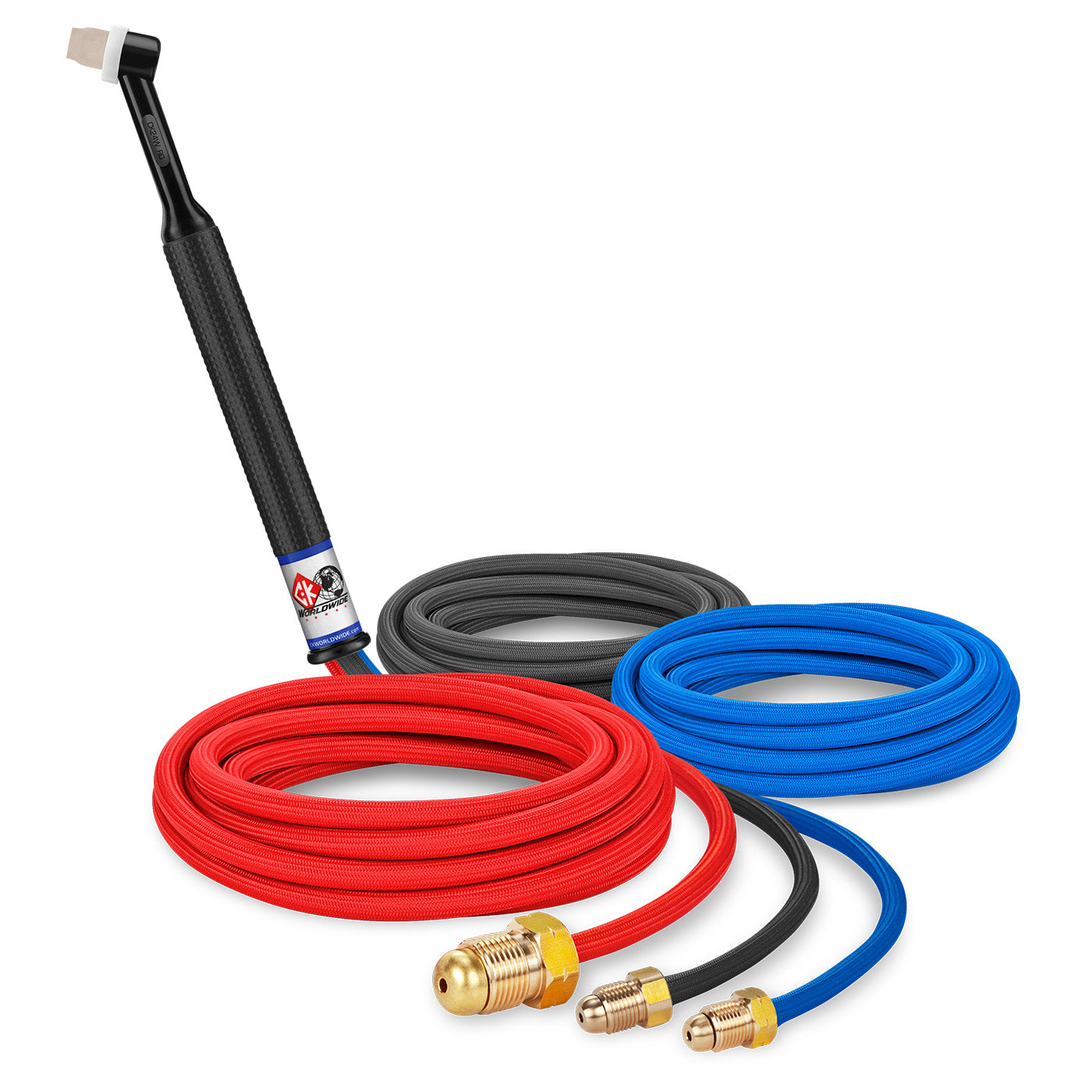

CK Worldwide CK24W-12SF 180 Amp Water-Cooled TIG Torch with Rigid Head, 12.5' SuperFlex Cable

The CK Worldwide CK24W-12SF delivers professional-grade TIG welding performance with 180 amp capacity at 100% duty cycle for continuous operation on demanding projects. This gas-cooled, rigid head torch features 12.5-foot SuperFlex cables that provide exceptional maneuverability while maintaining durability in high-production environments.

Built to CK Worldwide's exacting standards, this torch utilizes the proven 8 Series head design for stable arc characteristics and precise control. The rigid head configuration ensures consistent tungsten positioning, while the gas-cooled design eliminates the complexity of water circulation systems. SuperFlex cables resist kinking and twisting, reducing operator fatigue during extended welding sessions.

• Current Rating: 180 amps ACHF or DCSP at 100% duty cycle
• Head Style: Rigid, 8 Series compatibility
• Cable Length: 12.5 feet (3.8m)
• Cable Type: SuperFlex 3-piece construction
• Cooling: Gas-cooled design
• Weight: 3.5 oz (99 grams)
• Overall Length: 8-1/8" (20.6 cm)
• Thread Pattern: 3/8" x 32

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL332 — 3/32" (2.4mm) Gas Lens

Compatible with CK80, CK90, CK180, and CWH180 torch bodies, this torch accepts standard 8 Series consumables for easy parts availability. The CK24W-12SF provides reliable performance for fabrication shops, maintenance departments, and production welding applications requiring consistent high-amperage capability.
