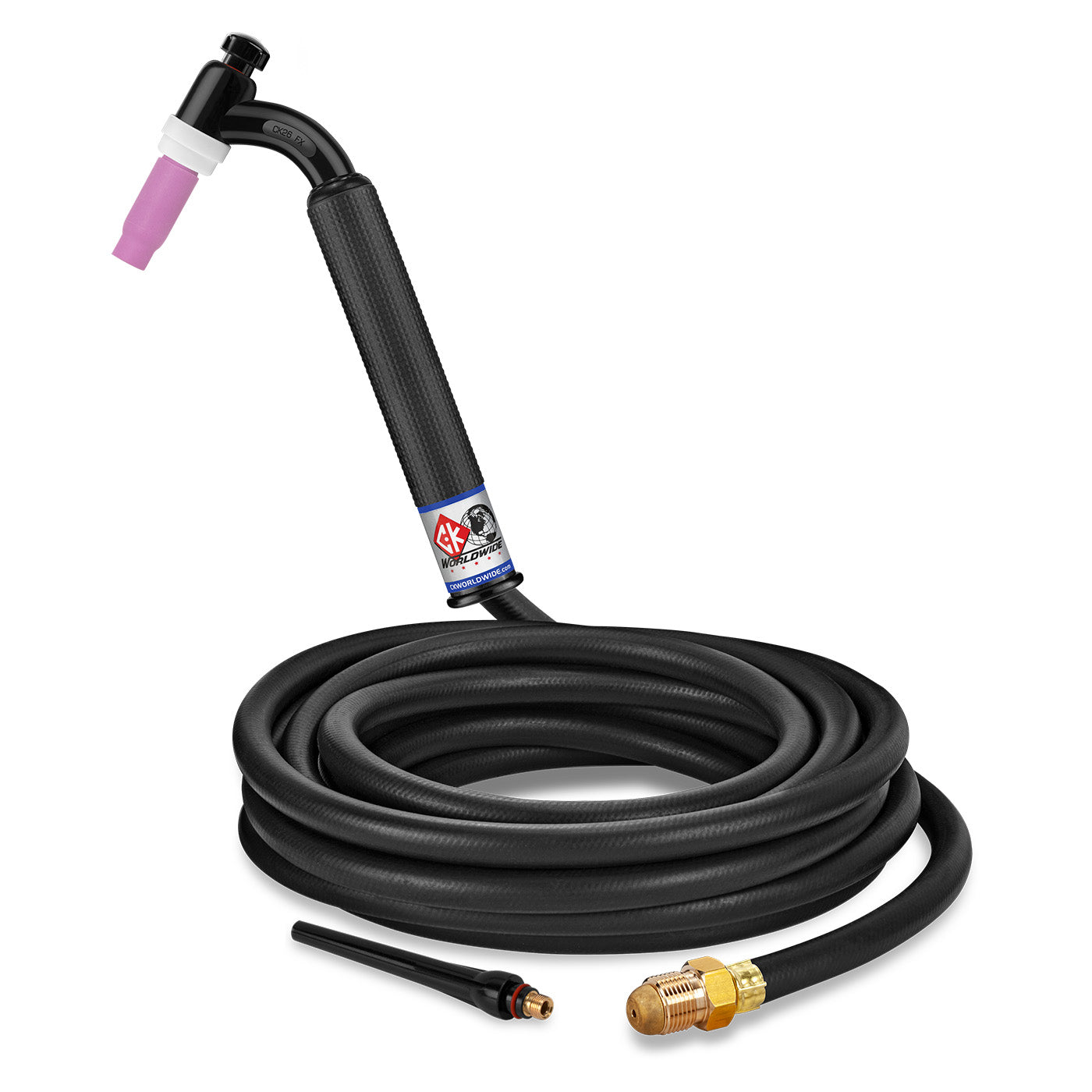

CK Worldwide CK26-25-R FX 200 Amp Flex Head TIG Torch, Gas-Cooled, 25

The CK26 flex head TIG torch delivers professional-grade performance with 40-degree articulation for precision welding in tight spaces. Rated at 200 amp ACHF or DCSP @ 100% duty cycle, this gas-cooled torch provides reliable operation for demanding fabrication work.

Built with CK Worldwide's signature flex head technology, this torch offers superior maneuverability while maintaining the durability expected in production environments. The 25-foot standard cable assembly features 7/8" x 14RH power connections and weighs just 7-1/2 oz (212g) at 9-5/8" (24.4cm) overall length.

• 200 amp rating at 100% duty cycle for continuous operation
• 40-degree flex head articulation in all directions
• Gas-cooled design for maximum heat dissipation
• 25-foot cable length for extended reach applications
• One-piece cable construction reduces connection points
• No valve configuration for streamlined operation
• Compatible with 3 Series consumables for standardized inventory

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300S — Short Back Cap
• 300L — Long Back Cap
• 4GHS — Heat Shield for gas lens applications

The CK26-25-R FX accepts standard 3 Series consumables and integrates seamlessly with existing shop inventory. Compatible with most TIG welding machines using standard power cable connections, making it ideal for aluminum, stainless steel, and exotic alloy applications where precise arc control is critical.
