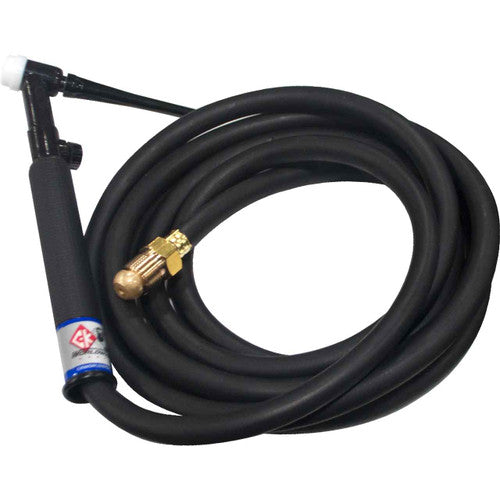

CK Worldwide CK26V-12-R FX 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5

The CK26V-12-R FX delivers precision TIG welding with its distinctive 40-degree flex head and integrated gas valve, allowing welders to access tight spaces while maintaining complete gas flow control at their fingertips.

This professional-grade torch features CK Worldwide's signature flex head design that pivots in any direction, making it ideal for complex fabrication work where rigid torches cannot reach. The built-in valve provides instant gas flow adjustment without returning to the machine, enhancing productivity in production environments.

• 200 amp rating at 100% duty cycle on AC high frequency or DC straight polarity
• Gas-cooled design optimized for maximum heat dissipation
• 40-degree flex head articulates in all directions for superior joint access
• Integrated gas valve on handle for precise flow control
• 12.5-foot cable length with standard 1-piece configuration
• 7/8" x 14RH power connections for reliable electrical contact
• Compact head dimensions — 9-5/8" length, 7-1/2 oz weight
• Compatible with 3 Series consumables for easy parts availability

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 300S — Short Back Cap

The CK26V series is engineered for demanding shop environments where versatility and control are paramount. Its gas-cooled design makes it suitable for extended welding sessions on stainless steel, aluminum, and carbon steel applications up to 200 amps.
