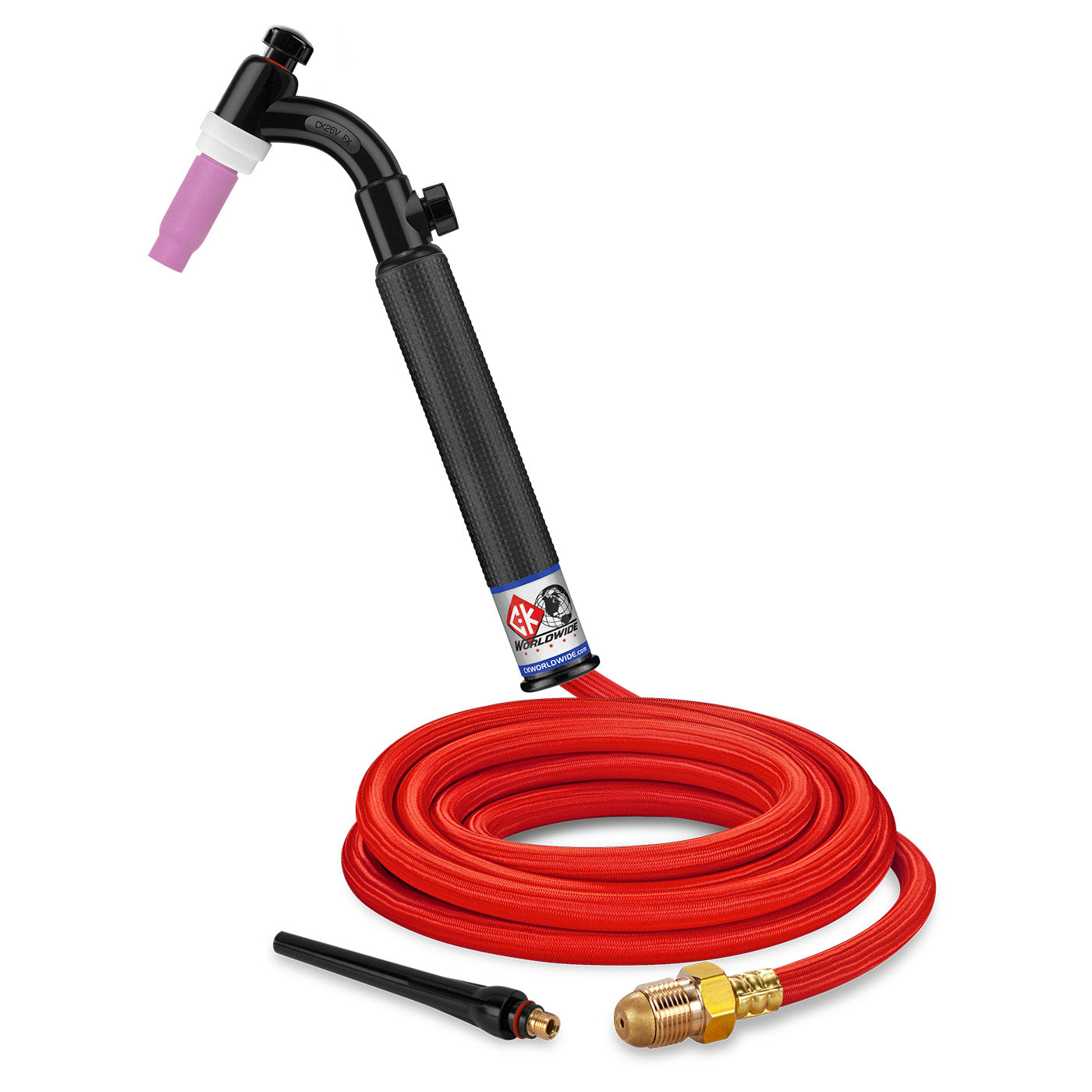

CK Worldwide CK26V-12-RSF FX 200 Amp Flex Head TIG Torch with Valve, 12.5' Gas-Cooled

The CK26V flex head TIG torch with integrated valve delivers 200 amp AC/DC welding capacity at 100% duty cycle with CK Worldwide's signature 40-degree articulating head for enhanced access in tight joints. The integrated valve provides fingertip gas flow control without reaching for remote controls, while superflex cables maximize maneuverability around the workspace.

• 200 amp rating on AC high frequency or DC straight polarity at 100% duty cycle
• Flex head design articulates 40 degrees in any direction for improved joint access
• Integrated valve on handle for convenient gas flow control
• Gas-cooled construction optimized for heat dissipation
• 12.5 foot superflex cables with 7/8" x 14RH power cable connections
• 3 Series head accessories compatibility for wide consumable selection
• Torch length: 9-5/8" (24.4cm), Weight: 7-1/2 oz (212gm)

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup (5/16")
• 3A6 — #6 Alumina Cup (3/8")

This torch accepts standard 3 Series consumables and works with most Miller, Lincoln, and ESAB TIG welders equipped with standard 7/8" x 14RH torch connections. The valve-equipped handle reduces operator fatigue during long welding sessions by eliminating the need for foot pedal gas control in many applications.
