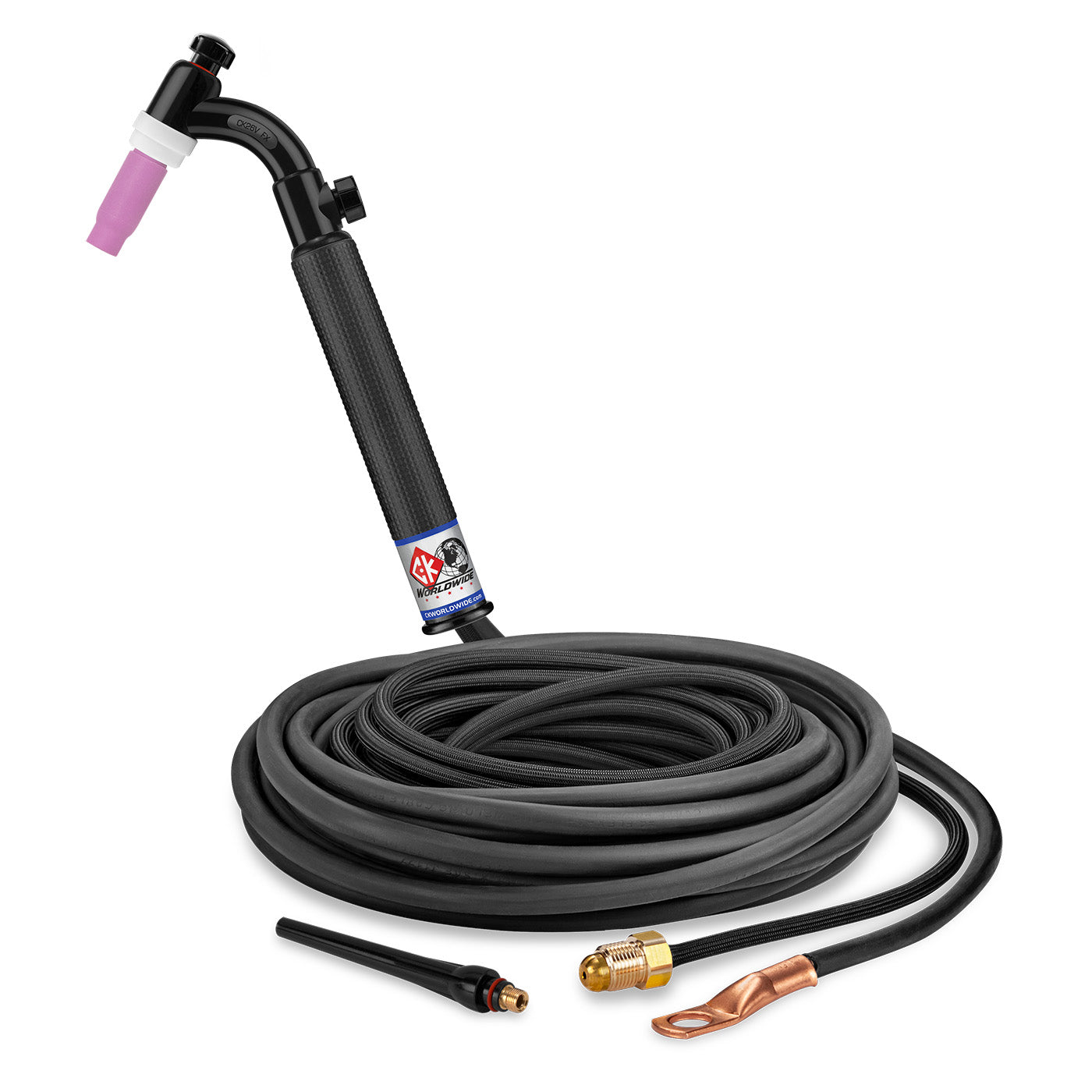

CK Worldwide CK26V-25-2SF FX - 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25

The CK26V flex head TIG torch delivers precision welding with unmatched maneuverability — featuring a 40-degree articulating head and integrated gas valve for complete control. This 200-amp gas-cooled torch maintains 100% duty cycle performance in demanding production environments.

• 200 amp AC high frequency or DC straight polarity at 100% duty cycle
• Flex head design — 40 degrees of movement in any direction
• Integrated gas valve on handle for precise flow control
• 25-foot Superflex cables for maximum flexibility and reduced fatigue
• 2-piece cable design — separate power and gas/water lines
• Gas-cooled system for optimal heat dissipation
• 9-5/8" overall length with 7-1/2 oz balanced weight
• 7/8" x 14RH power cable connections
• CK26 series — uses 3 series head accessories

Compatible Consumables

• 3C040 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 300S — Short Back Cap

Ideal for precision work requiring frequent positioning changes, from aerospace components to custom fabrication. The flex head eliminates torch repositioning while the valve control allows instant gas flow adjustment without returning to the machine panel. Compatible with all CK 3-series consumables and accessories.
