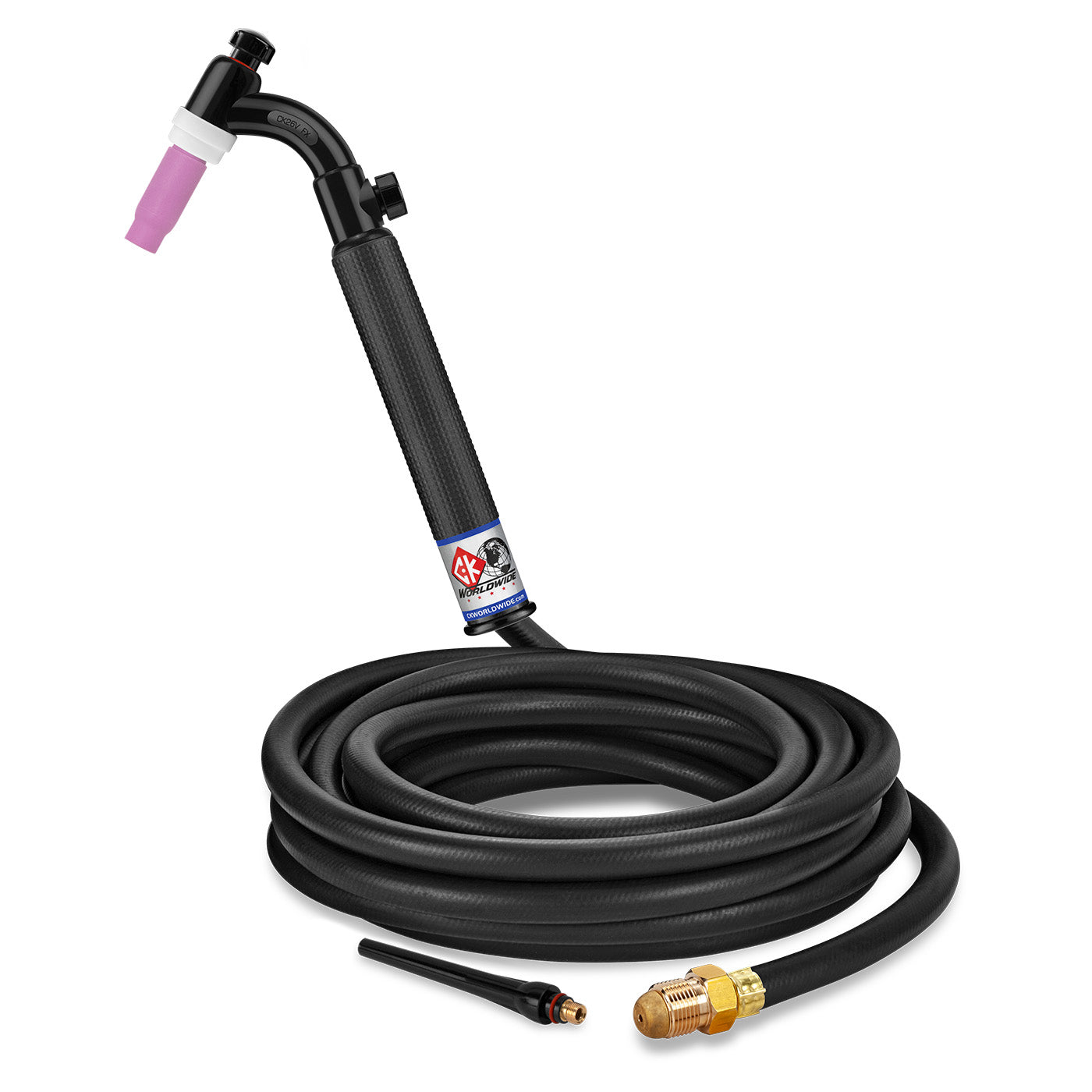

CK Worldwide CK26V-25-R FX 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25

The CK26V-25-R FX delivers 200-amp performance with CK Worldwide's signature flex head design, providing 40 degrees of articulation in any direction for superior access in tight welding spaces. This gas-cooled torch combines reliable thermal management with an integrated gas valve for precise flow control directly at the handle.

Built for demanding fabrication work, this torch features 100% duty cycle rating at full amperage on both AC high frequency and DC straight polarity. The 25-foot standard cable configuration provides excellent reach for shop and field applications, while the flexible head design reduces operator fatigue during extended welding sessions.

• 200 amp rating at 100% duty cycle (ACHF or DCSP)
• Flex head design — 40-degree articulation in all directions
• Integrated gas valve for handle-mounted flow control
• Gas-cooled thermal management system
• 25-foot standard cables (7.6m) with 1-piece construction
• 9-5/8" overall length (24.4cm), 7-1/2 oz weight (212g)
• 7/8" x 14RH power cable connections
• 3 Series head accessory compatibility

Compatible Consumables

• 300S — Short Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup (5/16")
• 3A6 — #6 Alumina Cup (3/8")
• 3A8 — #8 Alumina Cup (1/2")
• 4GHS — Heat Shield (for gas lens setup)

This torch accepts standard 3 Series consumables and can be upgraded with 4 Series gas lens accessories for improved gas coverage and tungsten extension capabilities. Compatible with CK Worldwide's comprehensive line of tungsten electrodes, gas saver kits, and accessory packages for complete welding solutions.
