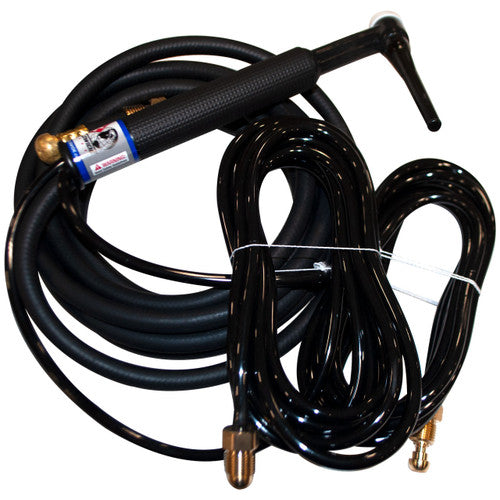

CK Worldwide CK3512 - 400 Amp Water-Cooled TIG Torch, Rigid Head, 12.5' Standard Cables

The CK3512 400 Amp Rigid Head TIG Torch delivers professional-grade performance for demanding fabrication work, featuring water cooling with Max Flow technology for continuous operation at 100% duty cycle.

This heavy-duty torch handles the most challenging welding applications with its rigid head design providing exceptional arc stability and precise control. The water-cooled system ensures consistent performance during extended welding sessions, while the 12.5-foot standard cable provides ample reach for shop and field work.

• 400 Amp rating at 100% duty cycle
• Water-cooled design with Max Flow technology
• Rigid head construction for maximum stability
• 12.5-foot standard cables for versatile positioning
• No valve configuration for streamlined operation
• 3-piece cable assembly for easy maintenance
• Compatible with ACHF and DCSP welding processes

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Ideal for structural welding, heavy fabrication, and industrial maintenance where consistent high-amperage performance is critical. The torch uses standard 3 Series consumables and is compatible with CK Worldwide adapters and cable assemblies for flexible machine connections.
