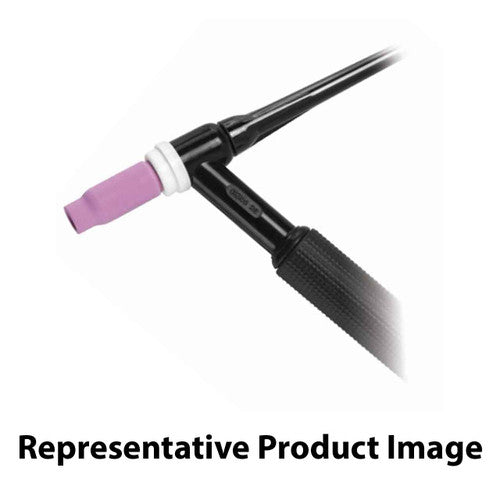

CK Worldwide CK3525SF 400 Amp Water-Cooled TIG Torch with Rigid Head and 25' Super-Flex Cables

The CK Worldwide CK3525SF delivers 400 amp capacity at 100% duty cycle for demanding TIG welding applications. This water-cooled rigid head torch features Max Flow technology and 25-foot SuperFlex cables for enhanced maneuverability in heavy-duty fabrication work.

Built for professional welders who need reliable performance under continuous use, this torch combines CK's proven rigid head design with advanced cooling technology. The valve-free configuration provides streamlined operation while maintaining precise arc control for critical welds.

• Amperage Rating: 400 amp ACHF or DCSP at 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Rigid for maximum stability and precision
• Cable Length: 25 feet SuperFlex for superior flexibility
• Cable Configuration: 3-piece construction
• Thread Pattern: 3/8" x 32 (3 Series compatibility)
• Overall Length: 9-1/2" (24.1cm)
• Weight: 6.5 oz (184gm)

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

Compatible with CK Worldwide 3 Series torch consumables and designed for use with CK, TL, FL, and CWH series welding machines. The rigid head construction makes this torch ideal for precision work on heavy plate and structural applications where arc stability is critical.
