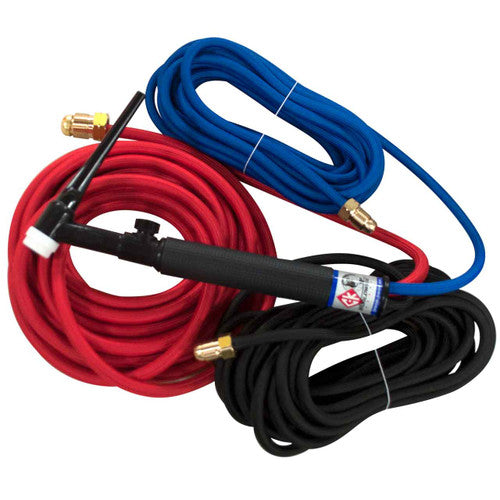

CK Worldwide CK3525VSF FX - 400 Amp Flex Head TIG Torch with Valve, Water-Cooled, 25' Super-Flex

The CK Worldwide CK3525VSF FX delivers 400 amp capacity at 100% duty cycle with signature flex head technology that provides 40-degree articulation in any direction. This water-cooled TIG torch combines maximum amperage capability with enhanced maneuverability for demanding fabrication work.

Built with CK's Max Flow cooling technology and 25-foot superflex cables, this torch maintains optimal operating temperatures while providing exceptional cable flexibility. The integrated valve on the handle allows precise gas flow control without returning to the machine, improving efficiency during complex welding sequences.

• 400 amp ACHF/DCSP @ 100% duty cycle
• Flex head design — 40-degree articulation in any direction
• Water-cooled with Max Flow technology
• 25-foot superflex cables for maximum flexibility
• Integrated gas valve on handle for flow control
• 3-piece cable assembly for serviceability
• 3 Series head accessories — standard 3/8" x 32 thread pattern
• Overall length: 9-1/2" (24.1cm)
• Weight: 6.5 oz (184gm)

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Compatible with all 3 Series consumables and accessories. The 3/8" x 32 thread pattern ensures compatibility with standard alumina cups, gas lens setups, and collet systems. Ideal for heavy-duty fabrication, pipe welding, and precision TIG applications requiring maximum amperage with enhanced torch control.
