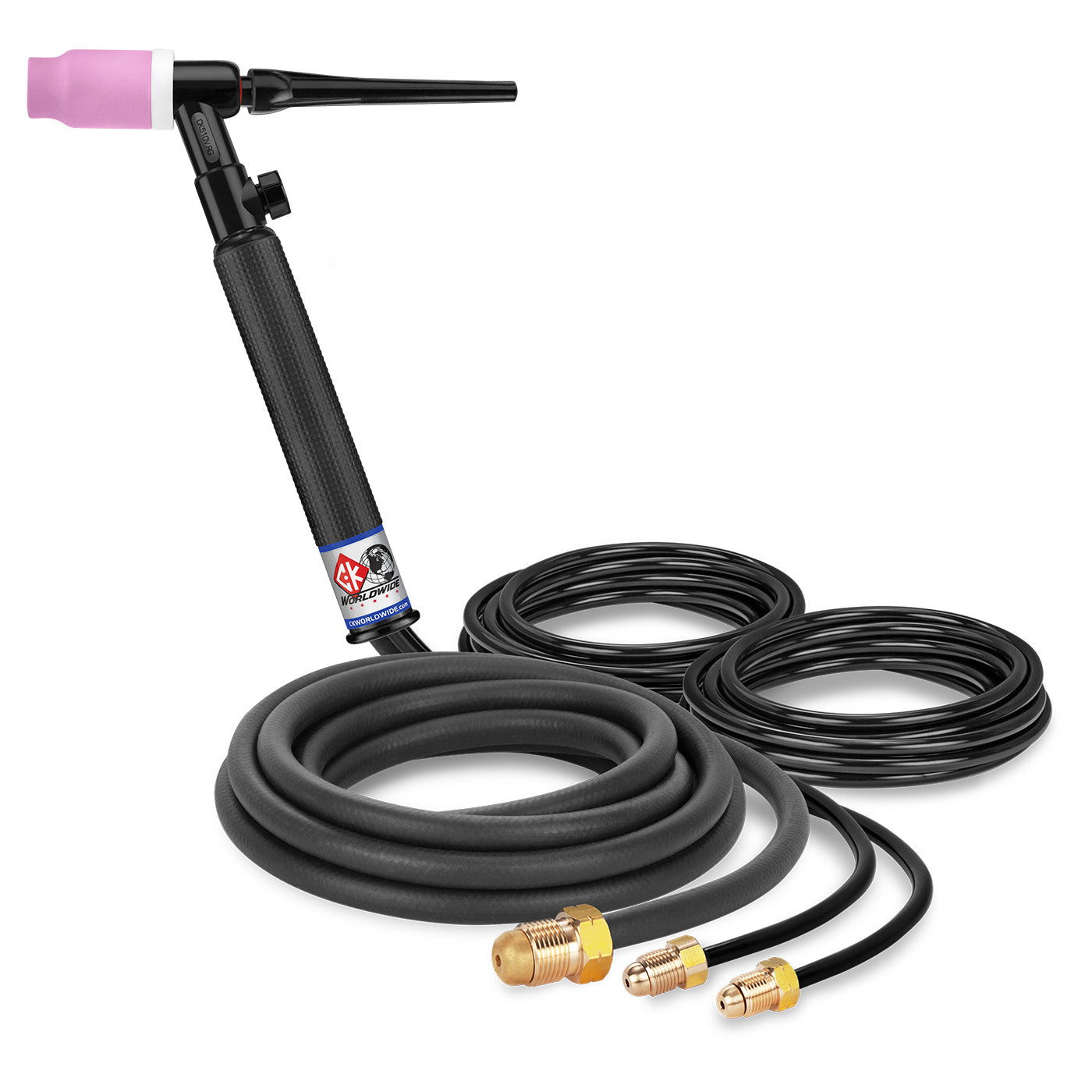

CK Worldwide CK5112V - 500 Amp Water-Cooled TIG Torch with Valve, Rigid Head, 12.5

The CK510V delivers 500 amp capacity at 100% duty cycle in the world's smallest 500-amp TIG torch package. This water-cooled rigid head torch features an integrated valve for precise gas flow control directly at the handle, eliminating the need for remote gas control in many applications.

Built with CK Worldwide's Max Flow cooling technology, this torch maintains optimal operating temperatures during extended high-amperage welding sessions. The rigid head design provides superior arc stability and precise tungsten positioning for critical welds requiring maximum control.

• Amperage Rating: 500 amp AC high frequency or DC straight polarity at 100% duty cycle
• Head Style: Rigid with integrated gas valve
• Cooling: Water-cooled with Max Flow technology
• Cable Length: 12.5 feet standard 3-piece cable assembly
• Tungsten Compatibility: 0.020" to 1/4" (0.5mm to 6.4mm) electrodes
• Weight: 6.75 oz (191g)
• Overall Length: 9.25 inches (23.5cm)
• Thread Pattern: 3/8" x 32 for 3 Series accessories

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Compatible with all CK Worldwide 3 Series and 51 Series accessories, making this torch ideal for fabrication shops requiring versatility across multiple tungsten sizes and cup configurations for diverse welding applications.
