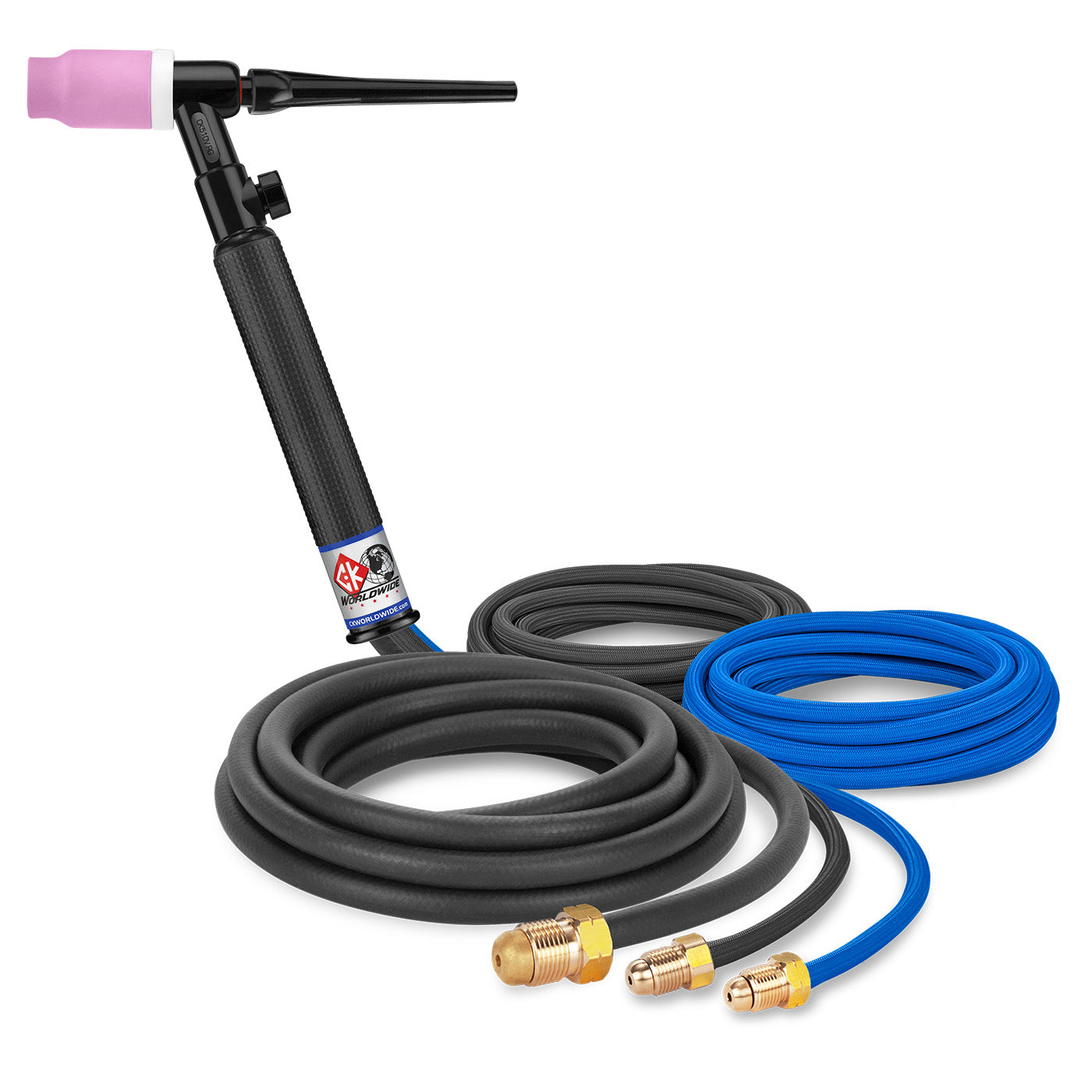

CK Worldwide CK5112VSF 500 Amp Water-Cooled TIG Torch with Valve, 12.5' SuperFlex Cable

The CK5112VSF delivers maximum precision for demanding welding applications with its rigid head design and integrated valve control for precise gas flow adjustment. Built to handle 500 amperage at 100% duty cycle, this water-cooled TIG torch features CK's Max Flow cooling technology and SuperFlex cables for enhanced maneuverability in tight spaces.

This torch represents the smallest 500 amp torch available, making it ideal for high-amperage work where space constraints are a factor. The rigid head configuration provides exceptional arc stability and control, while the handle-mounted valve allows real-time gas flow adjustment without interrupting your welding sequence.

• Amperage Rating: 500 amp ACHF or DCSP @ 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Rigid with integrated valve
• Cable Length: 12.5 feet SuperFlex cables
• Tungsten Capacity: .020" to 1/4" (0.5mm to 6.4mm)
• Overall Length: 9-1/4" (23.5cm)
• Weight: 6-3/4 oz (191gm)
• Thread Pattern: 3/8" x 32

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Back Cap

Compatible with CK's 3 Series and 51 Series head accessories, this torch integrates seamlessly with standard CK consumables and replacement parts. The SuperFlex cable configuration includes standard power cable with flexible argon and water hoses for superior handling characteristics in production welding environments.
