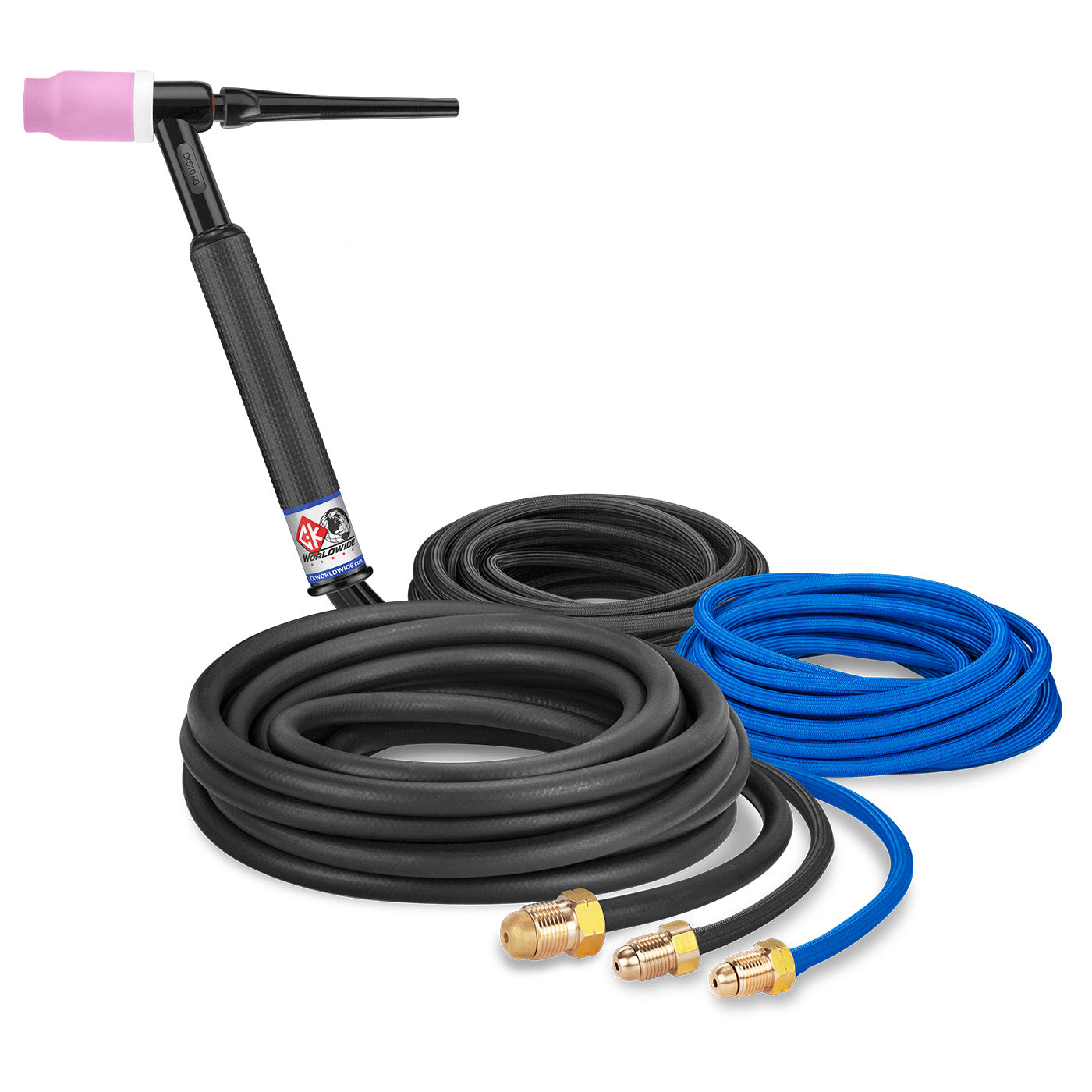

CK Worldwide CK5125SF - 500 Amp Rigid Head TIG Torch, Water-Cooled, 12.5' SuperFlex Cables

The CK510 series delivers maximum tungsten capacity in the world's smallest 500 amp TIG torch package, featuring a rigid head design for precise control and Max Flow water-cooling technology for continuous 100% duty cycle operation.

This professional-grade torch accommodates tungsten electrodes from .020" to 1/4" (0.5mm to 6.4mm) and utilizes Superflex cable technology for enhanced flexibility in tight welding positions. The streamlined design omits the valve for reduced weight and improved maneuverability, while the 3-piece cable construction ensures reliable power delivery and cooling circulation.

• Amperage Rating: 500 amp ACHF or DCSP at 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Cable Length: 12.5 feet (3.8m)
• Head Style: Rigid design for stability
• Cable Type: Superflex argon and water hoses with standard power cable
• Tungsten Compatibility: .020" to 1/4" (0.5mm to 6.4mm)
• Weight: 6-3/4 oz (191gm)
• Overall Length: 9-1/4" (23.5cm)

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

The CK510 accepts both standard 3 Series and 51 Series head accessories, making it compatible with existing consumable inventories. Ideal for heavy-duty fabrication, structural welding, and high-amperage applications requiring extended arc-on time.
