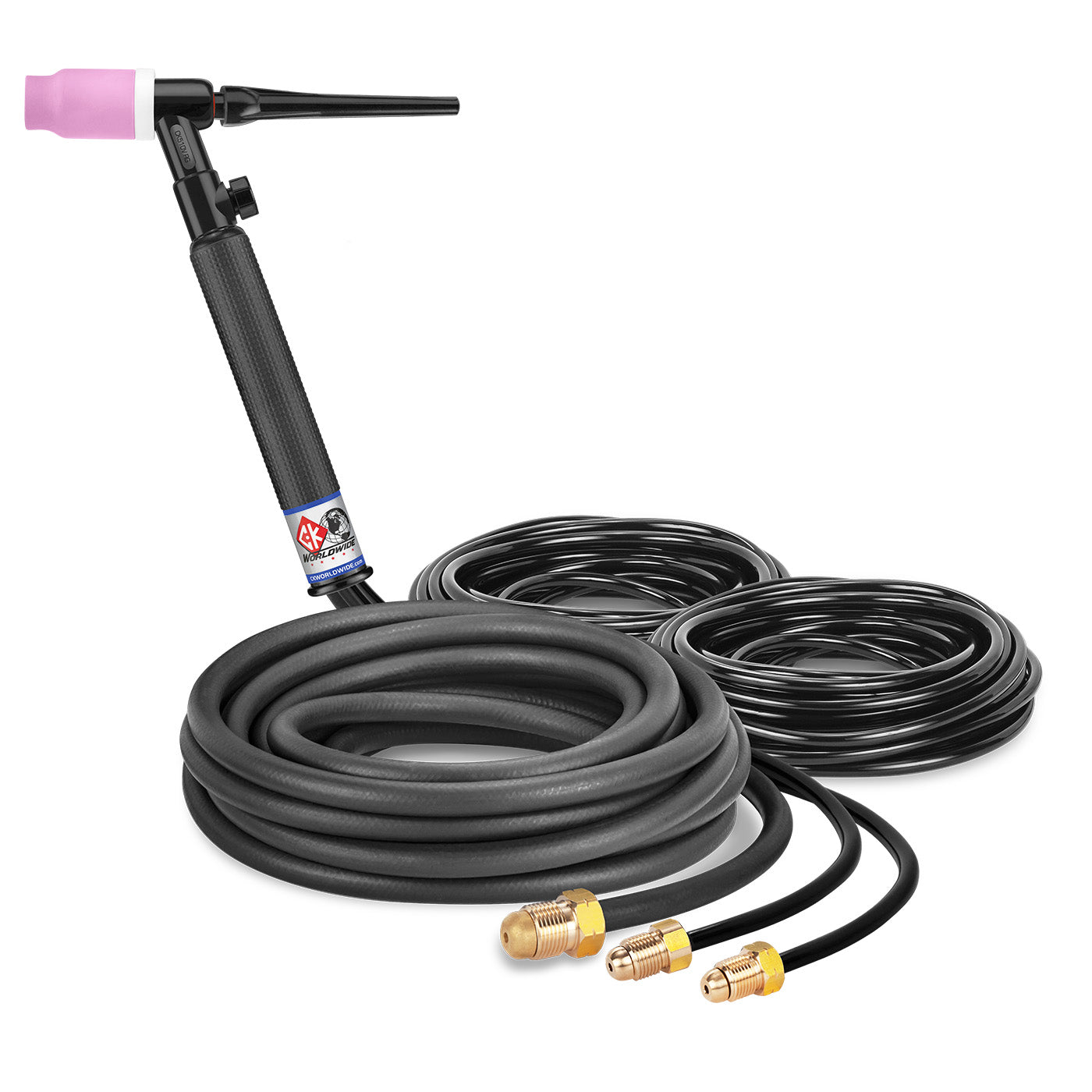

CK Worldwide CK5125V 500 Amp Water-Cooled TIG Torch with Valve, 12.5

The CK5125V delivers 500 amp capacity at 100% duty cycle with a rigid head design and integrated valve for precise gas flow control during critical welding operations. This water-cooled torch incorporates Max Flow technology to maintain optimal operating temperatures in demanding production environments.

Built for professional TIG welding applications requiring maximum power and control, this torch features a rigid head configuration that provides superior arc stability and precise tungsten positioning. The integrated valve on the handle allows welders to adjust gas flow without interrupting their work, while the water cooling system ensures consistent performance during extended welding sessions.

• Amperage Rating: 500 amp ACHF or DCSP at 100% duty cycle
• Cooling Type: Water-cooled with Max Flow technology
• Head Style: Rigid with integrated valve
• Cable Length: 12.5 feet standard configuration
• Tungsten Compatibility: 0.020" to 1/4" (0.5mm to 6.4mm) diameter
• Overall Length: 9-1/4" (23.5cm)
• Weight: 6-3/4 oz (191gm)
• Thread Pattern: 3/8" x 32 for 3 Series accessories

Compatible Consumables

• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

This torch is compatible with the complete 3 Series and 51 Series accessory systems, making it suitable for heavy-duty fabrication, pipeline welding, and industrial maintenance applications where maximum amperage and precise control are essential.
