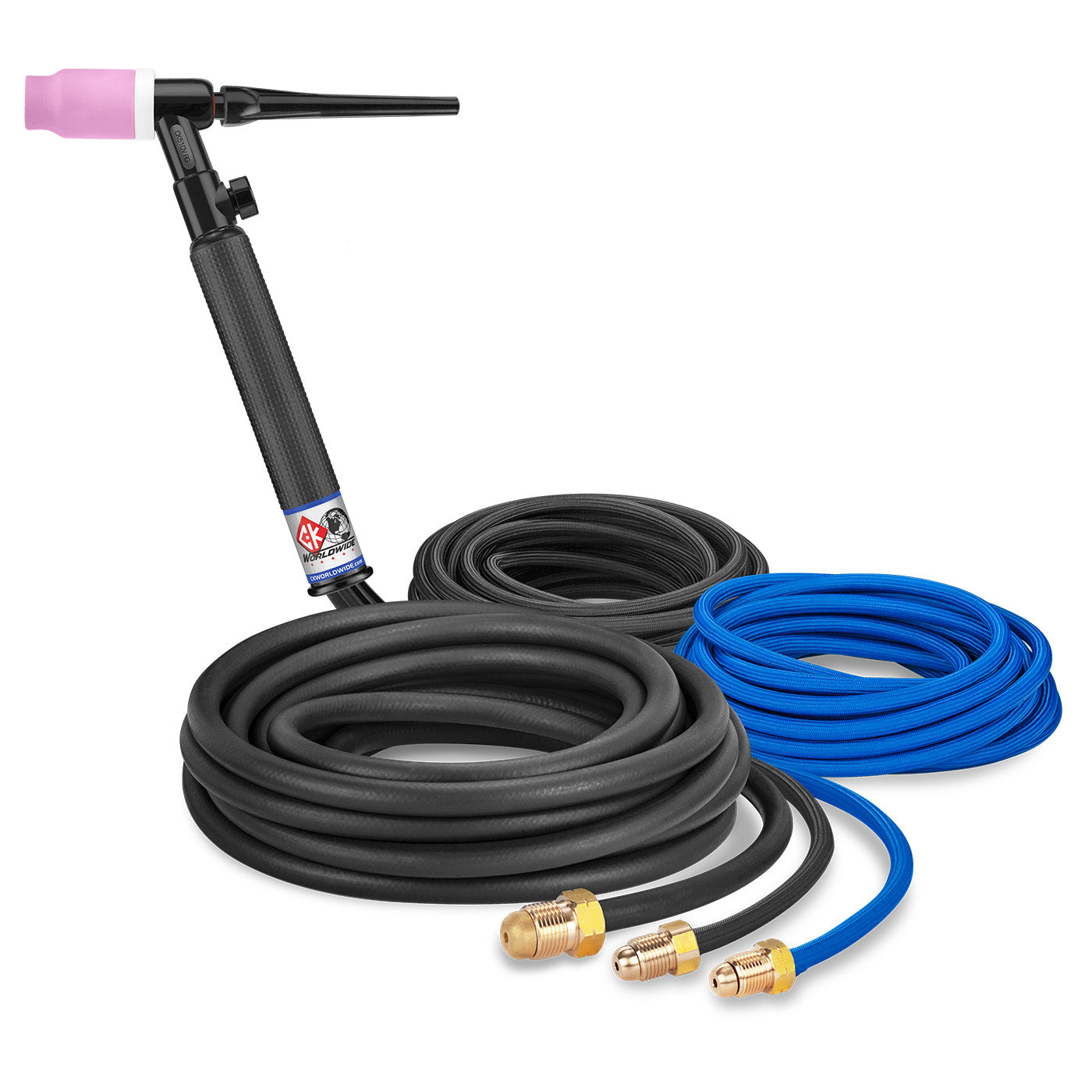

CK Worldwide CK5125VSF 500 Amp Water-Cooled TIG Torch with Valve - 12.5' SuperFlex

The CK510 500 Amp water-cooled TIG torch delivers maximum amperage capacity in CK's smallest 500-amp design, featuring rigid head construction with integrated valve control for precise gas flow management during heavy-duty welding applications.

Engineered for continuous operation at 500 amps ACHF or DCSP at 100% duty cycle, this torch handles tungsten electrodes from .020" to 1/4" (0.5mm to 6.4mm) for versatile welding across multiple material thicknesses. The water-cooling system with Max Flow technology maintains optimal operating temperatures during extended welding sessions. SuperFlex cables provide enhanced flexibility and maneuverability in tight spaces while maintaining durability in demanding shop environments.

• Amperage Rating: 500 amp ACHF or DCSP at 100% duty cycle
• Head Style: Rigid with integrated valve
• Cooling: Water-cooled with Max Flow technology
• Cable Length: 12.5 feet SuperFlex configuration
• Tungsten Capacity: .020" to 1/4" (0.5mm to 6.4mm)
• Weight: 6-3/4 oz (191g)
• Overall Length: 9-1/4" (23.5cm)
• Series: 3 or 51 Series head accessories

Compatible Consumables

• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Backcap

Compatible with CK's 3 Series and 51 Series consumables system, this torch integrates seamlessly with existing shop inventory and provides reliable performance for fabrication shops, maintenance facilities, and production welding operations requiring maximum amperage capacity with precise control.
