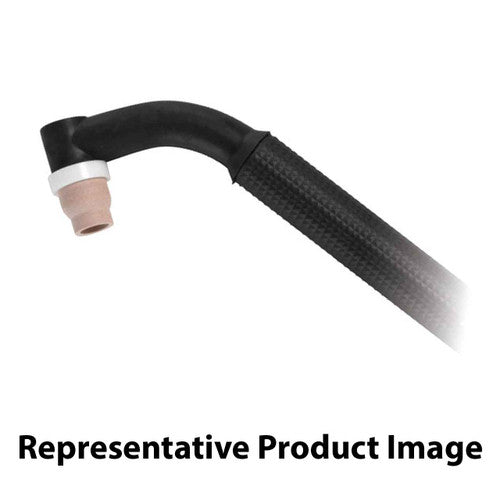

CK Worldwide CK912H 90 Amp Flex Head TIG Torch Gas-Cooled 12.5

The CK912h flex-head TIG torch delivers precision performance with 40-degree articulation for improved access in tight welding positions. Rated at 90 amps @ 100% duty cycle, this gas-cooled torch features CK Worldwide's signature flex head technology and 12.5-foot standard cables for reliable daily use.

• 90 amp rating @ 100% duty cycle for continuous operation
• 40-degree flex head articulates in any direction for enhanced maneuverability
• Gas-cooled design maximizes heat dissipation without water cooling complexity
• 12.5-foot standard cable length provides optimal reach for most applications
• Valve-less design reduces torch weight and improves balance
• Compatible with 2 Series consumables for cost-effective replacement parts
• Silicone rubber insulated torch body for durability

Compatible Consumables

• 2A4 — #4 Alumina Cup (1/4" 6.4mm)
• 2A5 — #5 Alumina Cup (5/16" 8.0mm)
• 2A6 — #6 Alumina Cup (3/8" 9.6mm)
• 2C40 — .040" Collet
• 2C116 — 1/16" Collet
• 2C332 — 3/32" Collet
• 2CB40 — .040" Collet Body
• 2CB116 — 1/16" Collet Body
• 2CB332 — 3/32" Collet Body
• 200L — Long Back Cap

This torch accommodates tungsten electrodes from .040" to 1/8" diameter and works with standard 5/16" x 24 thread pattern consumables. The flex head design makes it ideal for orbital welding, pipe work, and confined space applications where torch positioning is critical.
