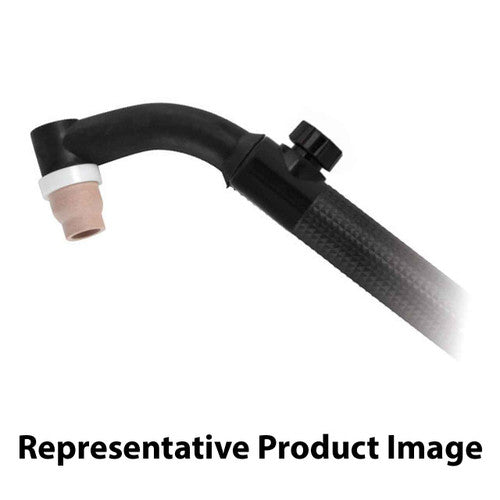

CK Worldwide CK912VH 90 Amp Flex Head TIG Torch with Valve - Gas-Cooled, 12.5

The CK912VH delivers precision TIG welding with a 40-degree articulating flex head for superior access in tight spaces. This 90-amp gas-cooled torch features an integrated valve for precise gas flow control and operates at 100% duty cycle for continuous professional applications.

Built on CK Worldwide's proven 2-series platform, this torch combines the maneuverability of the flex head with standard cable construction for reliable performance in production welding environments. The ergonomic valve placement allows for fingertip gas control without compromising torch handling.

• Amperage Rating: 90 amp @ 100% duty cycle AC/DC
• Head Style: Flex head with 40-degree articulation plus integrated valve
• Cooling Type: Gas-cooled for maximum heat dissipation
• Cable Length: 12.5 feet standard configuration
• Cable Type: Standard series 1-piece construction
• Thread Pattern: 5/16" x 24 TPI for 2-series consumables
• Overall Length: 8-1/4 inches
• Weight: 2-1/4 oz (64g)

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 2GL116 — 1/16" Gas Lens
• 2AG5 — #5 Gas Lens Cup

Compatible with all 2-series consumables and accessories, making this torch ideal for fabrication shops requiring flexible positioning with precise gas flow control. The 12.5-foot cable length provides excellent reach for most welding stations while maintaining superior arc characteristics.
