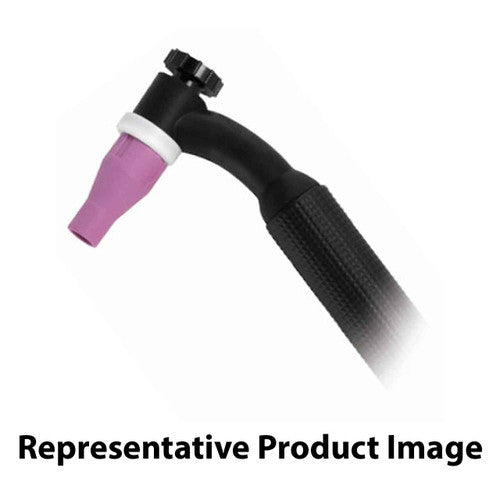

CK Worldwide CKA162 FX - 200 Amp Flex Head TIG Torch, Gas-Cooled, 12.5 ft

CK Worldwide CKA162 FX delivers professional-grade TIG welding performance with 200-amp capacity at 100% duty cycle and signature 40-degree flex head versatility. This gas-cooled torch provides maximum heat dissipation for demanding fabrication work without the complexity of water cooling systems.

Built on CK's proven A3 Series platform, this torch features a streamlined design without gas valve for direct machine control applications. The flexible head design allows precise electrode positioning in tight spaces and complex joint configurations that would challenge rigid torches.

• 200 amp capacity — 100% duty cycle rating for continuous operation
• 40° flex head — Multi-directional positioning capability
• Gas-cooled design — Reliable heat management without water systems
• 12.5 ft cable length — Standard reach for most applications
• A3 Series compatibility — Uses industry-standard consumables
• No valve design — Streamlined operation with machine control
• Weight: 7-1/2 oz (212gm) — Comfortable for extended use
• Length: 9-3/8" (23.8cm) overall

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

Compatible with standard Dinse connectors and AIRCO-style machines. Ideal for structural welding, pipe work, and fabrication shops requiring reliable 200-amp performance with enhanced maneuverability in confined spaces.
