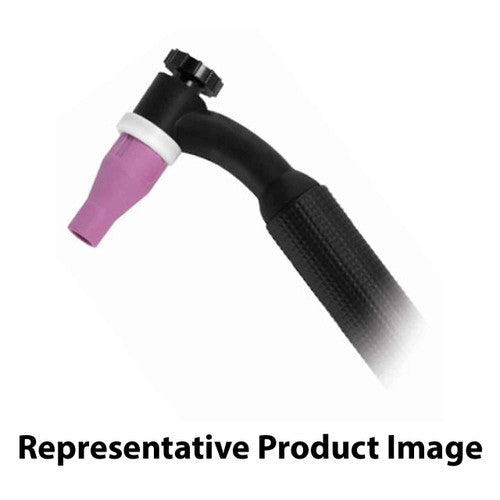

CK Worldwide CKA165 FX - 200 Amp Flex Head TIG Torch, Gas-Cooled

The CK Worldwide CKA165 FX delivers 200-amp welding capacity with the precision and versatility demanded by professional fabricators. This gas-cooled torch features CK's signature 40-degree flex head design, providing exceptional access and positioning control for complex joint geometries.

Built on the proven A3 series platform, this torch operates at 100% duty cycle for continuous production welding. The streamlined design eliminates the gas valve for reduced weight and improved maneuverability, while the 25-foot cable length provides extended reach for large assemblies and structural work.

• Amperage Rating: 200 amp AC/DC at 100% duty cycle
• Head Style: Flex head with 40° articulation in all directions
• Cooling Type: Gas-cooled for maximum portability
• Cable Configuration: 1-piece, 25 ft. (7.6m) standard cable
• Series: A3 Series Head Accessories
• Weight: 7-1/2 oz (212gm) torch head
• Overall Length: 9-3/8" (23.8cm)
• Valve: No valve (streamlined design)

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

Compatible with all standard Airco-style torch connections and CK's complete line of 3-series consumables. Ideal for precision fabrication, maintenance welding, and production applications requiring the flexibility to access tight joints and awkward positions.
