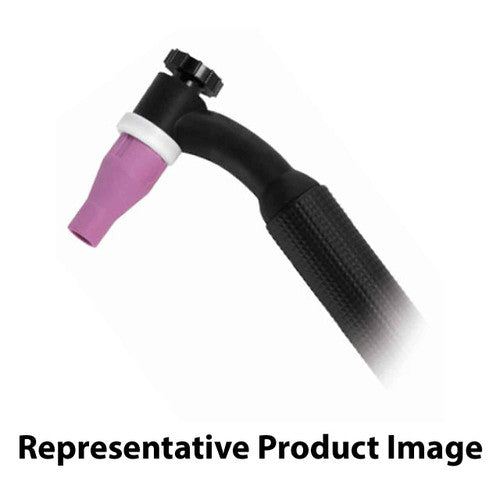

CK Worldwide CKA165N FX - 200 Amp Flex Head TIG Torch, Gas-Cooled, 25 ft

The CKA165N FX delivers precision TIG welding with CK Worldwide's signature 40-degree flex head technology, rated for 200 amps at 100% duty cycle. This gas-cooled torch combines professional-grade performance with the versatility needed for complex joint access in demanding fabrication environments.

Built on CK's proven A3 Series platform, this torch features a streamlined design without valve integration for simplified operation. The 25-foot cable length provides excellent reach while the gas-cooling system ensures optimal heat dissipation during extended welding sessions.

• 200 amp rating at 100% duty cycle DCSP/ACHF
• 40-degree flex head articulation in any direction
• Gas-cooled design for maximum heat management
• 25-foot standard cable configuration
• 9-3/8" torch length with 7-1/2 oz weight
• A3 Series head accessories compatibility
• Two-piece cable design for enhanced flexibility
• DINSE connector compatibility

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

Ideal for fabricators requiring precise control in tight spaces, this torch excels in structural welding, pipe work, and general fabrication where joint access angles vary. Compatible with standard DINSE connections and CK's complete A3 Series consumable line.
