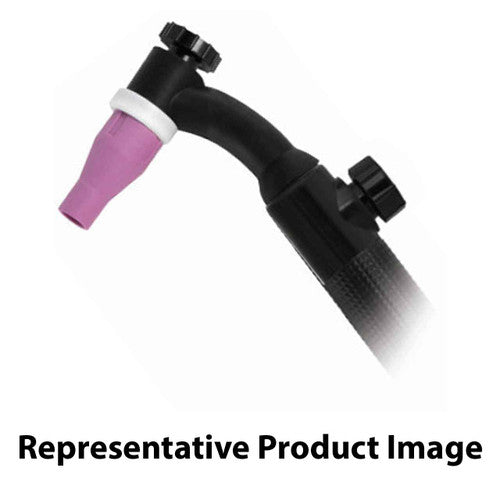

CK Worldwide CKA165VN FX - 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25 ft

CK Worldwide's CKA165VN FX delivers 200-amp TIG welding capacity with the versatility of a flex head design and integrated gas control valve. The signature flex head provides 40 degrees of articulation in any direction, making it ideal for complex joint configurations and tight access welding applications.

This gas-cooled torch features CK's proven A3 Series head accessories and operates at 100% duty cycle at full amperage rating. The valve-equipped handle allows precise gas flow control without returning to the welding machine, improving productivity and weld quality control.

• Amperage Rating: 200 amp DCSP/ACHF at 100% duty cycle
• Head Style: Flex head with 40° articulation capability
• Gas Control: Integrated valve on handle for precise flow adjustment
• Cable Configuration: 1-piece, 25 ft. cable length
• Weight: 7-1/2 oz (212gm) torch head
• Overall Length: 9-3/8" (23.8cm)
• Cooling Type: Gas-cooled for maximum heat dissipation
• Series: A3 Series head accessories compatible

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

Compatible with standard Dinse and adapter connections, this torch excels in production welding environments requiring frequent position changes and precise gas flow control. The robust construction and proven CK consumable system ensure reliable performance across steel, stainless steel, and aluminum applications.
