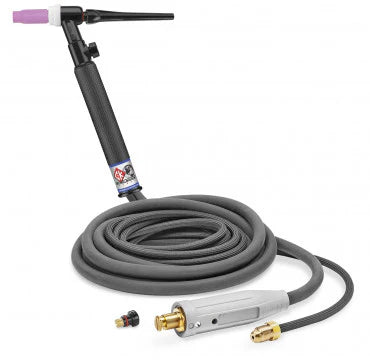

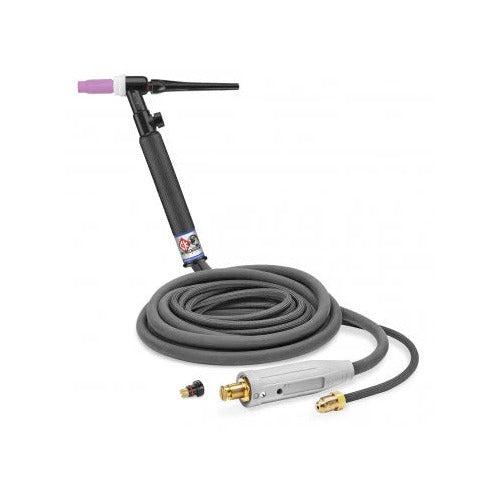

CK Worldwide CK26HD CKCS26V252RGGI 300 Amp Water-Cooled TIG Torch with Rigid Head and Valve, 25

The CK26HD delivers professional-grade TIG welding performance with 300 amp capacity at 60% duty cycle, featuring a rigid head design and integrated gas valve for precise arc control. This water-cooled torch combines heavy-duty construction with CK's proven reliability for demanding production environments.

Built on CK's 3 Series platform, this torch features a larger gauge power cable with separate SuperFlex gas/argon line for enhanced durability and flexibility. The rigid head configuration provides maximum stability for critical welds, while the handle-mounted valve gives operators direct gas flow control without reaching for remote controls.

• Amperage Rating: 300 amp ACHF or DCSP at 60% duty cycle
• Cooling: Water-cooled with Max Flow technology
• Head Style: Rigid with integrated gas valve
• Cable Length: 25 feet standard configuration
• Series: CK26HD Heavy Duty platform
• Power Cable: Large gauge with separate SuperFlex gas line
• Duty Cycle: 100% at reduced amperage for continuous operation
• Compatibility: Standard CK 3 Series consumables

Compatible Consumables

• 2A5GS — #5 Alumina Gas Saver Cup
• 2A6GS — #6 Alumina Gas Saver Cup
• 2A7GS — #7 Alumina Gas Saver Cup
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB18 — 1/8" Collet Body
• CL116 — 1/16" Collet
• CL332 — 3/32" Collet
• CL18 — 1/8" Collet
• TAS040GS — #4 Gas Lens Adapter

Ideal for structural welding, pipe work, and heavy fabrication where consistent high-amperage performance is essential. The rigid head design eliminates flex during precision work, making it particularly suitable for overhead and vertical welding positions.
