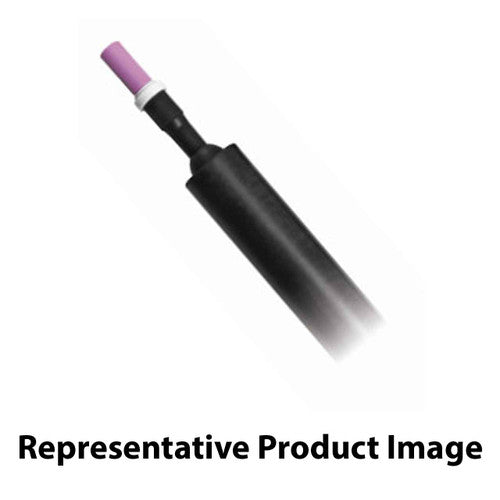

CK Worldwide CKM2325 300 Amp Water-Cooled TIG Torch, Rigid Head, 25 ft Standard Cables

This CK Worldwide CKM2325 barrel-style TIG torch delivers 300 amps at 100% duty cycle with water cooling for demanding production welding. The rigid head design provides stable arc control and precise tungsten positioning for consistent weld quality on thick steel, stainless steel, and aluminum applications.

Built with a 1-3/8" (35mm) O.D. barrel construction and 25-foot standard cable assembly, this torch features CK's Max Flow cooling technology to maintain optimal operating temperatures during extended welding sessions. The valve-less design streamlines torch operation while reducing weight and potential leak points.

• 300 amp capacity at 100% duty cycle
• Water-cooled with Max Flow technology
• Rigid head style for stable arc control
• 25-foot standard cables for extended reach
• 1-3/8" O.D. barrel construction
• 14" (35.6cm) overall length, 6 oz (170gm) weight
• 2 Series head accessories compatibility
• No valve design for simplified operation

Compatible Consumables

• 200L — Long Backcap
• 200M — Medium Backcap
• 200S — Short Backcap
• 2C116 — 1/16" Collet
• 2C332 — 3/32" Collet
• 2CB116 — 1/16" Collet Body
• 2CB332 — 3/32" Collet Body
• 2A5 — #5 Alumina Cup
• 2A6 — #6 Alumina Cup
• 2A8 — #8 Alumina Cup

This torch accepts 2 Series consumables and works with standard 3-piece power cable assemblies. Compatible with most TIG welders using standard Dinse or twist-lock connections for versatile shop integration.
