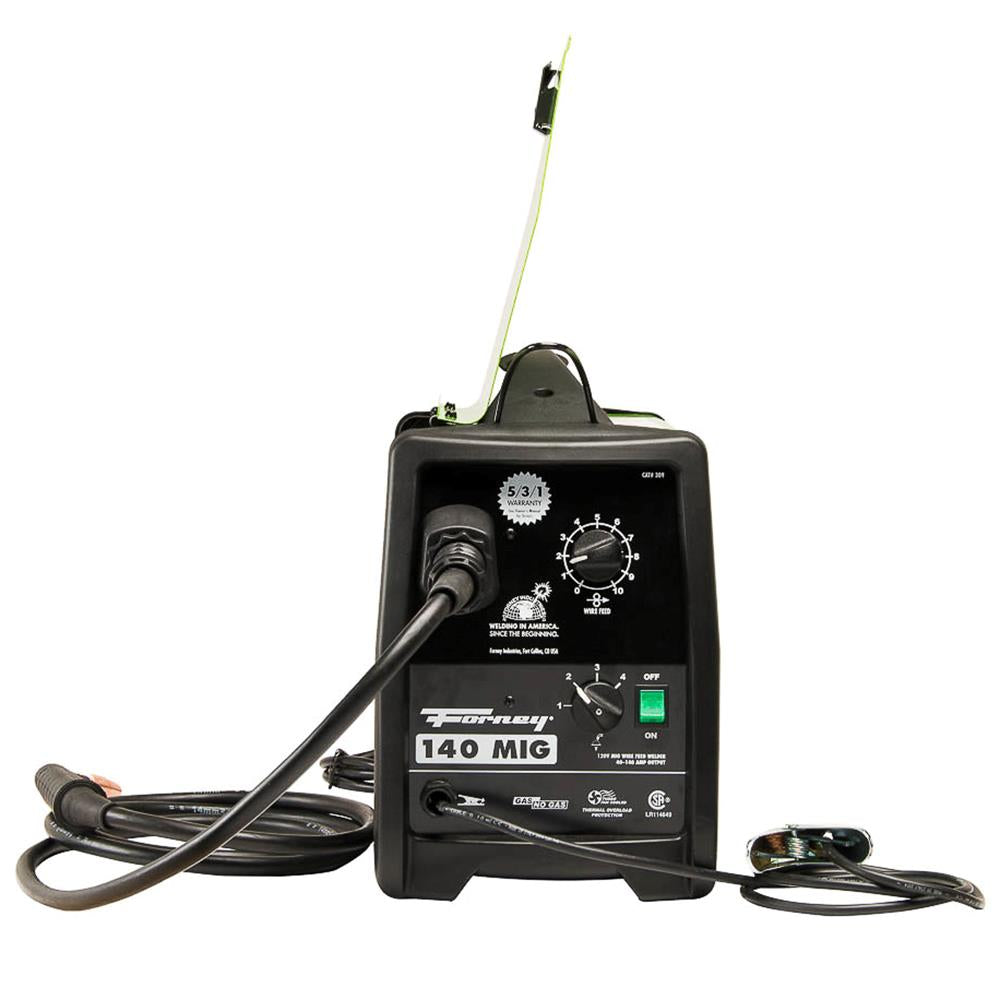

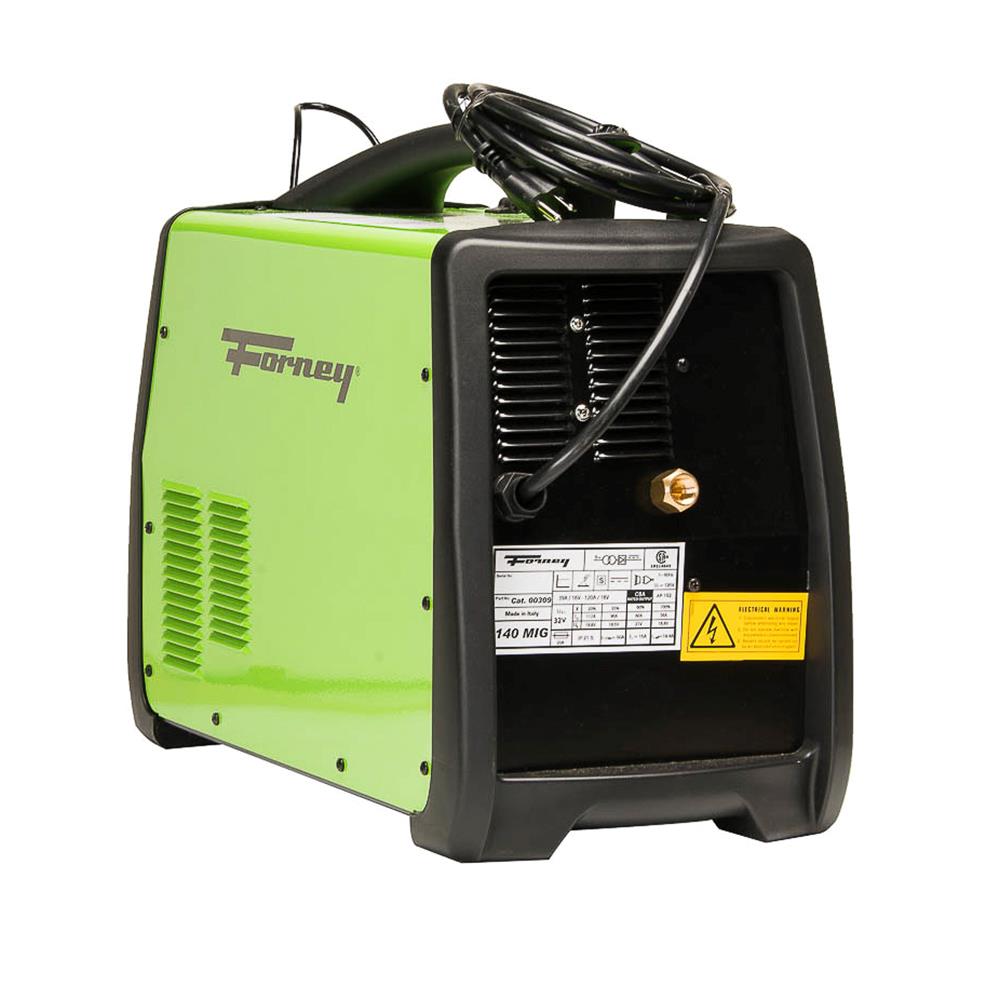

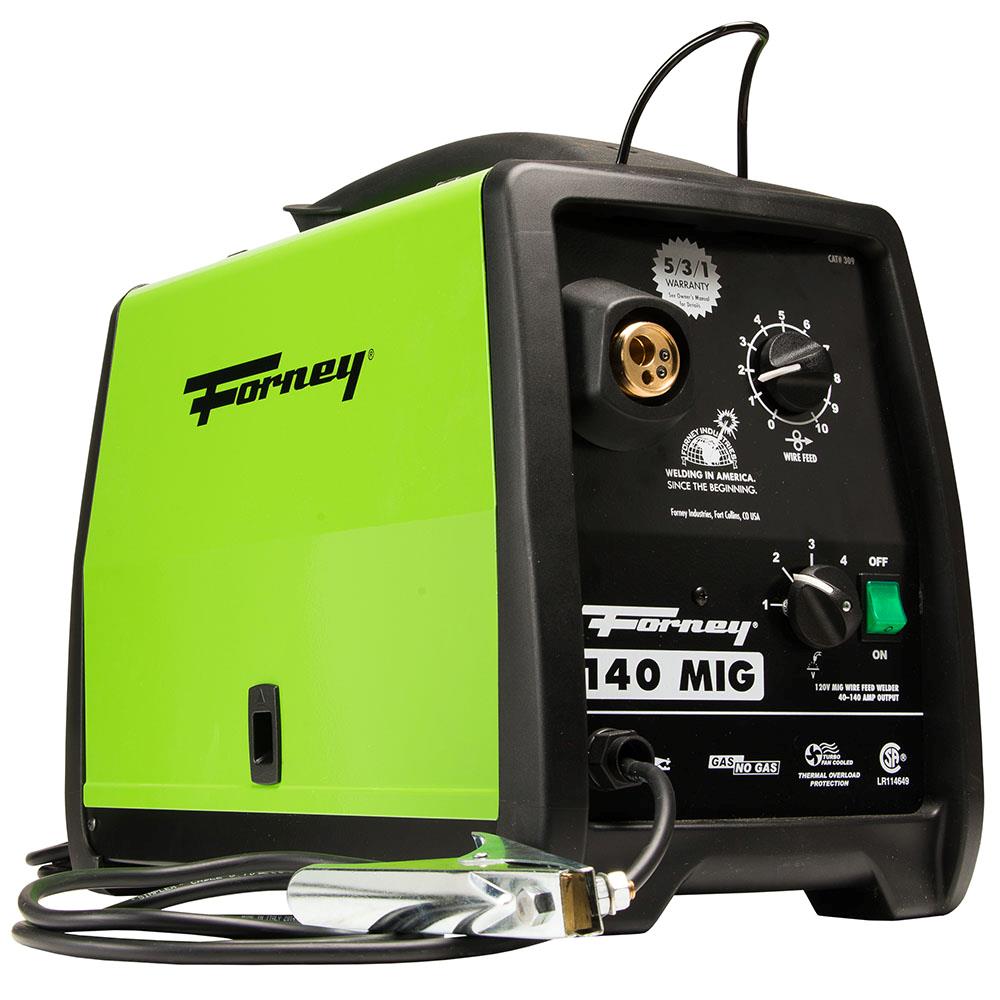

Forney 140 MIG Welder

Easy to use:

• Euro connect torch with Tweco® style consumables
• Fast disconnect to swap out torch, clean liner
• 10' MIG gun

Improved Design:

• Integrated feet
• Torch wrap included for cable organization
• Torch with built in strain relief which extends cable life
• 115A, 19.75V @ 20% Duty Cycle
• 90A, 18.5V @ 35% Duty Cycle
• 60A, 21V @ 60% Duty Cycle
• 55A, 16.75V @ 100% Duty Cycle

Power:

• High-duty cycle of 115A@20%, 90A@35%, 60A@60%, 55A@100%
• Runs off of household 120V power

Better wire feeding:

• Upgraded cast aluminum wire drive system
• Dual geared idler and drive roll with better de-spooler

More space:

• Larger cabinet for easy access to 4" (1-2 lb.) and 8" (10-11 lb.) spools

---

Applications:

• DIY
• Metal Fabrication
• Maintenance & Repair
• Farm & Ranch
• Automotive

Quick Specs:

• Processes: MIG (GMAW); Flux Cored (FCAW)
• Input Power: 120V
• Amperage Range: 30-140A
• Wire Diameter Range: .024" - .035"
• Plate Thickness Range: 24 ga. - 1/4"
• Weight: 62 lbs. out of the box
• Dimensions: 19" x 9.5" x 16.5"

---

Includes:

• MIG gun with 10' lead
• 10' ground cable & clamp
• Gas hose and regulator

Warranty: Protected under our industry leading 5/3/1 Warranty.
