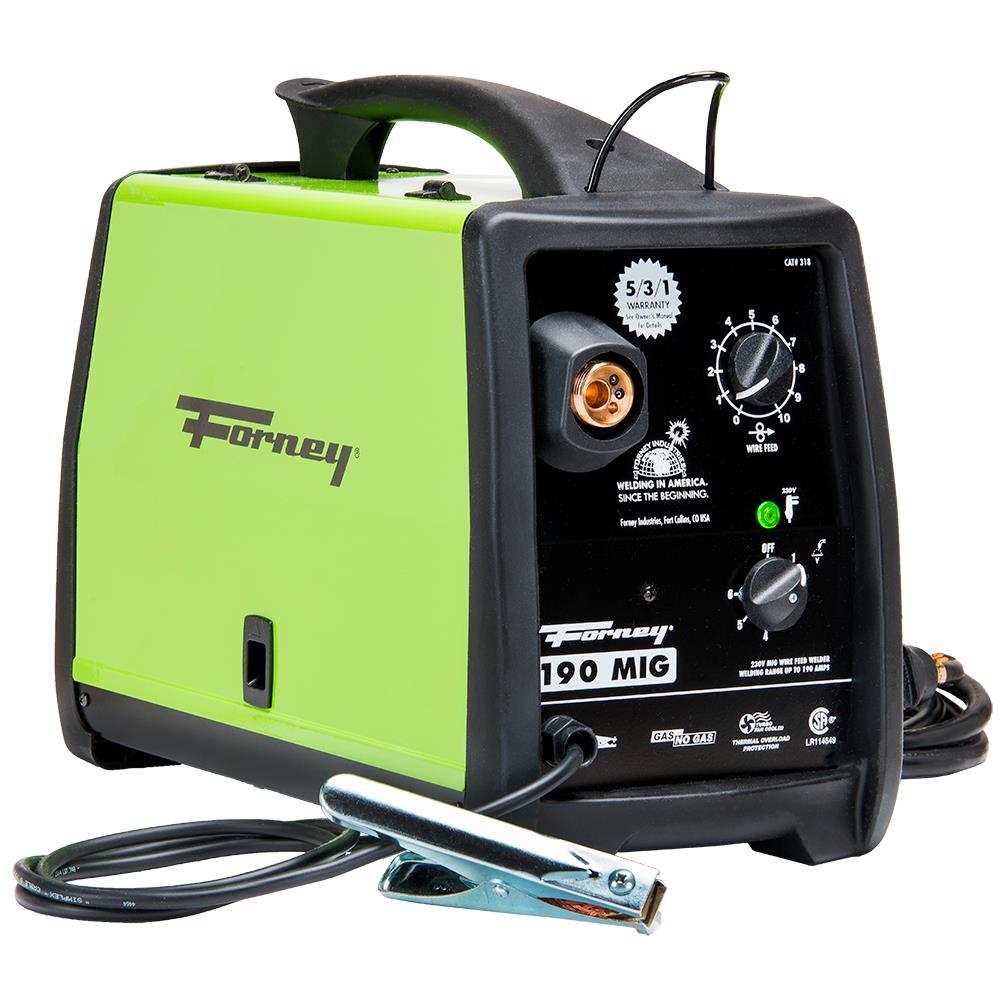

Forney 190 MIG Welder

Easy to use:

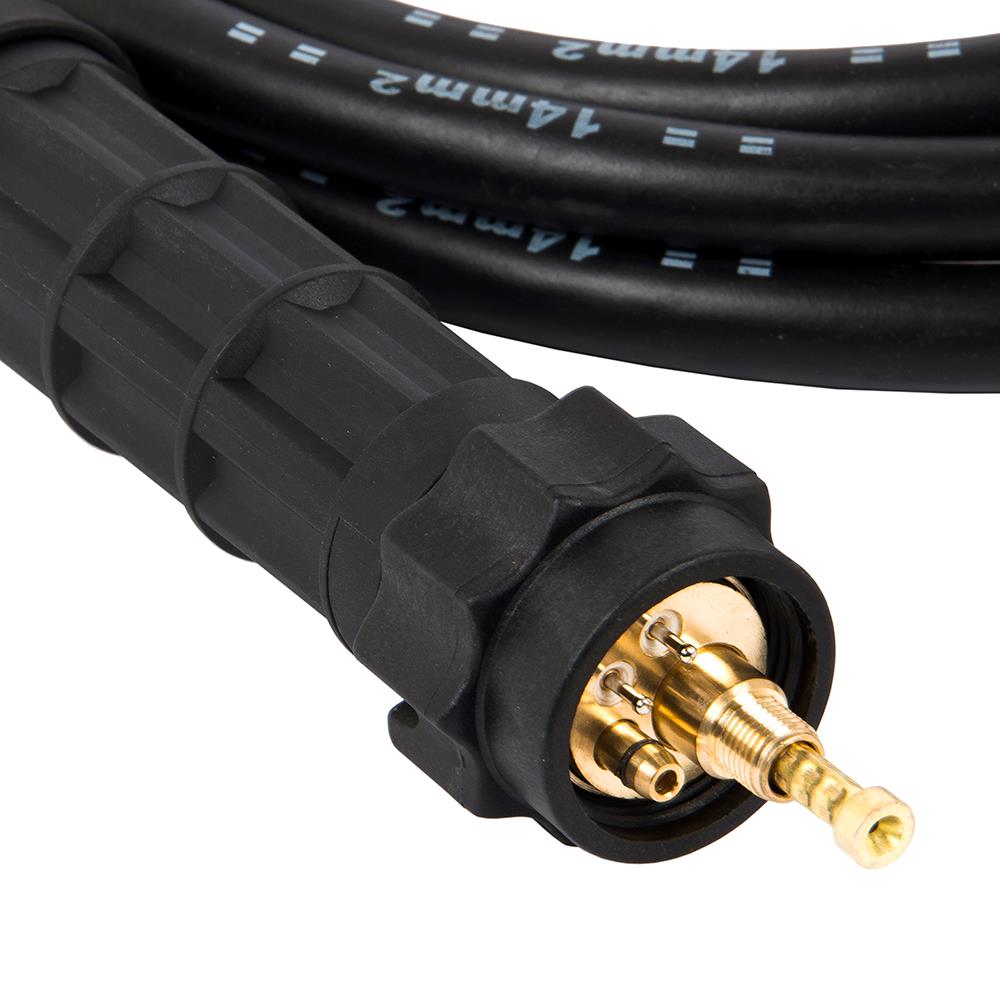

• Euro Connect Torch with Tweco® style consumables
• Fast disconnect to swap out torch, clean liner

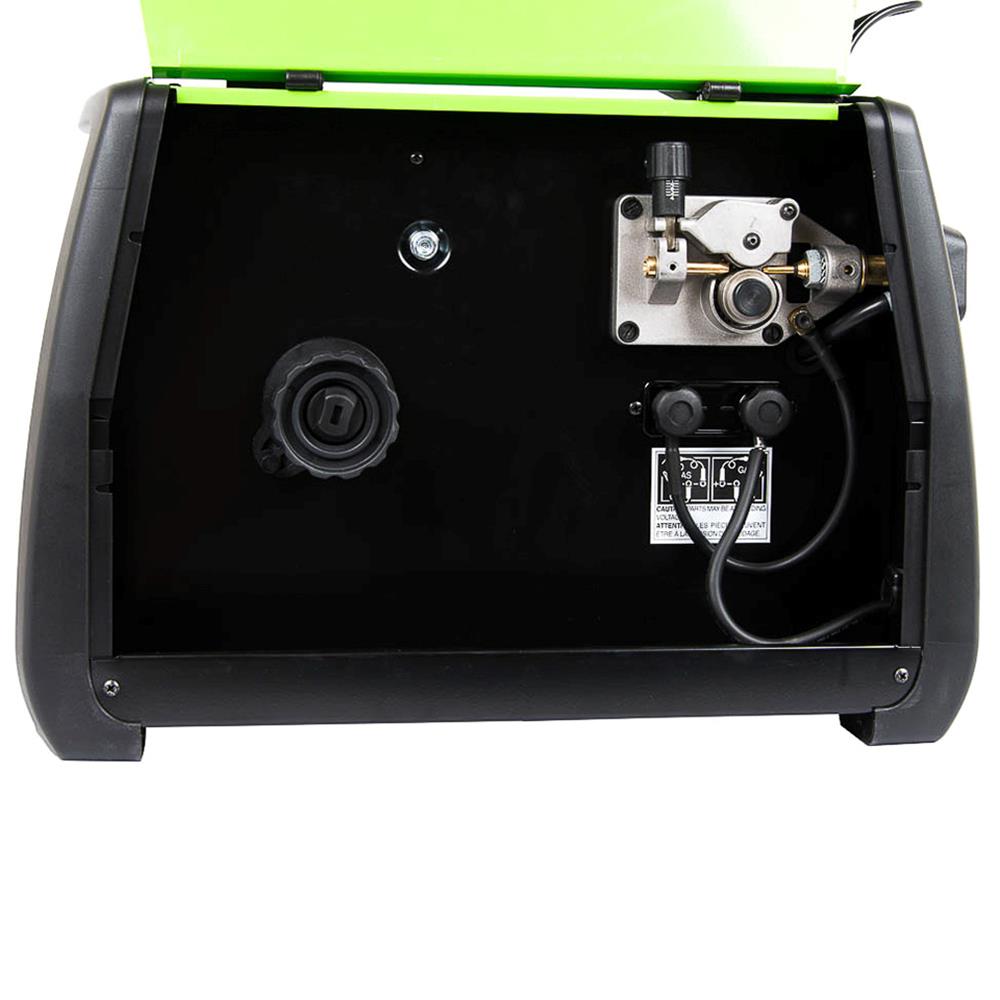

Better Wire Feeding:

• Upgraded cast aluminum wire drive system
• Dual geared idler and drive roll with better de-spooler

More Space:

• Larger cabinet for easy access to 4" (1-2 lb.) and 8" (10-11 lb.) spools

Improved Design:

• Integrated feet
• Torch wrap included for cable organization
• Torch with built in strain relief which extends cable life

Duty Cycle:

• 140A @ 15% Duty Cycle
• 120A @ 25% Duty Cycle
• 80A @ 60% Duty Cycle
• 60A @ 100% Duty Cycle

---

Applications:

• DIY
• Metal Fabrication
• Maintenance & Repair
• Farm & Ranch
• Automotive

Quick Specs:

• Processes: MIG (GMAW); Flux Cored (FCAW)
• Input Power: 230V
• Amperage Range: 35-190A
• Wire Diameter Range: .024" - .035"
• Rated Output: 120A @ 25% Duty Cycle
• Plate Thickness Range: 24 ga. - 3/8"
• Weight: 63 lbs.
• Dimensions: 19" x 9.5" x 16.5"

Includes:

• MIG gun with 10' lead
• 10' ground cable & clamp
• 15' input power cable
• Gas hose and regulator

Warranty: Protected under our industry leading 5/3/1 Warranty.
