Lincoln Electric Power Mig 262MP

Experience the ultimate in professional-grade performance with the
POWER MIG® 262MP. With a max output of 300 Amps and multi-process
functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the
262MP delivers all the performance and versatility you expect from the
POWER MIG family.
Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and
Weld Set Memory, the POWER MIG 262MP puts precise machine control
at your fingertips. Navigate effortlessly through its features with the
intuitive 7-inch LCD display, ensuring seamless operation and unparalleled
operator control.
From autobody projects to all-day fabrication, trust the POWER MIG
262MP to deliver the unmatched performance and reliability you need

Click Here to View PDF with full details of product.

VALUE-ADDED FEATURES
• 7-Inch Color Display - Enhances
communication between operator
and machine.
• Aluminum Pulse Process - Welds 4XXX
and 5XXX series aluminum for superior
quality welding.
• Multi-Process Capable - Welds MIG,
flux-cored, stick, TIG, and Pulsed MIG.
• Synergic Control - Set weld procedures
with one control.
• Rugged MAXTRAC® Industrial Wire Drive
- Allows for constant wire feed speed and
consistent welds.
• Stick Settings for 6010 + 6011 - Superior
performance with cellulosic electrodes.
• 300 Amp Max Output - Perfect for
autobody, general fabrication, education,
and more.
• Memory Recall - Easily save and access
memories with the newly enhanced UI.

Pulsed MIG Mode varies weld current between peak (high heat) and
background (low heat) current to provide better control of heat
input, which minimizes warping and burnthrough on thin materials.
Pulsed MIG also enables flat, horizontal, vertical up, or overhead
welding without a slag system. Optimized GMAW-P waveforms are
readily available to use on aluminum, carbon steel, high strength low
alloy steel, stainless steel, and nickel alloys.
Trim adjusts the arc length and ranges from 0.50 to 1.50 with a nominal
value of 1.00. Trim values greater than 1.00 increase the arc length, while
values less than 1.00 decrease the arc length.

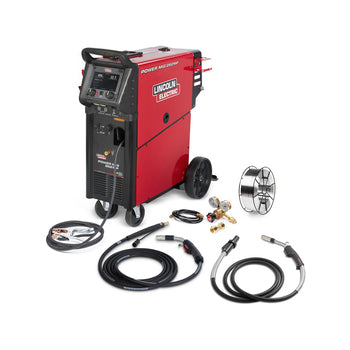

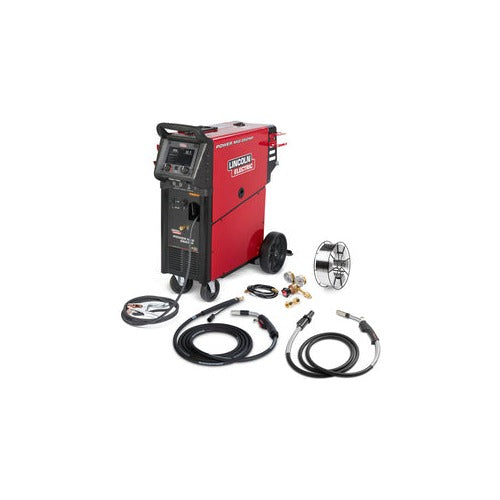

K5376-1 Power MIG 262MP:
• K4530-2 Magnum PRO 250L Welding Gun
• K586-1 Adjustable Gas Regulator and Hose
• KP1696-1 Drive Roll Kit 0.035/0.045 in
• 10 ft Work Cable with Clamp
• 10 ft Power Cable with Plug
