CK Worldwide MR1425SF 140 Amp Micro TIG Torch, Water-Cooled, 25' Superflex Cable

CK Worldwide's MR1425SF Micro TIG torch delivers 140 amp water-cooled performance in the smallest available form factor. This precision welding tool features interchangeable heads and 25-foot Superflex cables for maximum reach and maneuverability in confined spaces.

The rigid head design ensures stable, consistent welds in hard-to-reach areas while the 100% duty cycle rating provides continuous operation capability. Max Flow water-cooling technology maintains optimal operating temperatures during extended welding sessions. The streamlined design eliminates the valve for simplified operation while maintaining full performance.

• 140 amp rating with 100% duty cycle
• Water-cooled with Max Flow technology

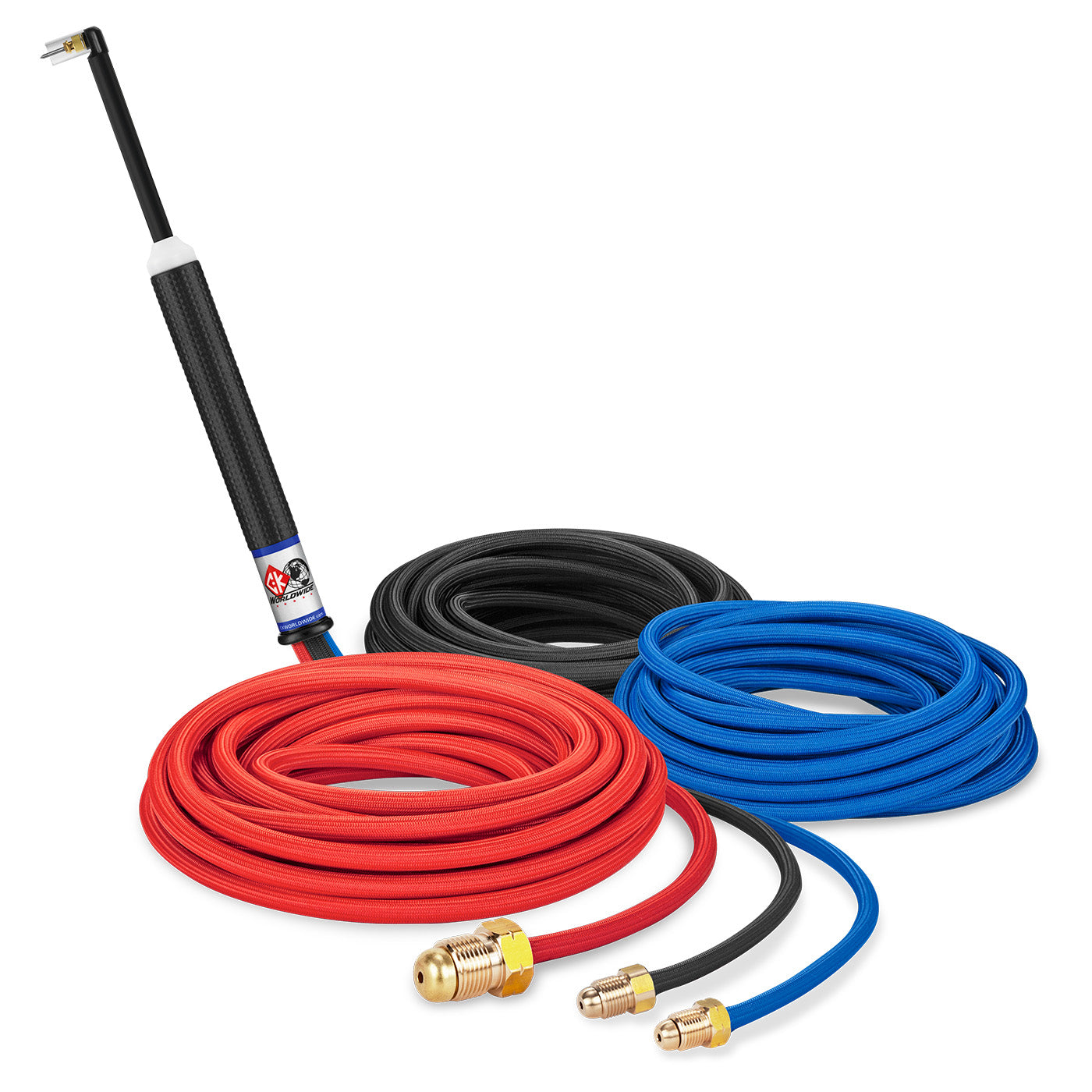

• 25-foot Superflex cables for enhanced flexibility

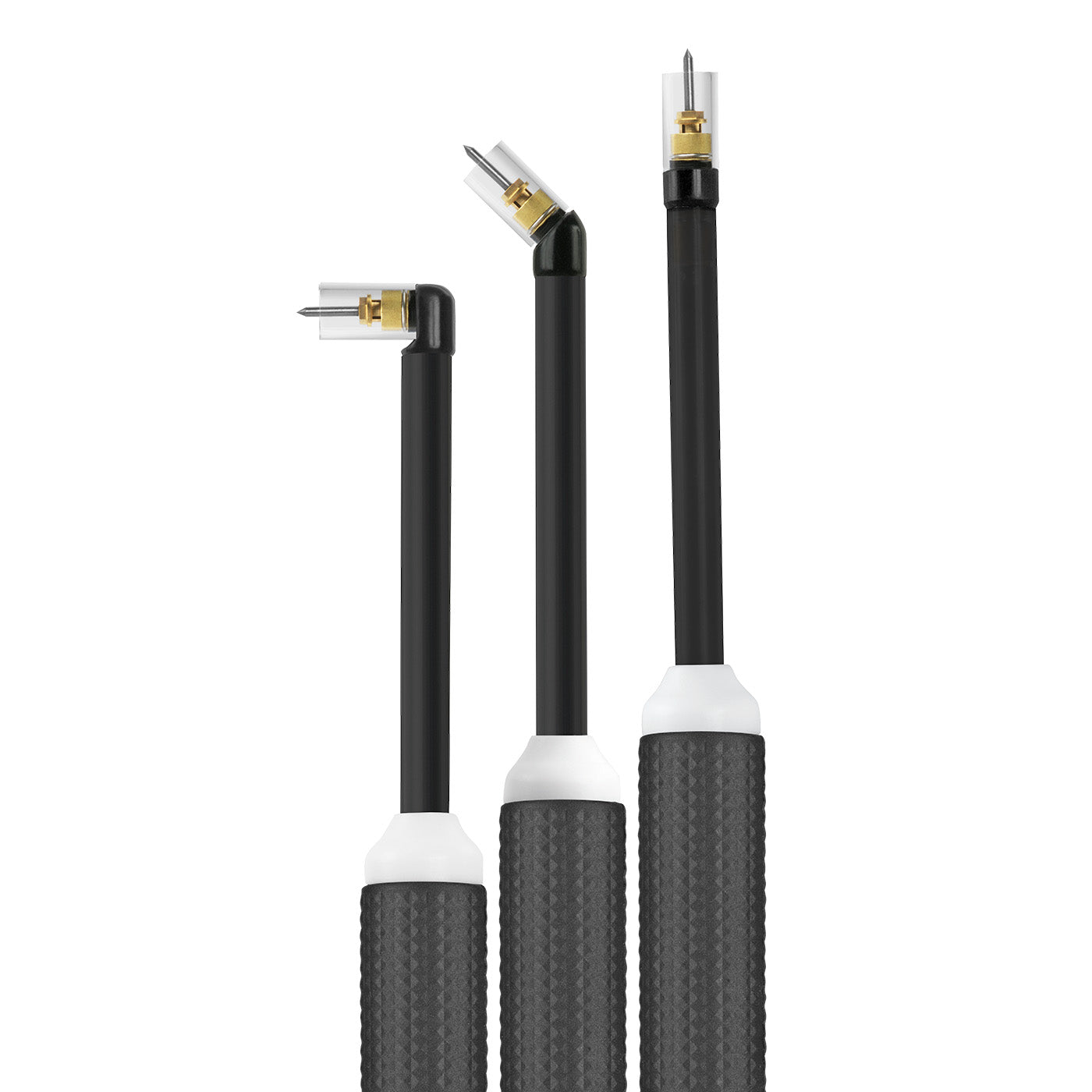

• Interchangeable heads - 45°, 90°, and 180° available
• Rigid head style for stability in tight spaces
• Compatible with .040", 1/16", and 3/32" collets
• Neck diameter: 0.31" (7.9mm)
• Cup diameter: 0.36" (9.1mm)

Compatible Consumables

• MR90H — 90° Head
• MR45H — 45° Head
• MR180H — 180° Head
• MR040C — .040" (1.0mm) Collet
• MR116C — 1/16" (1.6mm) Collet
• MR332C — 3/32" (2.4mm) Collet
• MR4A — Alumina Cup
• MR4P — Clear Cup
• MRHB — Handle Bushing
• TG1-24 — Tungsten Stick-Out Gauge and Wrench

Ideal for precision welding applications requiring access to restricted areas, this torch excels in aerospace, medical device manufacturing, and intricate fabrication work where standard-sized torches cannot reach.
