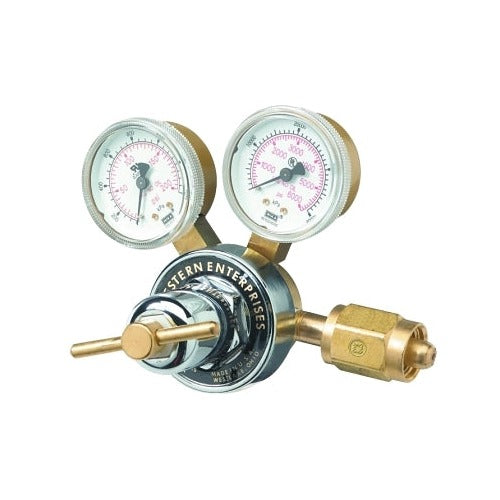

Western Enterprises RHP High Pressure Air Regulator - CGA 347 Inlet, 6,000 PSI, Machined Brass Body

Western Enterprises RHP high inlet/delivery pressure regulator delivers precise compressed air control for demanding industrial applications requiring 6,000 psi service pressure. Built with PCTFE seat assemblies and dual safety relief valves, this regulator provides reliable pressure regulation with enhanced protection against over-pressurization.

The machined brass body construction features dual inlet filters that extend service life by protecting internal components from contamination. Low friction, replaceable thrust bushing ensures smooth adjustment operation even under high pressure conditions. 2-inch gauges provide clear pressure readings for accurate system monitoring.

• Body Material: Machined Brass
• Inlet Connection: CGA 347
• Maximum Inlet Pressure: 6,000 psi
• Gas Type: Compressed Air
• Maximum Flow Capacity: 3,200 SCFH
• Gauge Size: 2 inches
• Dimensions: 4-1/2" L x 6" H x 7" D
• PCTFE seat assemblies for high pressure service
• Dual inlet filters for extended service life
• Dual safety relief valves for over-pressure protection

Compatible CGA 347 Fittings

• 347-2 — Brass Nut, .830"-14 NGO, RH Female
• 347-3 — Brass Nipple, 1/4" NPT, 3" Long
• 6347-2 — Hand-Tight Nut, RH Female
• 6347-3 — Hand-Tight Nipple, 1/4" NPT, 3" Long
• 6347-3-3 — O-Ring Replacement
• SS-347-2 — Stainless Steel Nut, .830"-14 NGO, RH Female
• SS-347-3 — Stainless Steel Nipple, 1/4" NPT, 3" Long
• SS-6347-2 — Stainless Steel Hand-Tight Nut, RH Female
• SS-6347-3 — Stainless Steel Hand-Tight Nipple, 1/4" NPT, 3" Long

Designed for high-pressure compressed air systems, manufacturing facilities, and industrial applications where consistent pressure regulation and safety features are critical for operational efficiency.
