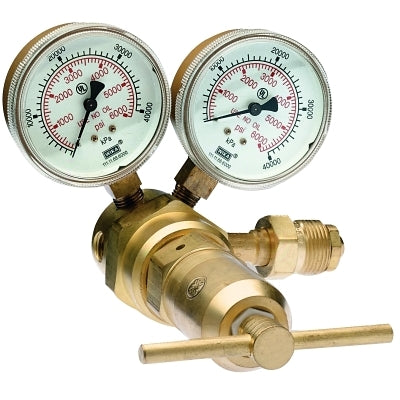

Western Enterprises RS Series High Delivery Pressure Regulator - Inert Gas, 0-2000 PSIG, CGA 580

The Western Enterprises RS Series High Delivery Pressure Regulator delivers precise pressure control for inert gas applications, featuring a compact piston design that handles up to 3000 psi inlet pressure with delivery ranges from 0 to 2000 psig. Built for demanding welding and fabrication environments where consistent gas flow is critical.

This regulator combines a machined brass body and bonnet for superior corrosion resistance with a PCTFE seat assembly engineered to withstand high service pressures. The dual inlet filtering system extends regulator life by protecting internal components from contamination.

• Flow Capacity: 2850 SCFH maximum (N2)
• Pressure Range: 0 to 2000 psig delivery
• Inlet Pressure: 3000 psi maximum
• Inlet Connection: CGA 580
• Outlet Connection: 1/4" NPT female, 180° opposed to inlet
• Gauge Size: 2-1/2 inch
• Body Material: Machined brass with corrosion-resistant finish
• Gas Type: Inert gas compatible
• Seat Design: PCTFE for high-pressure durability
• Filtration: Dual inlet filtering system

The compact piston design provides reliable pressure regulation for argon, helium, and other inert gases commonly used in TIG welding, plasma cutting, and specialty fabrication processes. The CGA 580 inlet connection ensures proper compatibility with standard inert gas cylinders, while the 180° outlet orientation allows for flexible hose routing in tight workspace configurations.
