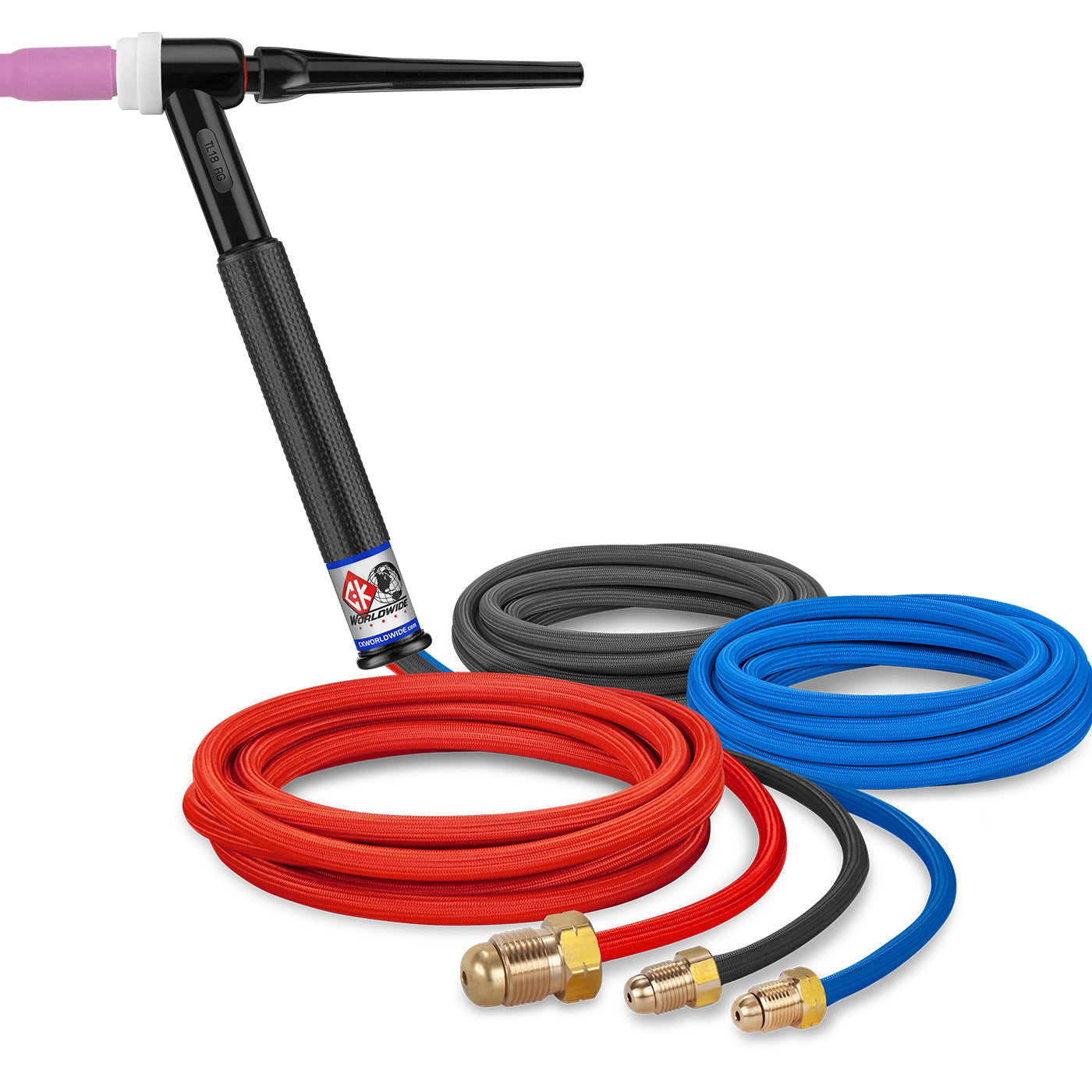

CK Worldwide TL18-12SF - 350 Amp Rigid Head TIG Torch, Water-Cooled, 12.5' Super-Flex Cables, Trim Line

The CK TL18-12SF delivers professional-grade TIG welding performance with its 350 amp ACHF or DCSP @ 100% duty cycle rating and water-cooled design featuring Max Flow technology. This rigid head torch combines precision control with the flexibility of 12.5' SuperFlex cables, making it ideal for demanding fabrication work where both accuracy and maneuverability are essential.

Part of CK's Trim-Line series, this torch offers a streamlined design that's smaller and lighter than standard 3 Series torches while maintaining full industrial capability. The rigid head construction ensures stable arc control, while the SuperFlex cable technology provides maximum flexibility without sacrificing durability in shop environments.

• Amperage Rating: 350 amp ACHF or DCSP @ 100% duty cycle
• Cooling: Water-cooled with Max Flow technology
• Head Style: Rigid for precise positioning
• Cable Length: 12.5 feet (3.8m) SuperFlex cables
• Torch Length: 8 inches (20.3cm)
• Weight: 5 oz (141gm)
• Series: 3 Series head accessories compatible
• Configuration: 3-piece cable assembly
• Valve: Non-valved design

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4" 6.4mm)
• 3A5 — #5 Alumina Cup (5/16" 8.0mm)
• 3A6 — #6 Alumina Cup (3/8" 9.6mm)
• 3A8 — #8 Alumina Cup (1/2" 12.8mm)
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Back Cap

This torch accepts tungsten electrodes from .020" to 1/4" (0.5mm to 6.4mm) and uses standard 3 Series consumables. Compatible with CK's complete line of 3 Series accessories including gas lens setups, various cup sizes, and collet configurations for different tungsten diameters.
