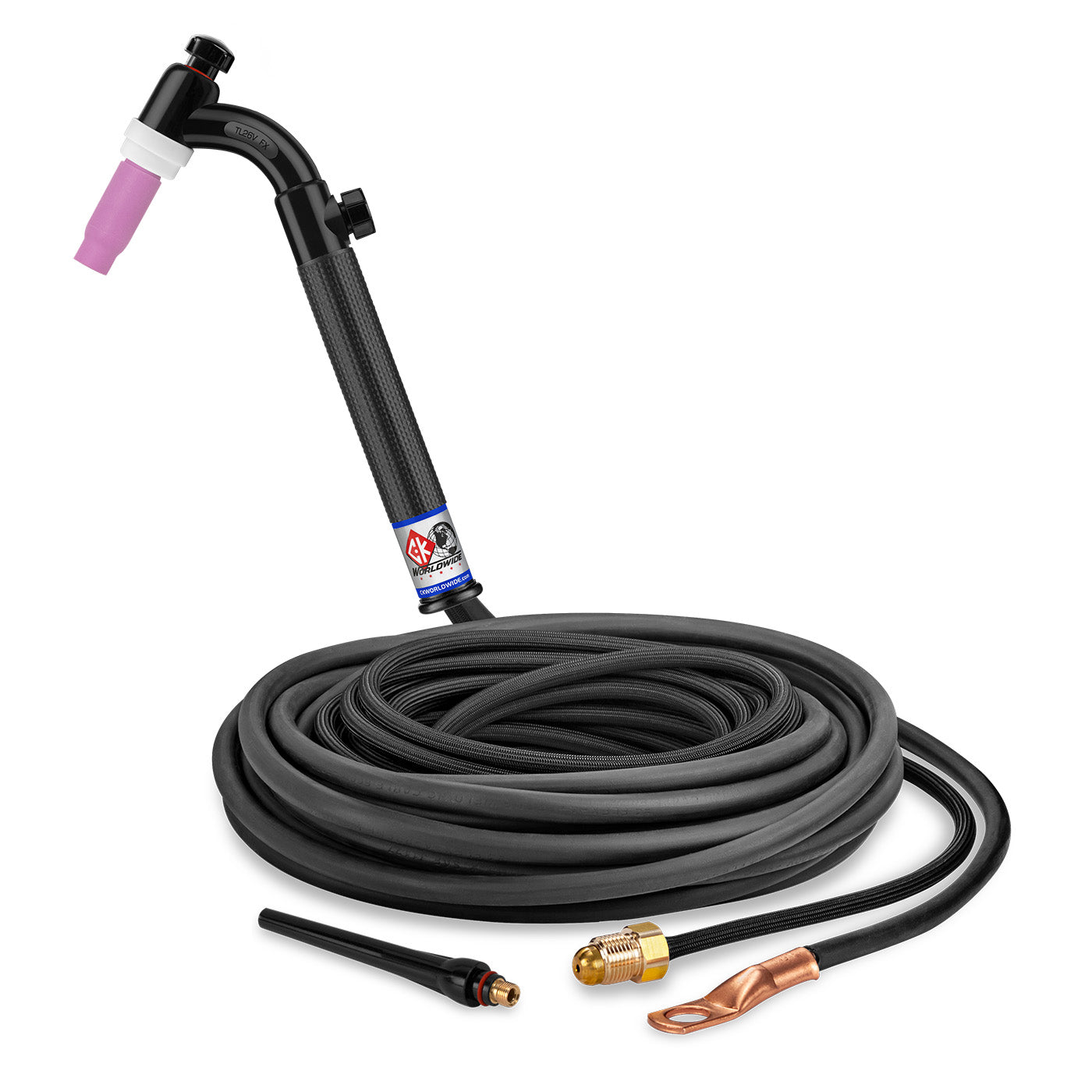

CK Worldwide TL26V-25-2SF FX 200 Amp Flex Head TIG Torch with Valve

The CK Worldwide TL26V-25-2SF FX delivers 200 amp performance with the versatility of a flex head design and integrated gas valve control. This gas-cooled TIG torch features CK's signature flex head technology providing 40 degrees of articulation in any direction, combined with a valve-equipped handle for precise gas flow adjustment at the weld point.

• 200 amp ACHF or DCSP @ 100% duty cycle — continuous operation capability
• Flex head design — 40-degree articulation for enhanced access
• Integrated gas valve — handle-mounted flow control
• 25-foot SuperFlex cable — 2-piece configuration for maximum flexibility
• Gas-cooled design — optimized heat dissipation
• Trim-Line handle — slim profile for improved control
• 3 Series head accessories — wide range of consumable compatibility
• 7/8" x 14RH power cable connections
• Overall length: 8-1/8" (20.6cm)
• Weight: 5 oz (141gm)

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300L — Long Backcap

The TL26V combines the precision of valve control with flex head maneuverability, making it ideal for complex fabrication work requiring both access flexibility and precise gas flow management. Compatible with standard 3 Series consumables and accessories for versatile application coverage.
