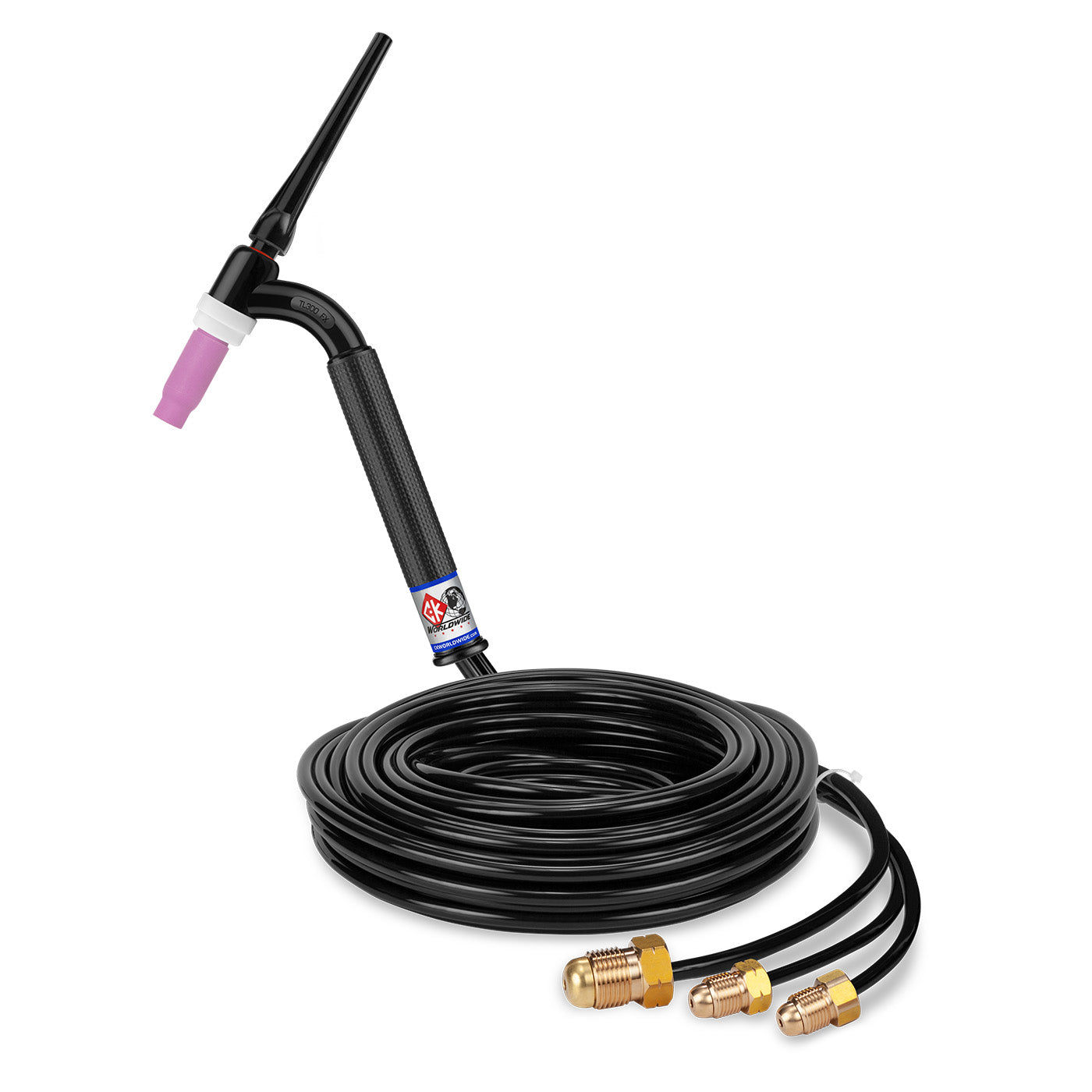

CK Worldwide TL325 FX 350A Flex Head TIG Torch, Water-Cooled, 25' Trim-Line

The TL325 FX delivers precision welding performance with 350 amp capacity at 100% duty cycle and CK's signature flex head design providing 40 degrees of articulation in any direction. This water-cooled torch features Max Flow technology for superior heat management and comes equipped with 25' standard cables and Trim Line handles for enhanced control.

Built for demanding fabrication environments, this torch combines the reliability of water cooling with the versatility of a flex head configuration. The streamlined design eliminates the valve for simplified operation while maintaining full amperage capability across extended welding sessions.

• 350 amp rating — ACHF or DCSP at 100% duty cycle
• Flex head design — 40-degree articulation for improved access
• Water-cooled operation — Max Flow technology for optimal heat dissipation
• 25' standard cables — 3-piece cable configuration
• Trim Line handle — Slim profile for enhanced grip and control
• 8" torch length — Compact design weighing 5 oz
• 3 Series head accessories — Compatible with full range of consumables

Compatible Consumables

• 300S — Short Backcap
• 300M — Medium Backcap
• 300L — Long Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup

The TL325 FX accommodates tungsten electrodes from .020" to 1/4" diameter and utilizes 3/8" x 32 thread pattern consumables. Ideal for precision welding applications requiring flexible torch positioning and consistent arc performance in production and repair welding environments.
