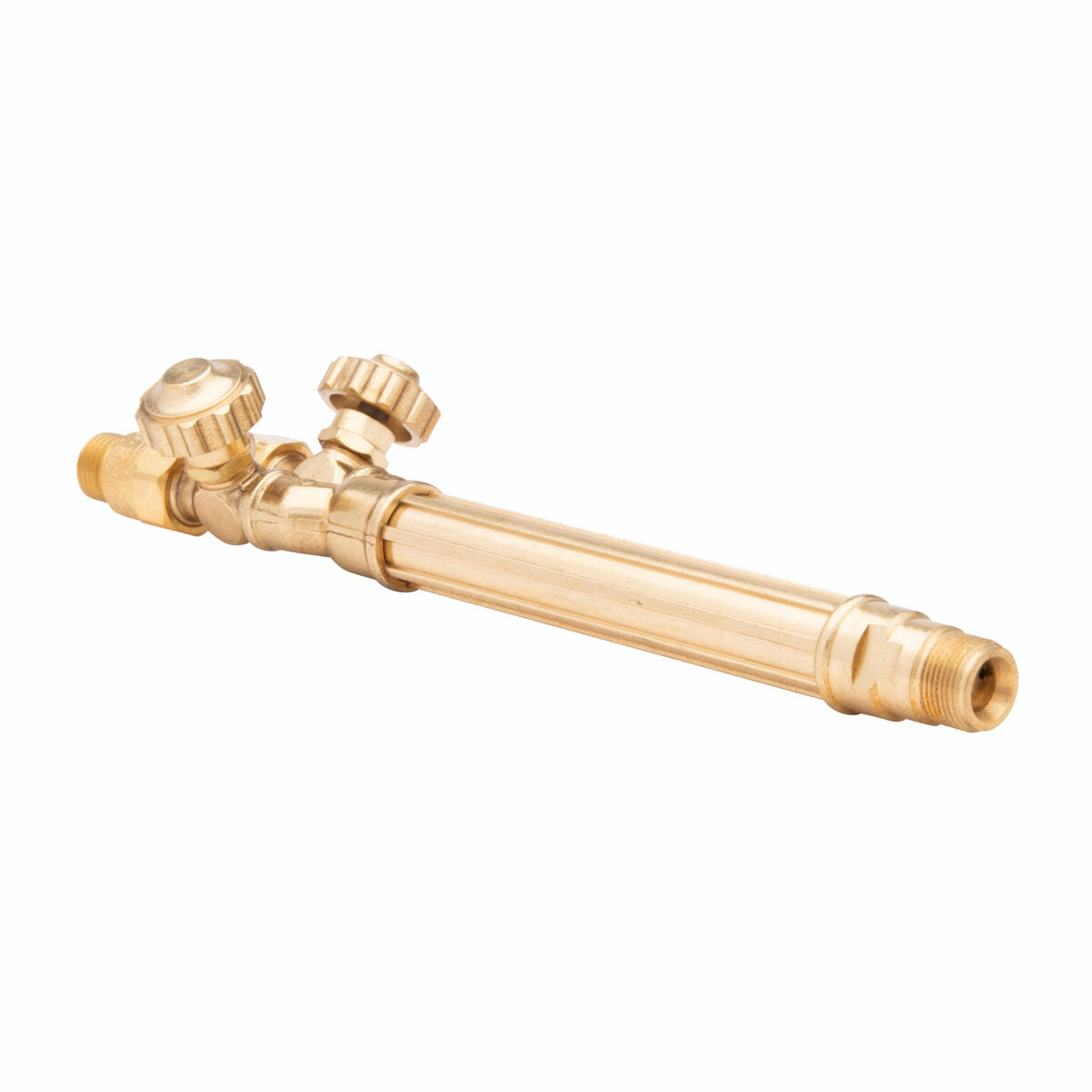

Model VH10 V-Series® Combination Torch Handle with Check Valves

Model VH10 V-Series® is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with all fuel gases. Model VH10 features tube-within-a-tube construction with threaded connections and O-ring seals. The VH10 is equipped with easy-to-replace FlashGuard® high capacity check valves. Cuts up to 5 in. (127.0mm) plate and welds up to 1/2 in. (12.7mm) plate.

• Model VH10 medium duty combination torch handle with check valves. Compatible mixer Models V-W,-1 and cutting attachment Model VH13.
• Model VH10 V-Series® is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with all fuel gases. Model VH10 features tube-within-a-tube construction with threaded connections and O-ring seals. The VH10 is equipped with easy-to-replace FlashGuard® high capacity check valves. Cuts up to 5 in. (127.0mm) plate and welds up to 1/2 in. (12.7mm) plate.
• Medium duty combination torch handle for use with all fuel gases
• Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
• Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
• O-ring sealed for greater strength and higher capacity
• Threaded connections
• Marked with model number for ease in selecting compatible parts
• Handle is 8-3/4 in. (222.2mm) in length
• Equipped with FlashGuard® replaceable check valves
• Cuts up to 5 in. (127.0mm) plate; Welds up to 1/2 in. (12.7mm) plate
• Model VH10 V-Series® Combination Torch Handle with Check Valves
• 1 Year
• VH10
• Harris
• Oxygen;AllFuelGases

• Compatible Cutting Attachment Model Number: VH13
• Compatible Cutting Tip Model Number - Acetylene-H2 (Size): V3-101
• Compatible Cutting Tip Model Number - Alternate Fuel (Size): 3-GPN;3-GPP
• Compatible Heating Tip Model Number - Acetylene-H2 (Size): J-63 (1, 2);1390-HA
• Compatible Heating Tip Model Number - Alternate Fuel (Size): 1390 (B&H)
• Compatible Mixer Model Number: V-W-1
• Compatible Tip Tube Model Number: 8593
• Compatible Welding/Brazing Tip Style - Acetylene-H2 (Size): 23A90 (0-10);1390 (0-10)
• Compatible Welding/Brazing Tip Style - Alternate Fuel (Size): 1390-N (4-10)
• Construction: Tube-within-a-tube
• Cutting Capacity: Up to 5 in. (127.0mm) plate
• Duty: Medium
• Equipped With: FlashGuard® Check Valves
• Gas / Gas Service: Acetylene;Hydrogen;Natural Gas;Methane;Propane;Propylene
• Recommended Items/Accessories: FlashGuard® Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
• Torch Length: 8-3/4 in. (222.2 mm)
• Typical Application: Welding;Brazing;Cutting;Heating
• Welding Capacity: Up to 1⁄2 in. (12.7mm) plate

What's Included: Model VH10 V-Series® Combination Torch Handle with Check Valves

Model Name: VH10
