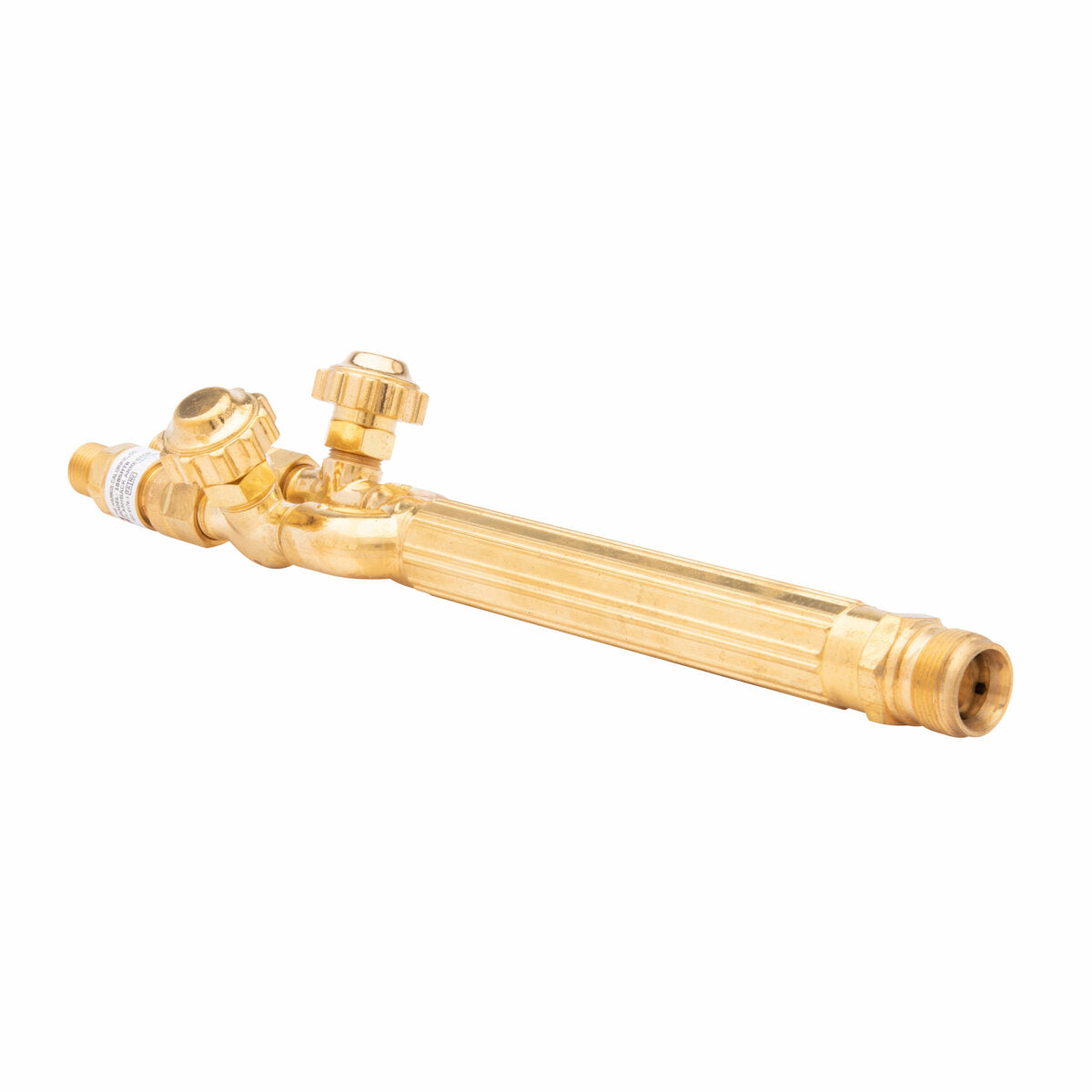

Model VH31 V-Series® Heavy Duty Combination Torch Handle

Model VH31 V-Series® is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.

• Model VH31 heavy duty combination torch handle. Compatible mixer Model V-W and cutting attachment Model VH-24.
• Model VH31 V-Series® is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.
• Heavy duty combination torch handle for use with all fuel gases
• Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
• Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
• O-ring sealed for greater strength and higher capacity
• Features B-hose fittings (9/16 in.-18)
• Marked with model number for ease in selecting compatible parts
• Handle is 11 in. (279.4mm) in length
• Equipped with Model 88-5N FBTL&R flashback arrestors installed
• Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate
• Model VH31 V-Series® Heavy Duty Combination Torch Handle
• 1 Year
• VH31Z003
• Harris
• Oxygen;AllFuelGases

• Compatible Cutting Attachment Model Number: VH24
• Compatible Cutting Tip Model Number - Alternate Fuel (Size): V-101;V-101AC
• Compatible Heating Tip Model Number - Acetylene-H2 (Size): J-63 (1-3)
• Compatible Heating Tip Model Number - Alternate Fuel (Size): 1390 (H;3H;B)
• Compatible Mixer Model Number: V-W
• Compatible Tip Tube Model Number: 8593
• Compatible Welding/Brazing Tip Style - Acetylene-H2 (Size): 23A90-3 (0-10)
• Compatible Welding/Brazing Tip Style - Alternate Fuel (Size): 1390-N (2-80N)
• Construction: Tube-within-a-tube
• Cutting Capacity: Up to 8 in. (203.2mm) plate
• Duty: Heavy
• Equipped With: FlashGuard® Flashback Arrestors Torch Type
• Gas / Gas Service: Acetylene;Hydrogen;Natural Gas;Methane;Propane;Propylene
• Inlet Connection: (B) 9/16 in. - 18
• Recommended Items/Accessories: FlashGuard® Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202;FlashGuard® Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
• Torch Length: 11 in. (279.4mm)
• Typical Application: Welding;Brazing;Cutting;Heating
• Welding Capacity: Up to 1⁄2 in. (12.7mm) plate

What's Included: Model VH31 V-Series® Heavy Duty Combination Torch Handle

Model Name: VH31Z003
