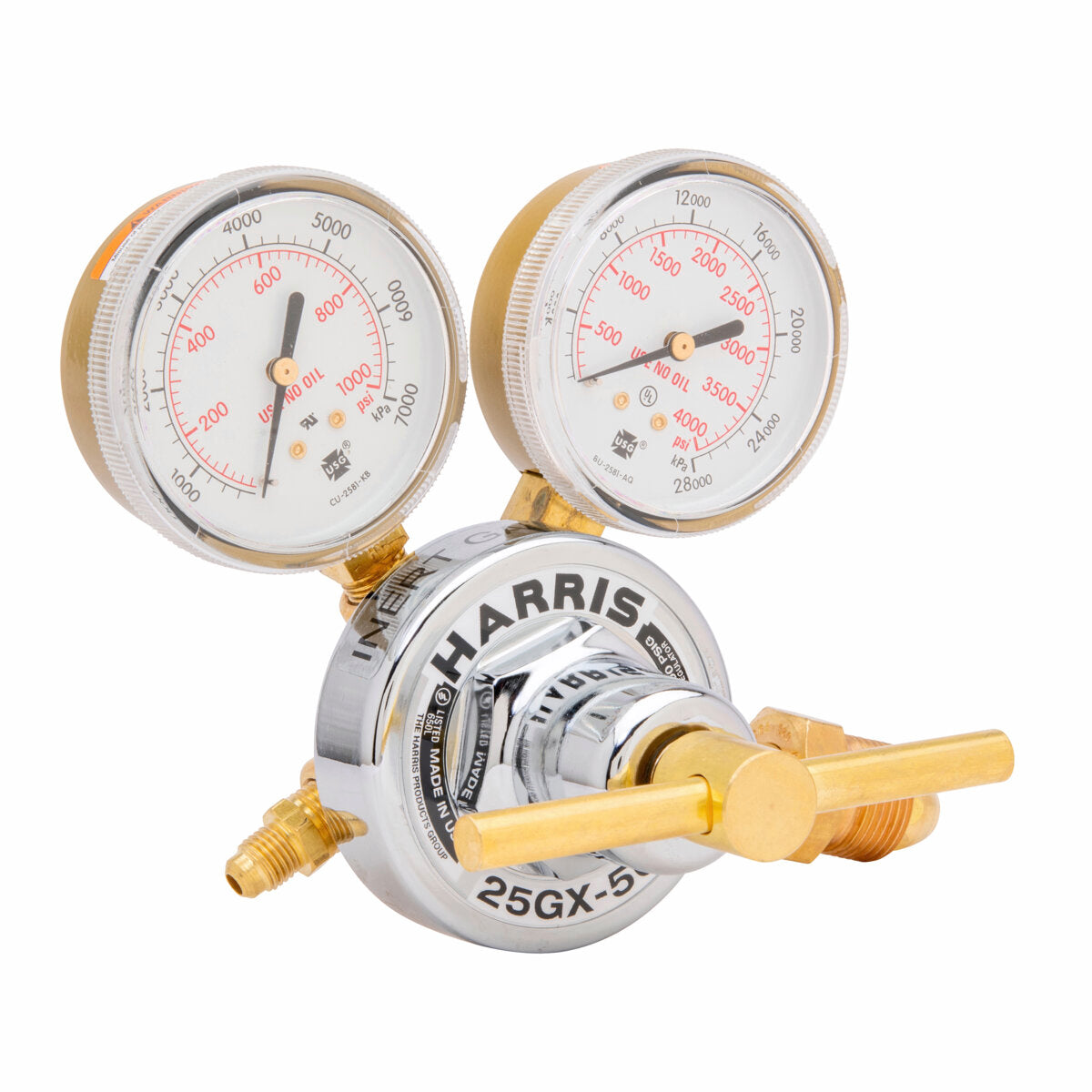

Model 25GX-500-580 HVAC Purging Single-Stage Pressure Regulator

Model 25GX single-stage nitrogen purging regulator is designed for performance and economy, but with features typically available in more expensive models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

• Model 25GX-500-580 HVAC single-stage nitrogen purging regulator (Clamshell)
• Model 25GX single-stage nitrogen purging regulator is designed for performance and economy, but with features typically available in more expensive models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.
• High end features for economical price
• Designed for HVAC and other nitrogen pressure testing and blanketing applications
• Brass T-screw adjusting handle for easier adjustment at high pressures
• Brass body and electroless nickel-plated zinc bonnet for longer service life
• Neoprene diaphragm for improved pressure control
• 2.5 in. Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Conveniently packaged in clamshell for point-of-purchase display
• Model 25GX-500-580 HVAC nitrogen purging medium-to-heavy duty single-stage regulator (Clamshell)
• 7 Years
• 25GX-500-580 HVAC
• Harris
• Argon;Helium;Nitrogen

• Adjusting Screw: Brass T-screw
• Body: Brass
• Bonnet: Electroless nickel-plated zinc
• Certification: CGA E-4
• Cv: 0.17
• Delivery Pressure Gauge (PSIG): 1000
• Delivery Pressure Range (PSIG): 0 - 500
• Diaphragm: Neoprene
• Duty: Medium to heavy
• Gas / Gas Service: Argon;Helium;Nitrogen
• Gauges: 63mm Gold painted steel dual scale (psi/kPa)
• Inlet Connection: CGA 580
• Maximum Inlet Pressure (PSIG): 3000
• Nozzle: Brass
• Outlet Connection: 1/4 in. 45◦ Flare SAE CGA 165
• Pressure Regulation PSIG/100 PSIG: 0.2
• Recommended Items/Accessories: Steel Gauge Guard - Red (Fuel) - PN 4300238;Steel Gauge Guard - Green (Oxygen) - PN 4300239
• Seat: PTFE Teflon®
• Supply Pressure Gauge (PSIG): 4000
• Typical Application: HVAC purging, Pressure testing, Blanketing

What's Included: Model 25GX-500-580 HVAC nitrogen purging medium-to-heavy duty single-stage regulator (Clamshell)

Model Name: 25GX-500-580 HVAC
