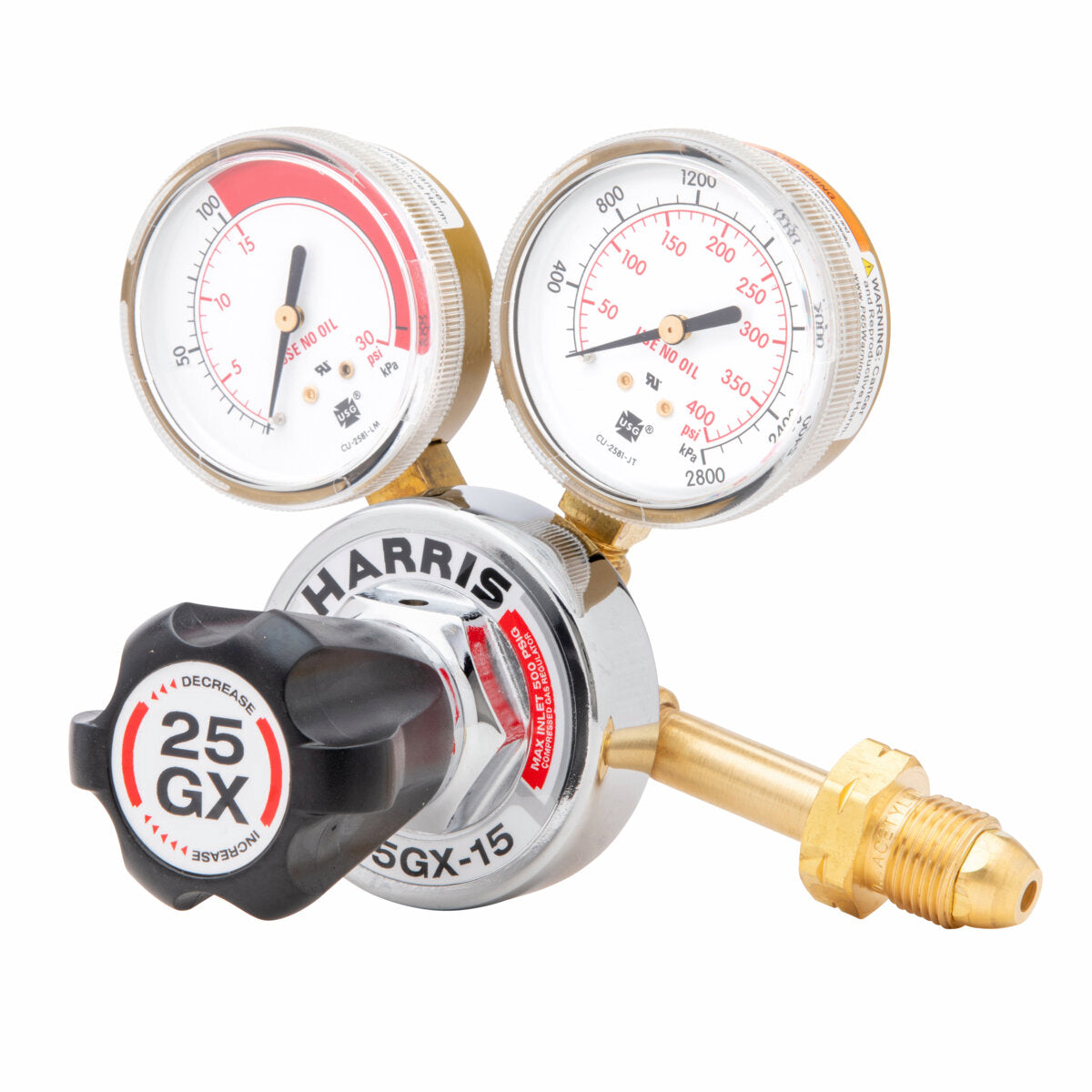

Model 25GX-15-510 Medium-to-Heavy Duty Single-Stage Pressure Regulator

Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Conveniently packaged in clamshell for point-of-purchase display.

• Model 25GX-15-510 best value medium-to-heavy duty single-stage regulator (Clamshell)
• Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Conveniently packaged in clamshell for point-of-purchase display.
• High end features for economical price
• Workhorse of Harris industrial regulator line
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Brass body and electroless nickel=plated zinc bonnet for longer service life
• Neoprene diaphragm for improved pressure control
• 2.5 in. Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• UL® listed
• Conveniently packaged in clamshell for point-of-purchase display
• Model 25GX-15-510 Medium-to-Heavy Duty Single-Stage Pressure Regulator
• 7 Years
• Acetylene-25GX-15PSI-CGA510 (Clam)
• Harris
• UL
• Acetylene

• Adjusting Knob: ABS plastic
• Body: Brass
• Bonnet: Electroless nickel-plated zinc
• Certification: CGA E-4;UL® listed
• Cv: 0.17
• Delivery Pressure Gauge (PSIG): 30RZ
• Delivery Pressure Range (PSIG): 0 - 15
• Diaphragm: Neoprene
• Duty: Medium to heavy
• Gas / Gas Service: Acetylene
• Gauges: 2.5 in. Steel dual scale
• Inlet Connection: CGA 510
• Maximum Inlet Pressure (PSIG): 500
• Nozzle: Brass
• Outlet Connection: 9/16 in. - 18 LH
• Pressure Regulation PSIG/100 PSIG: 0.2
• Recommended Items/Accessories: Steel Gauge Guard - Red (Fuel) - PN 4300238;Steel Gauge Guard - Green (Oxygen) - PN 4300239
• Seat: PTFE Teflon®
• Supply Pressure Gauge (PSIG): 400

What's Included: Model 25GX-15-510 Medium-to-Heavy Duty Single-Stage Pressure Regulator

Model Name: Acetylene-25GX-15PSI-CGA510 (Clam)
