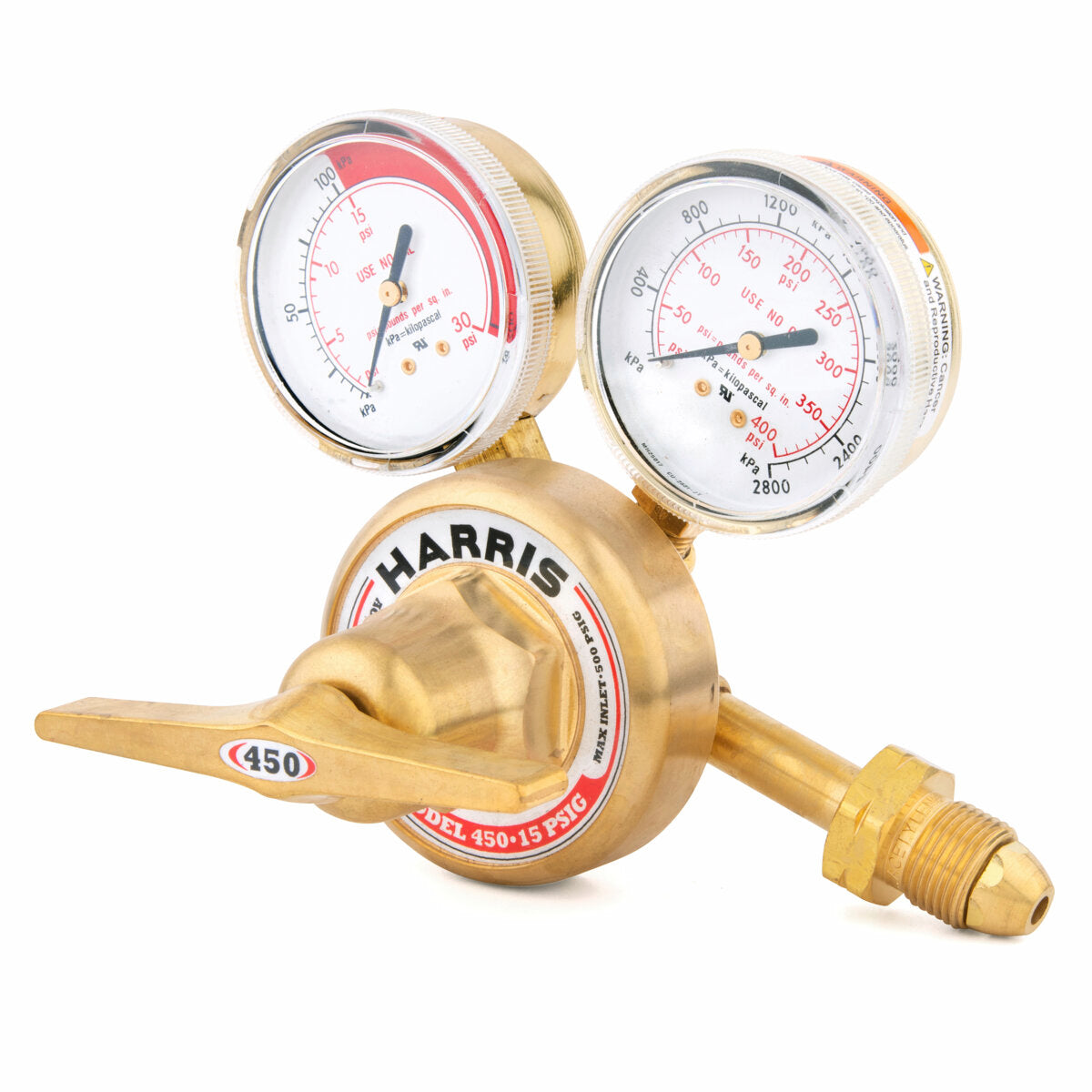

Model 450-15-510 SS Diaphragm Single-Stage Pressure Regulator
Model 450-15-510 SS Diaphragm Single-Stage Pressure Regulator
Regular price
$264.51
Sale price
$264.51
Regular price
Shipping calculated at checkout.
Model 450 is an economically priced industrial-duty, regulator that has premium features found only in high-priced regulators. The 450 has a stainless steel diaphragm and a Harris’ exclusive internal tamper-proof self-reseating safety relief device.
- Model 450-015-510 stainless steel diaphragm heavy duty single-stage regulator
- Model 450 is an economically priced industrial-duty, regulator that has premium features found only in high-priced regulators. The 450 has a stainless steel diaphragm and a Harris’ exclusive internal tamper-proof self-reseating safety relief device.
- Economically priced heavy-duty single stage regulator
- Boasts premium features generally found in high priced regulators
- Brass T-screw bar adjusting handle for easier adjustment
- Brass body and bonnet for longer service life
- Stainless steel diaphragm for safety and greater strength in adverse conditions
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Equipped with a tamperproof, self reseating, internal high pressure safety relief valve
- UL® listed
- Model 450-15-510 Heavy duty Stainless Steel Diaphragm Single-Stage Pressure Regulator
- 7 Years
- Acetylene-450-015PSI-CGA510
- Harris
- UL
- Acetylene
- Adjusting Screw: Brass T-screw bar
- Body: Brass
- Bonnet: Brass
- Certification: CGA E-4;UL® listed
- Cv: 0.17
- Delivery Pressure Gauge (PSIG): 30RZ
- Delivery Pressure Range (PSIG): 0 - 15
- Diaphragm: Stainless steel
- Duty: Heavy
- Equipped With: Tamper proof, self-reseating, internal safety valve
- Gas / Gas Service: Acetylene
- Gauges: 2.5 in. Brass dual scale (psi/kPa)
- Inlet Connection: CGA 510
- Maximum Inlet Pressure (PSIG): 500
- Outlet Connection: 9/16 in. - 18 LH
- Pressure Regulation PSIG/100 PSIG: 0.30
- Seat: PTFE Teflon®
- Supply Pressure Gauge (PSIG): 400
What's Included: Model 450-15-510 Heavy duty Stainless Steel Diaphragm Single-Stage Pressure Regulator
Model Name: Acetylene-450-015PSI-CGA510
