Safety-Silv® 45 Silver Brazing Alloy

Safety-Silv® 45 is an excellent General Purpose silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free filler metal with a melting range of approximately 145°F, Safety-Silv® 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.

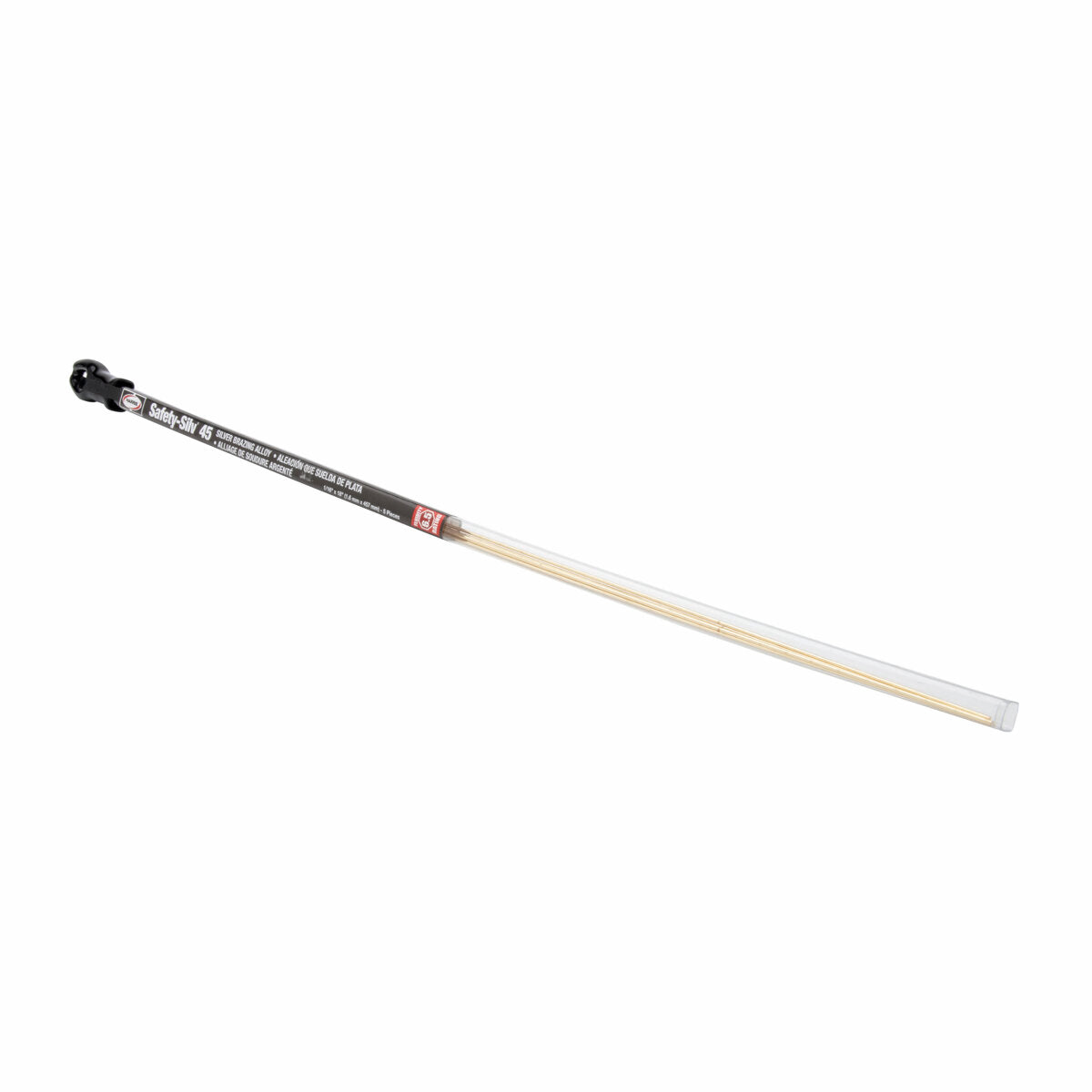

• Safety-Silv® 45 silver brazing alloy POP 1/16 x 18 in. 1 ea. mini-pak 5-stick tube
• Safety-Silv® 45 is an excellent General Purpose silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free filler metal with a melting range of approximately 145°F, Safety-Silv® 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.
• General purpose, cadmium-free silver brazing alloy
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63◦C)
• Good ductility and capillary flow
• Fillet forming qualities are suitable for filling loose connections
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Popular choice to braze copper, brass, steel and stainless steel
• Fluidity rating of 6.5
• Complies with the EU Reach & RoHS directive
• Safety-Silv® 45 silver brazing alloy 1/16 x 18 in. 1 ea. mini-pak 5-stick tube POP
• 1 Year
• Safety-Silv® 45
• Harris
• ANSI
• Rohs;Reach

• Alloy Type: HighSilver
• Brazing Temperature Range: 1370◦F - 1550◦F (743◦C - 843◦C)
• Chemical Composition: Silver 44-46%;Copper 29-31%;Zinc 23-27%;Other (Total) 0.15%
• Classification: ANSI/AWS A5.8;ASME SFA 5.8;QQ-B-654A Class BAg-5;ISO 17672 Ag 245
• Color: Silver to light yellow
• Density: 4.79 toz./cu.in.
• Diameter: 1/16 in. (1.6 mm)
• Electrical Conductivity (%IACS): 18.9
• Fluidity Rating: 6.5
• Liquidus: 1370◦F (743◦C)
• Material: Silver
• NSF Compliant: No
• RoHS Compliant: Yes
• Size: 1 ea. tube
• Solidus: 1225◦F (663◦C)
• Typical Application: Brazing copper, brass, steel and stainless steel;Filling loose connections;Melting range useful for wide clearances

What's Included: Safety-Silv® 45 silver brazing alloy 1/16 x 18 in. 1 ea. mini-pak 5-stick tube POP

Model Name: Safety-Silv® 45
