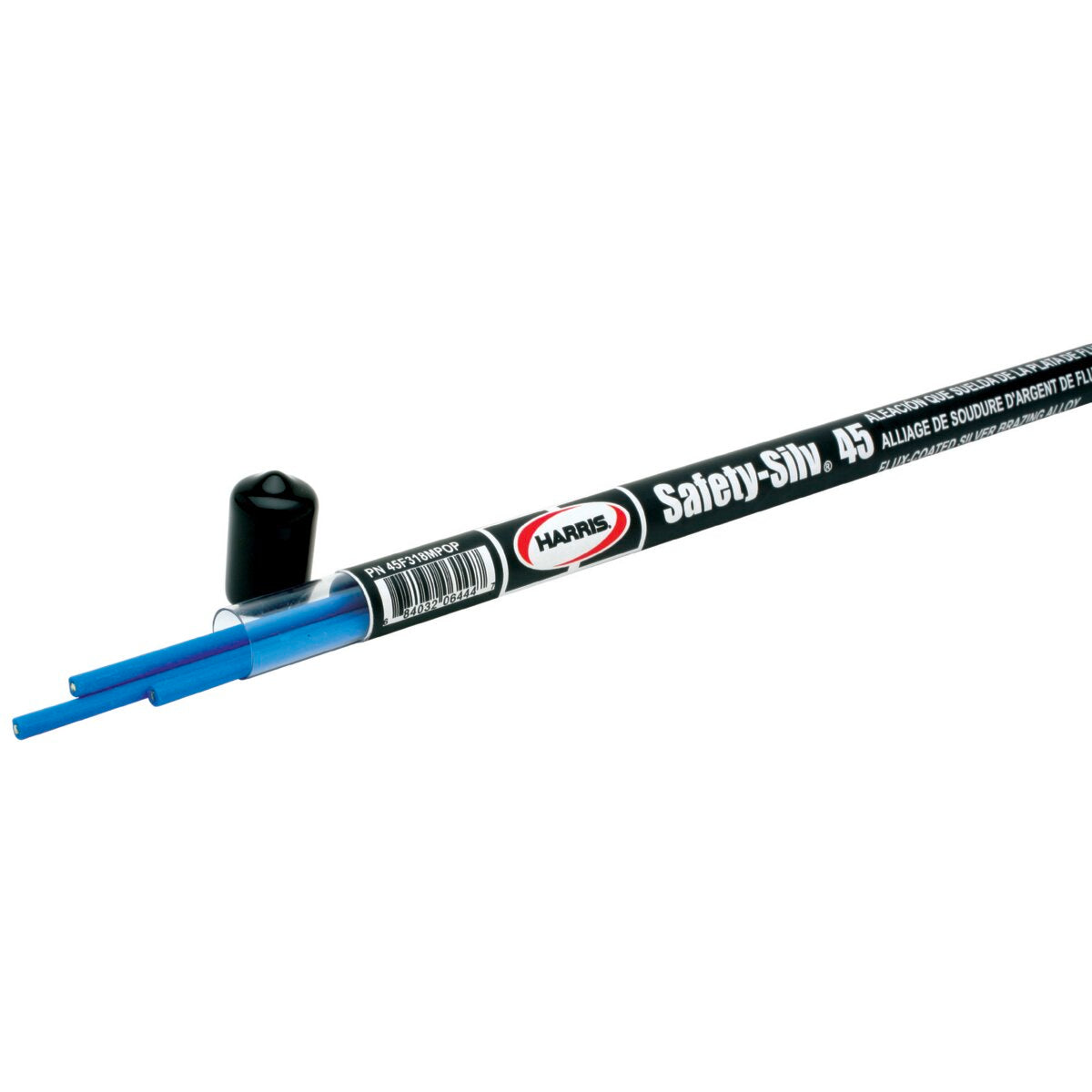

Safety-Silv® 45FC Flux-Coated Silver Brazing Alloy

Safety-Silv® 45FC flux-coated silver brazing alloy performs like a 45% silver cadmium-bearing alloy, but is cadmium-free. The flux coating on the wire eliminates the need for manual flux application. It has a lower melting temperature than Safety-Silv® 45. Its excellent fillet-forming quality produces high-strength ductile joints. Certified to NSF Standard 51 for food service equipment.

• Safety-Silv® 45FC flux-coated silver brazing alloy POP 1/16 x 18 in. x 1 ea. mini-pak 3-stick tube
• Safety-Silv® 45FC flux-coated silver brazing alloy performs like a 45% silver cadmium-bearing alloy, but is cadmium-free. The flux coating on the wire eliminates the need for manual flux application. It has a lower melting temperature than Safety-Silv® 45. Its excellent fillet-forming quality produces high-strength ductile joints. Certified to NSF Standard 51 for food service equipment.
• General purpose, cadmium-free silver brazing alloy
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63◦C)
• Good ductility and capillary flow
• Fillet forming qualities are suitable for filling loose connections
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Popular choice to braze copper, brass, steel and stainless steel
• Fluidity rating of 6.5
• Flux-coating eliminates the need for manual flux application
• Complies with the EU RoHS directive
• Safety-Silv® 45FC flux-coated silver brazing alloy 1/16 x 18 in. x 1 ea. mini-pak 3-stick tube POP
• 1 Year
• Safety-Silv® 45FC
• Harris
• ANSI
• Rohs

• Alloy Type: HighSilver
• Brazing Temperature Range: 1370◦F - 1550◦F (743◦C - 843◦C)
• Chemical Composition: Silver 44-46%;Copper 29-31%;Zinc 23-27%;Other (Total) 0.15%
• Classification: ANSI/AWS A5.8;ASME SFA 5.8;QQ-B-654A Class BAg-5;ISO 17672 Ag 245
• Color: Silver to light yellow
• Density: 4.79 toz./cu.in.
• Diameter: 1/16 in. (1.6 mm)
• Electrical Conductivity (%IACS): 18.9
• Fluidity Rating: 6.5
• Liquidus: 1370◦F (743◦C)
• Material: Silver
• NSF Compliant: No
• RoHS Compliant: No
• Size: 1 ea. tube
• Solidus: 361°F (183°C)
• Typical Application: Brazing copper, brass, steel and stainless steel;Filling loose connections;Melting range useful for wide clearances

What's Included: Safety-Silv® 45FC flux-coated silver brazing alloy 1/16 x 18 in. x 1 ea. mini-pak 3-stick tube POP

Model Name: Safety-Silv® 45FC
