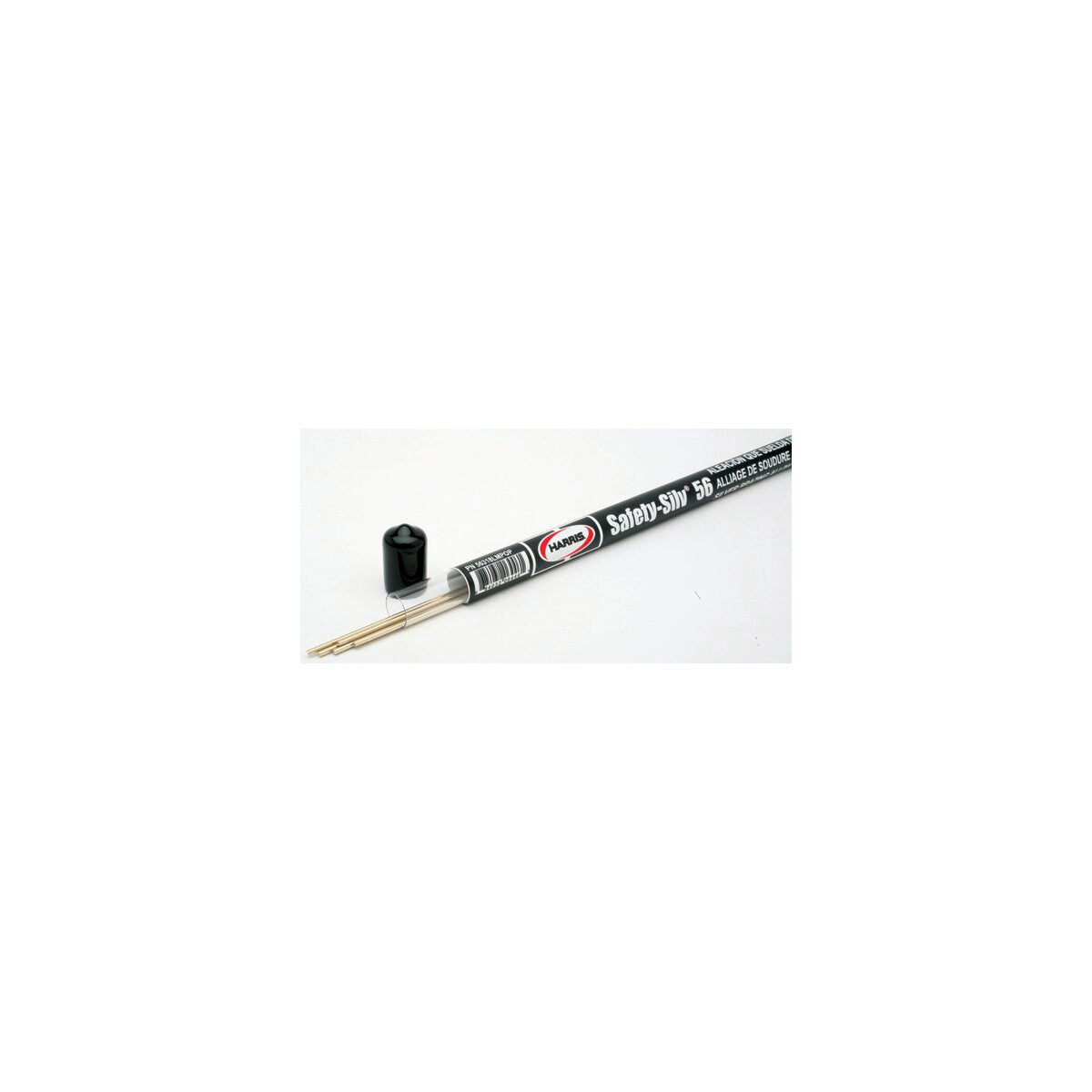

Safety-Silv® 56 Silver Brazing Alloy

Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Conforms to the EU Reach & RoHS directive.

• Safety-Silv® 56 silver brazing alloy POP 1/16 x 18 in. 1 ea. mini-pak 5-stick tube
• Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Conforms to the EU Reach & RoHS directive.
• silver cadmium-free brazing alloy
• Produces premium quality brazes
• Free-flowing with unsurpassed capillary attraction
• Deep penetration with high ductility
• Excellent fluidity promotes penetration
• Meets NSF/ANSI Standard 51 for food equipment materials
• Silver color is excellent match for stainless steel and silverware applications
• Ideal for brazing stainless steel for food service industry
• Complies with the EU Reach & RoHS directive
• Safety-Silv® 56 silver brazing alloy 1/16 x 18 in. 1 ea. mini-pak 5-stick tube POP
• 1 Year
• Safety-Silv® 56
• Harris
• ANSI
• Rohs;Reach

• Alloy Type: HighSilver
• Brazing Temperature Range: 1205◦F - 1400◦F (652◦C - 760◦C)
• Chemical Composition: Silver 55-57%;Copper 21-23%;Zinc 15-19%;Tin 4.5-5.5%;Other (Total) 0.15%
• Classification: ANSI/AWS A5.8 BAg-7;ASME SFA 5.8 & QQ-B-654A, Class BAg-7, AMS 4763;ISO 17672 Ag 156
• Color: Silver - Good color match to stainless steel
• Density: 4.93 toz./cu.in.
• Diameter: 1/16 in. (1.6 mm)
• Electrical Conductivity (%IACS): 8.32
• Fluidity Rating: 8
• Liquidus: 1205°F (652°C)
• Material: Silver
• NSF Compliant: Yes
• NSF Specification: NSF/ANSI Standard 51 for food equipment materials
• RoHS Compliant: Yes
• Size: 1 ea. tube
• Solidus: 1145°F (618°C)
• Typical Application: Brazing copper, brass, steel, stainless steel and some nickel alloys;Brazing ferrous and non-ferrous metals;Foodservice industry;Stainless utensils

What's Included: Safety-Silv® 56 silver brazing alloy 1/16 x 18 in. 1 ea. mini-pak 5-stick tube POP

Model Name: Safety-Silv® 56
