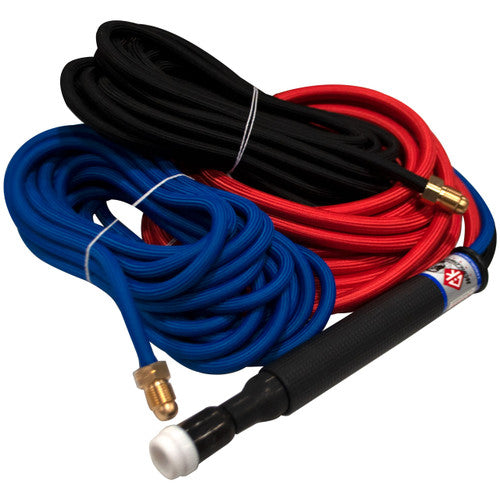

CK Worldwide CK18P-25SF 350 Amp Water-Cooled Pencil TIG Torch with 25' SuperFlex Cable

The CK18P-25SF delivers 350 amp precision TIG welding in a lightweight pencil-style torch designed for demanding production environments. This water-cooled torch combines Max Flow technology with exceptional maneuverability, featuring a compact 3 oz head and 25-foot SuperFlex cables for superior reach and flexibility in tight spaces.

• 350 amp capacity — ACHF or DCSP at 100% duty cycle
• Water-cooled Max Flow technology for continuous operation and extended service life
• Ultra-lightweight pencil head — only 9-1/4" long, weighs just 3 oz
• 25-foot SuperFlex cables provide exceptional flexibility and extended reach
• 3-piece cable construction for reduced maintenance and improved durability
• Rigid head design delivers precise arc control for critical welding applications

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 300S — Short Backcap

Engineered for CK's 3 Series torch system, this pencil torch excels in precision applications where reduced weight and enhanced dexterity are critical. The pencil-style configuration reduces operator fatigue during extended welding sessions while maintaining the full amperage capacity needed for heavy-duty fabrication work.
