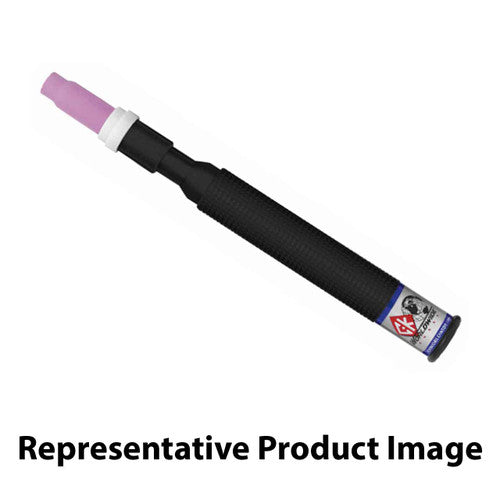

CK Worldwide CK18P-12 350 Amp Water-Cooled Pencil TIG Torch - 12.5 ft Cable

The CK Worldwide CK18P-12 delivers professional-grade precision in an ultra-lightweight pencil configuration. Built for continuous operation at 350 amp ACHF or DCSP at 100% duty cycle, this water-cooled torch combines CK's proven thermal management with exceptional operator comfort for demanding precision welding applications.

• 350 amp rating at 100% duty cycle for continuous operation
• Water-cooled design with Max Flow technology for superior heat dissipation
• Ultra-lightweight pencil style — only 3 oz (85g) for reduced operator fatigue
• Compact 9-1/4" length for access in tight spaces and intricate work
• 12.5 ft standard cable package for shop flexibility
• 3-piece construction for easy maintenance and serviceability
• Rigid head style for maximum precision control

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup

The CK18P's pencil design excels in precision applications where maneuverability and operator comfort are critical. Compatible with CK's 3 Series consumables and accessories, this torch provides professional welders with the reliability and performance demanded in production environments and critical fabrication work.
