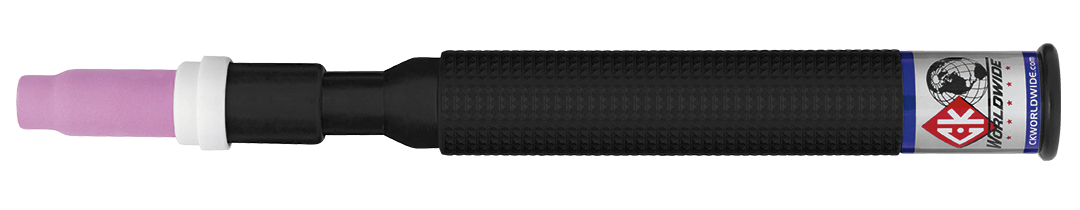

CK Worldwide CK18P-25-R-AVC 350 Amp Water-Cooled Pencil TIG Torch with Valve, 25 Foot

The CK18P-25-R-AVC delivers professional-grade 400 amp water-cooled precision in a compact pencil-style TIG torch with integrated valve control for demanding production welding applications. This rigid head design provides superior arc stability while the built-in valve allows precise gas flow adjustment without returning to the welding console.

• 400 amp rating @ 100% duty cycle for continuous high-amperage welding operations
• Water-cooled with Max Flow technology maintains optimal operating temperatures during extended use
• Rigid pencil head design delivers maximum arc control and precision in tight spaces
• Integrated valve on handle enables on-the-fly gas flow adjustment for enhanced productivity
• 25-foot standard cable provides excellent reach for large workpieces
• 3-piece construction allows easy maintenance and part replacement
• Compact profile: 9-1/4" overall length, 3 oz weight for reduced operator fatigue
• Compatible with 3 Series consumables for cost-effective operation

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup

Ideal for precision welding in confined areas where full-size torch access is limited. The pencil configuration with valve control makes this torch particularly effective for production environments requiring frequent amperage and gas flow adjustments without interrupting workflow.
