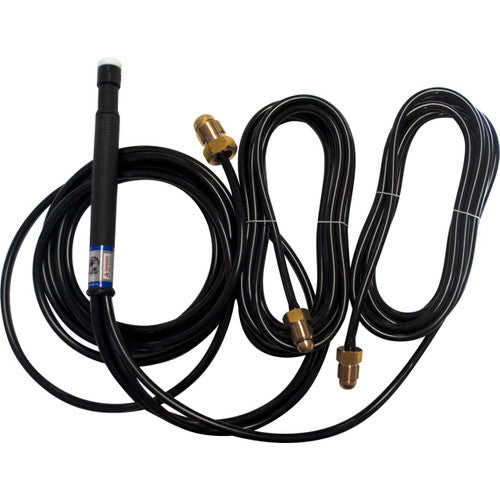

CK Worldwide CK20P-12 TIG Torch - 250 Amp Water-Cooled Pencil Head, 12.5' Cable

The CK20P-12 delivers 250 amp capacity at 100% duty cycle in a compact rigid pencil head design, engineered for precision TIG welding in tight spaces where standard torch heads cannot reach.

This water-cooled torch combines CK Worldwide's Max Flow cooling technology with a 7.5-inch rigid pencil head configuration, providing superior arc control and stability for demanding fabrication work. The 12.5-foot standard 3-piece cable assembly offers reliable performance while maintaining excellent maneuverability at just 3 ounces.

• 250 amp ACHF or DCSP at 100% duty cycle for continuous heavy-duty welding
• Water-cooled design with Max Flow technology maintains optimal operating temperature
• Rigid pencil head provides superior arc control and stability
• 7.5-inch overall length, 3 oz weight for excellent maneuverability in confined spaces
• 12.5-foot standard 3-piece cable assembly offers reliable performance
• 2 Series head accessories compatibility for versatile consumable options

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" Collet
• 2C116 — 1/16" Collet
• 2CB40 — .040" Collet Body
• 2CB116 — 1/16" Collet Body
• 2A4 — #4 Alumina Cup
• 2A5 — #5 Alumina Cup
• 2A6 — #6 Alumina Cup
• 2A8 — #8 Alumina Cup
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

The CK20P-12 is ideal for precision welding applications in aerospace, motorsports, and fabrication environments where access is limited and consistent arc performance is critical. Compatible with standard CK 2 Series consumables and accessories.
