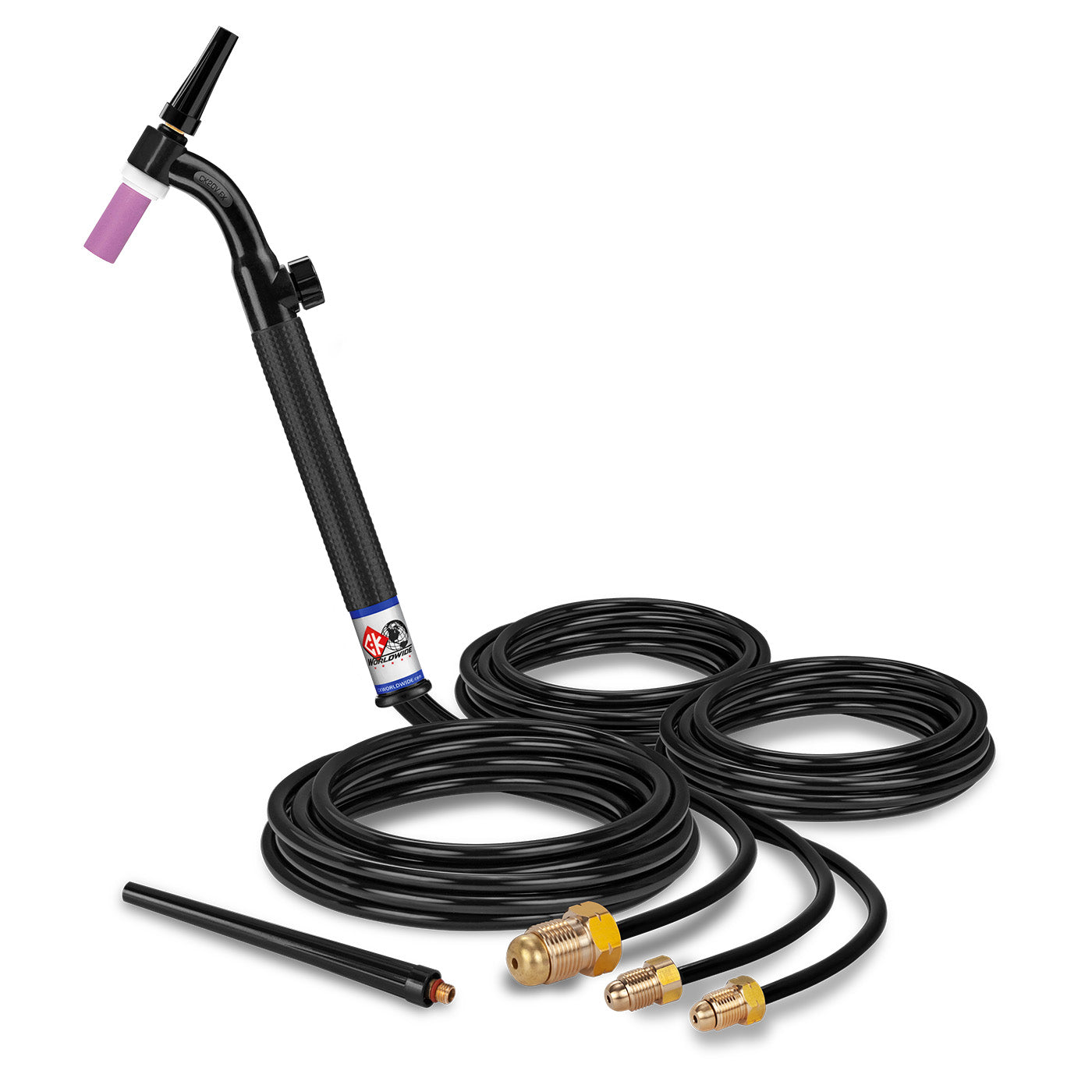

CK Worldwide CK20V-12 FX 250 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5

The CK20V-12 FX delivers professional TIG welding performance with 250 amp capacity at 100% duty cycle and CK's signature flex head technology that articulates 40° in any direction for optimal torch positioning in tight spaces. This water-cooled torch features integrated valve control for on-the-fly gas flow adjustment and maintains consistent temperatures during extended welding sessions.

Built for demanding fabrication environments, this torch combines CK's Max Flow cooling technology with a 12.5' standard cable configuration that provides excellent balance between reach and maneuverability. The 7-1/2" neck length and lightweight 3 oz design reduce operator fatigue during precision work.

• 250 amp ACHF or DCSP @ 100% duty cycle
• Flex head articulates 40° in any direction
• Water-cooled with Max Flow technology
• Integrated valve control for gas flow adjustment
• 12.5' three-piece cable assembly
• 7-1/2" neck length, 3 oz weight
• 2 Series consumable compatibility

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2A8 — #8 (1/2" 12.8mm) Alumina Cup
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

Ideal for precision welding applications requiring torch flexibility and extended duty cycles. Compatible with standard CK20 series rigid torches and shares the same consumable parts for simplified inventory management.
