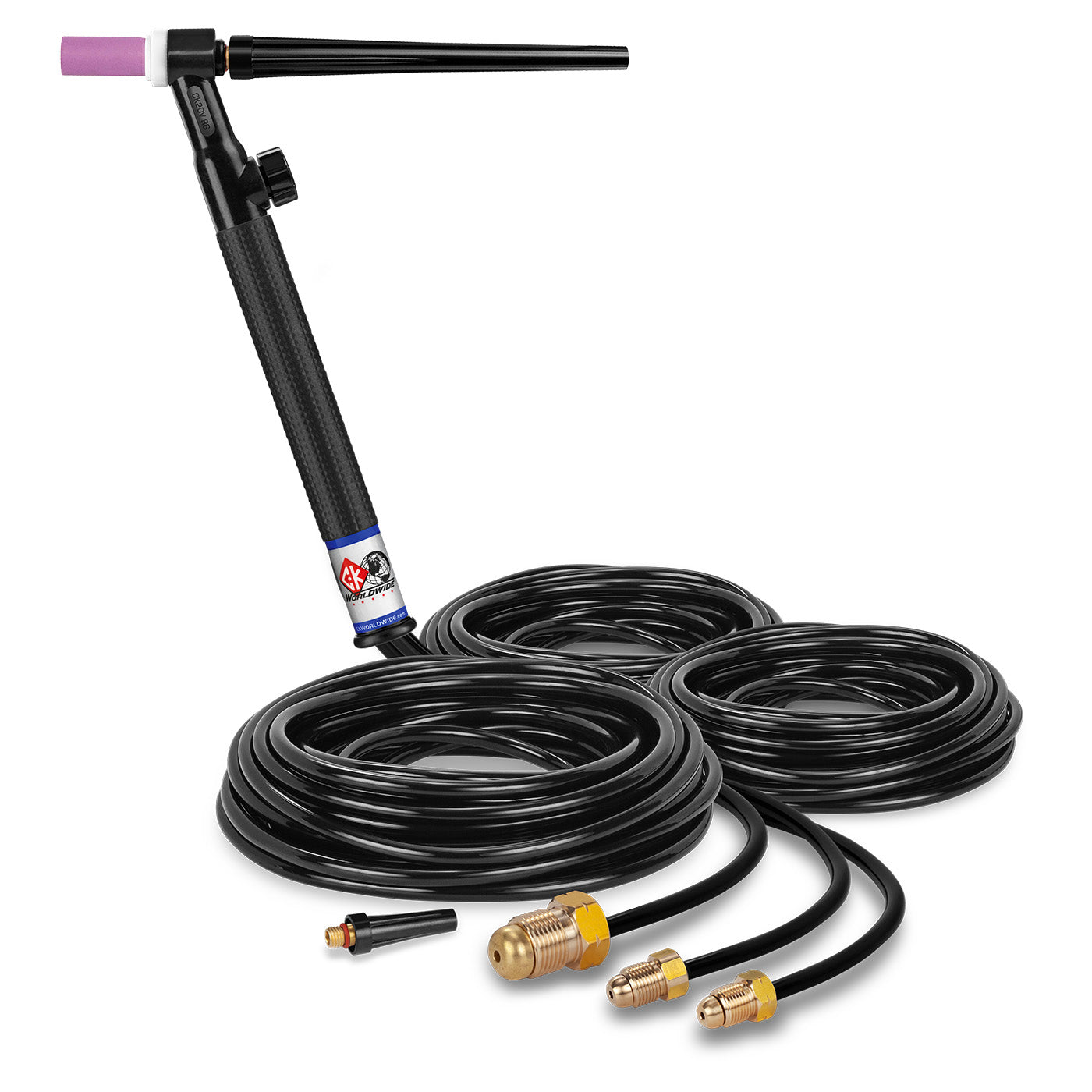

CK Worldwide CK20V-25 - 250 Amp Water-Cooled Rigid TIG Torch with Valve, 25' Cable

The CK20V-25 delivers professional-grade TIG welding performance with 250 amp capacity at 100% duty cycle, featuring a rigid head design for maximum stability and an integrated gas control valve for precise arc management. This water-cooled torch incorporates CK's Max Flow technology to maintain optimal operating temperatures during extended welding sessions.

The rigid head configuration provides superior arc control and tungsten stability, while the handle-mounted valve allows instant gas flow adjustment without returning to the machine controls. The 25-foot cable length provides excellent reach for larger fabrication projects and shop environments.

• Amperage Rating: 250 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Water-cooled with Max Flow technology
• Head Style: Rigid for maximum arc stability
• Cable Length: 25 feet (7.6m)
• Construction: 3-piece design
• Weight: 3 oz (85gm)
• Neck Length: 7-1/2" (19.0cm)
• Gas Control: Integrated handle valve

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

Part of the CK20 series, this torch is also compatible with CK25 and CK200 series accessories. Ideal for heavy-duty fabrication, structural welding, and industrial applications requiring extended welding periods with consistent performance.
