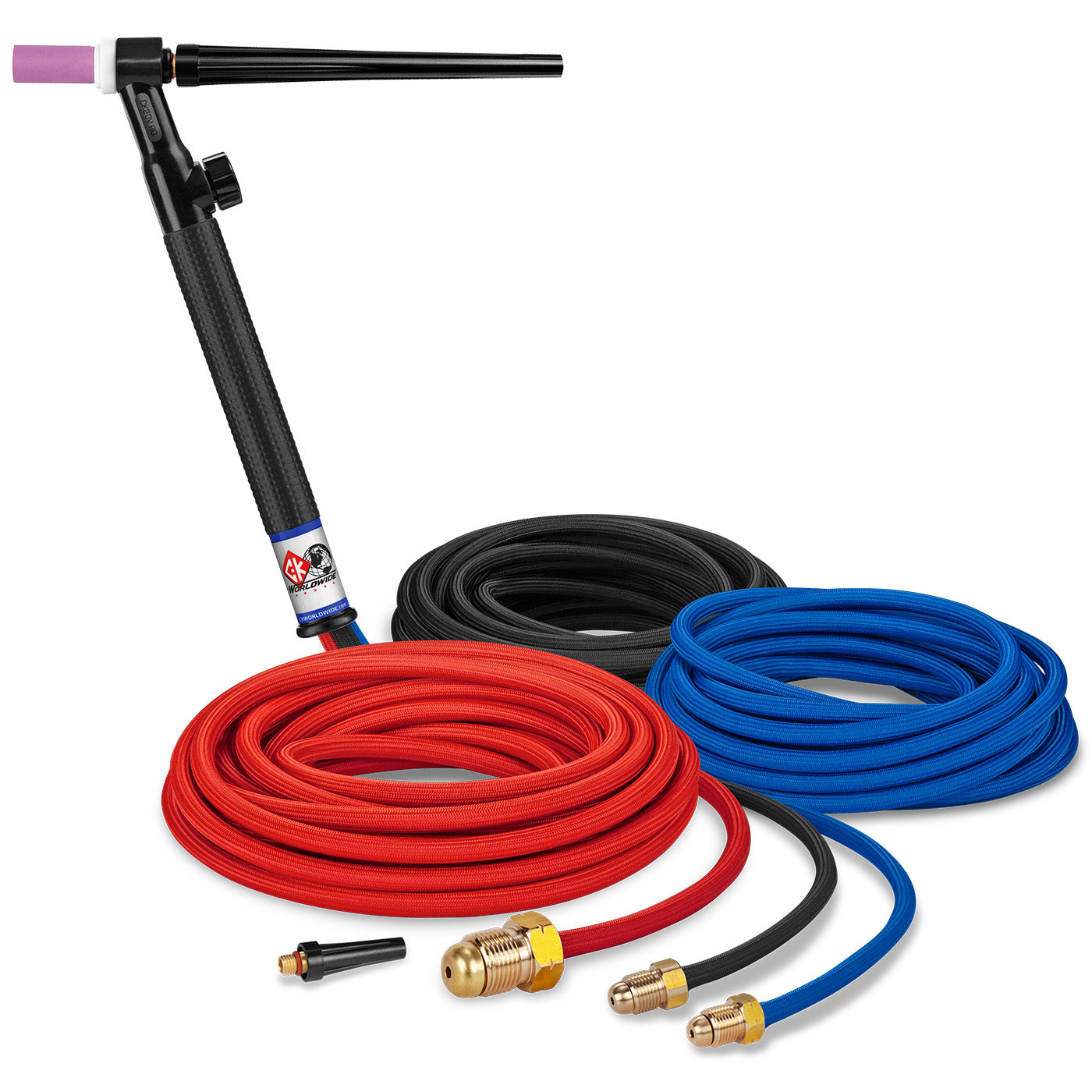

CK Worldwide CK20V-25 FX 250-Amp Water-Cooled Flex Head TIG Torch with Valve, 25 ft

The CK20V-25 FX delivers professional-grade TIG welding performance with 250 amp capacity at 100% duty cycle and integrated gas valve control. This water-cooled flex head torch provides exceptional maneuverability for demanding precision welding applications in industrial fabrication and critical weld joints.

Engineered with CK Worldwide's signature flex head design, this torch enables welding access to challenging angles while maintaining optimal arc control. The integrated gas valve on the handle provides precise shielding gas flow control directly at your fingertips, eliminating the need for remote foot pedal adjustment during welding operations.

• Amperage Rating: 250 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Water-cooled for continuous high-amperage operation
• Cable Length: 25 feet for extended reach
• Head Style: Flex head with 40-degree articulation
• Gas Valve: Integrated handle-mounted valve for precise gas control
• Cable Configuration: 3-piece cable assembly
• Weight: 3 oz torch head for reduced operator fatigue
• Series Compatibility: 2 Series head accessories

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

This torch is ideal for high-amperage aluminum, stainless steel, and exotic alloy welding where precise gas control and flexible positioning are critical. Compatible with CK Worldwide's complete line of 2 Series consumables and Gas Saver accessories for extended tungsten stick-out and improved gas coverage.
