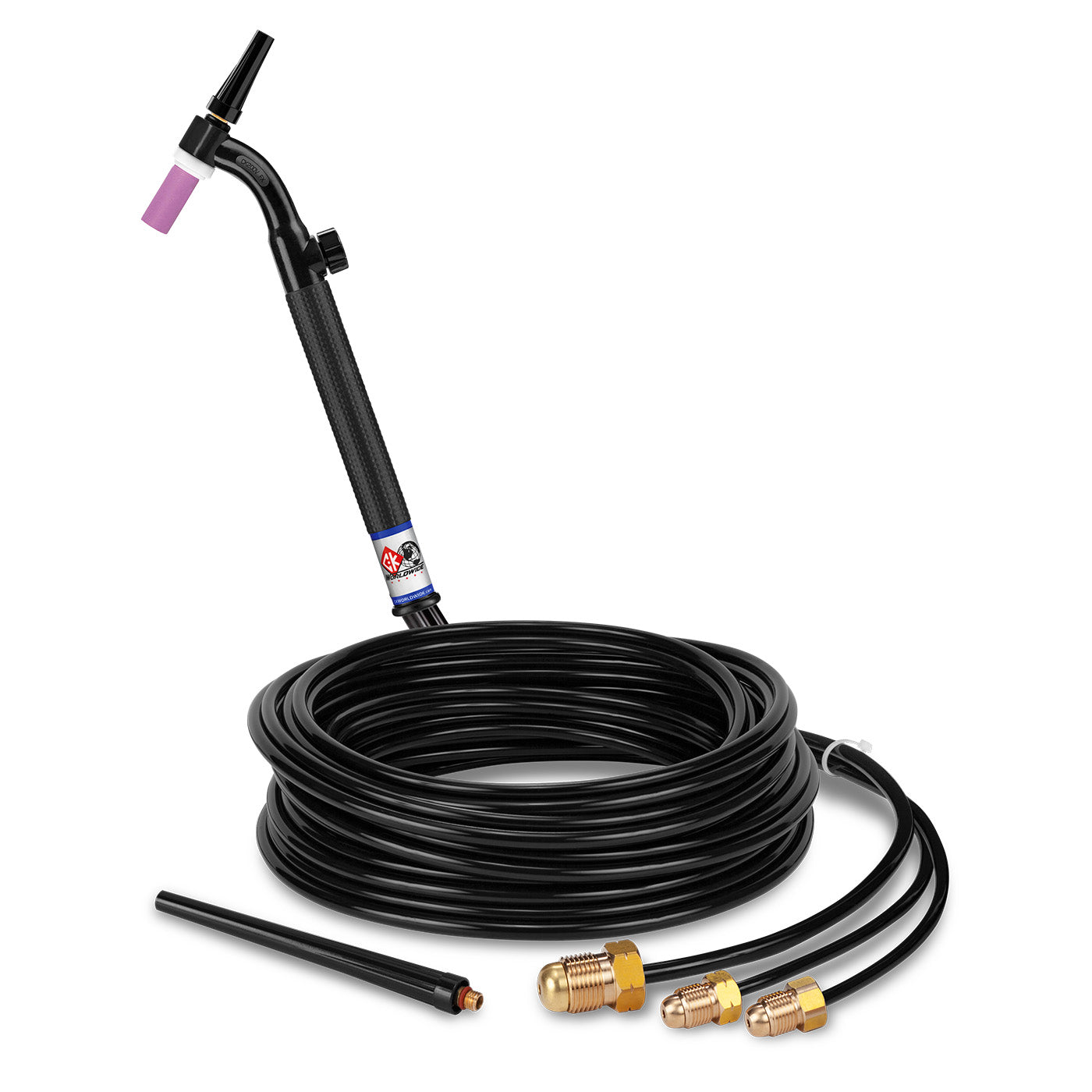

CK Worldwide CK225V FX - 250 Amp Water-Cooled TIG Torch with Flex Head & Valve, 25

The CK225V FX delivers 250 amp capacity at 100% duty cycle with a flexible head design that articulates up to 40 degrees in any direction for precision welding in tight spaces. The integrated gas valve provides direct shielding gas control from the torch handle, while water cooling with Max Flow technology ensures extended arc time for demanding production applications.

This professional-grade TIG torch features a robust 3-piece cable assembly with 25-foot standard length, providing excellent reach and flexibility for shop and field applications. The flex head design allows welders to access challenging joint configurations while maintaining proper arc characteristics and gas coverage.

• 250 amp ACHF or DCSP at 100% duty cycle rating
• Flex head articulation — 40 degrees in all directions
• Integrated gas valve for precise flow control at the handle
• Water-cooled design with Max Flow technology
• 25-foot standard cable assembly for extended reach
• 3-piece cable construction for durability and serviceability
• 7-1/2" neck length with 3 oz torch head weight
• Compatible with ACHF (AC High Frequency) and DCSP welding processes

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

Ideal for aluminum fabrication, stainless steel work, and precision welding applications where torch maneuverability is critical. The CK225V FX accepts standard 2 Series consumables and is compatible with most water-cooled power sources equipped with appropriate cooling systems.
