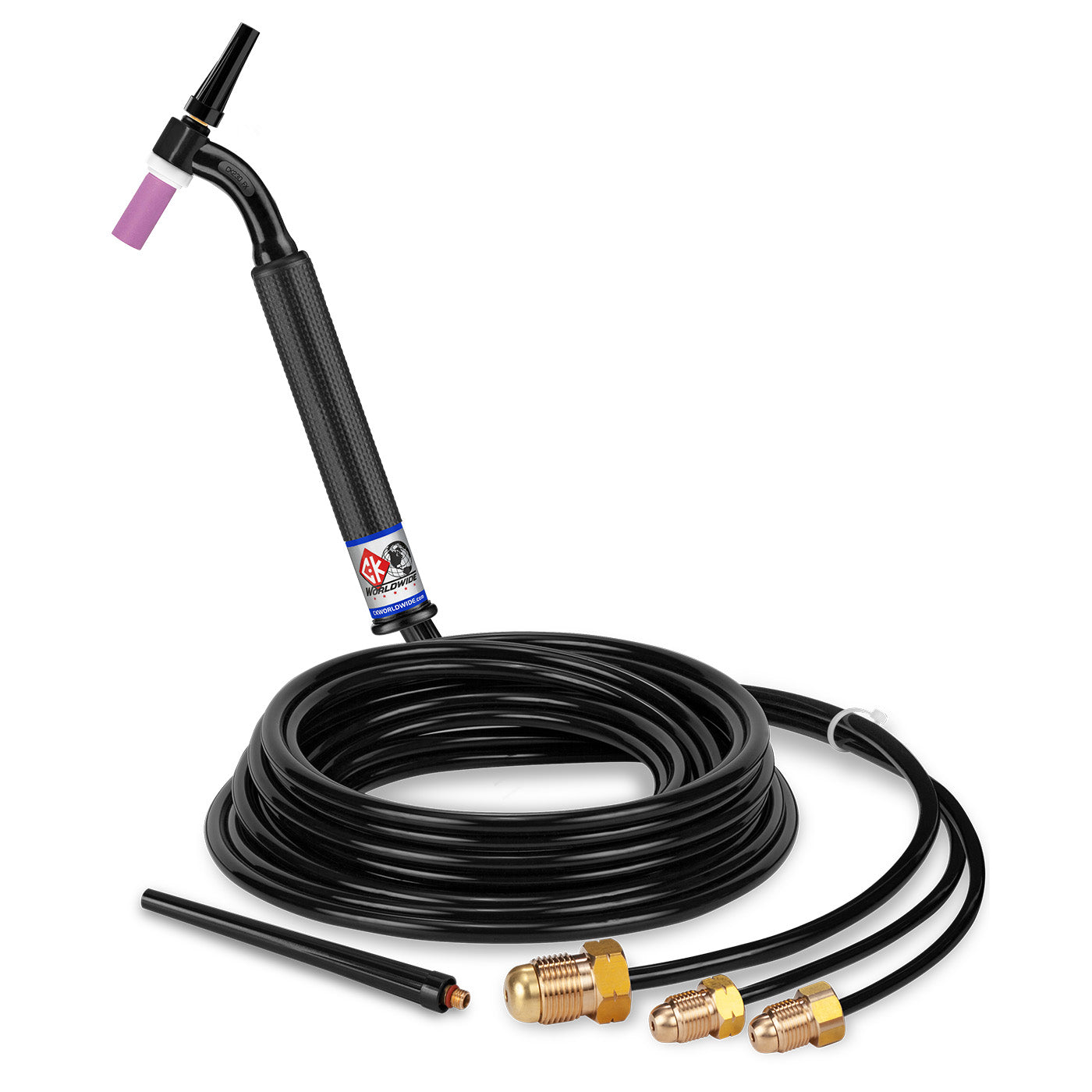

CK Worldwide CK2312 FX - 300 Amp Flex Head TIG Torch, Water-Cooled, 12.5

The CK2312 FX delivers professional-grade water-cooled TIG welding with the flexibility of CK Worldwide's signature flex head design. Rated for 300 amp ACHF or DCSP at 100% duty cycle, this heavy-duty torch features a 40-degree articulating head that provides unmatched access to complex joint configurations without compromising weld quality.

Built for demanding fabrication environments, this torch incorporates CK's Max Flow cooling technology to maintain optimal operating temperatures during extended welding sessions. The streamlined design eliminates the gas valve for reduced weight and improved maneuverability in tight spaces.

• Amperage Rating: 300 amp ACHF or DCSP @ 100% duty cycle
• Cable Length: 12.5 ft. (3.8m) standard 3-piece cables
• Head Style: 40-degree articulating flex head
• Cooling Type: Water-cooled with Max Flow technology
• Overall Length: 8-1/4" (20.9cm)
• Weight: 3-3/4 oz (106gm)
• Series: 2 Series heavy-duty consumables
• Configuration: Gas valve eliminated for reduced weight

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup

The CK2312 FX is ideal for production welding, structural fabrication, and precision work where torch access is critical. Compatible with all 2 Series consumables and accessories, making it a versatile choice for shops running multiple CK Worldwide torch models.
