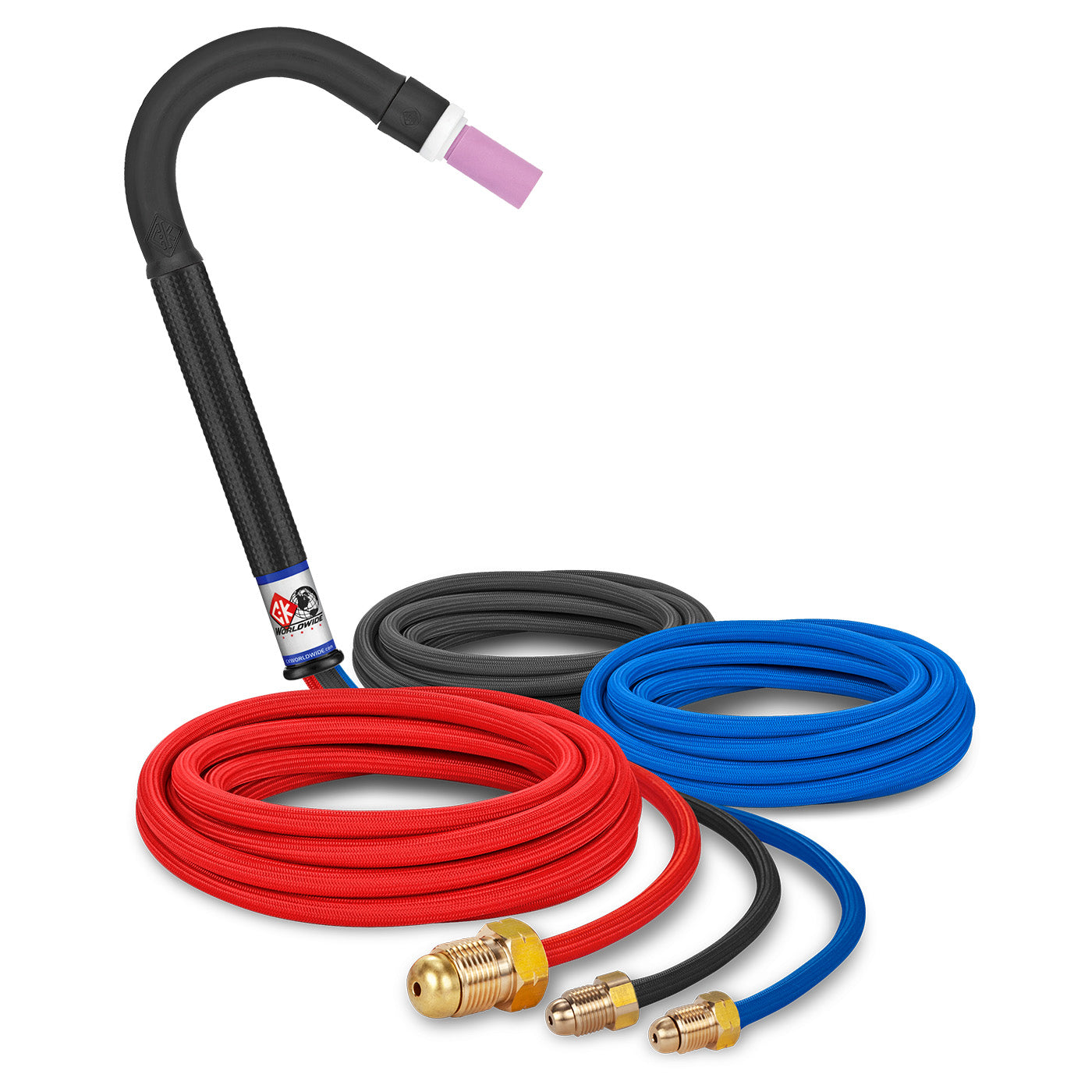

CK Worldwide CK25-12 250 Amp Flex Head TIG Torch, Water-Cooled, 12.5' Cable

The CK25-12 delivers professional 250 amp TIG welding performance with CK's signature 40-degree flex head design for precise positioning in tight spaces. This water-cooled torch features Max Flow cooling technology for extended duty cycles and consistent performance in demanding fabrication environments.

Built for the 2 Series platform, this torch combines durability with versatility for both AC and DC applications. The 12.5-foot standard cable length provides excellent reach while maintaining manageable weight and flexibility for all-position welding.

• 250 amp capacity at 100% duty cycle on AC high frequency or DC straight polarity
• 40-degree flex head articulation in any direction for superior access
• Water-cooled design with Max Flow technology for consistent temperatures
• 12.5-foot standard cables — 3-piece configuration for reliable power delivery
• 7.5-inch neck length with lightweight 3 oz torch head
• No valve configuration for streamlined operation
• 2 Series consumables — uses standard 5/16" x 24 thread pattern

Compatible Consumables

• 2C116 — 1/16" Collet
• 2C332 — 3/32" Collet
• 2C418 — 1/8" Collet
• 2CB116 — 1/16" Collet Body
• 2CB332 — 3/32" Collet Body
• 2CB418 — 1/8" Collet Body
• 2A5 — #5 Alumina Cup
• 2A6 — #6 Alumina Cup
• 2A8 — #8 Alumina Cup
• 200L — Long Back Cap

Compatible with all CK 2 Series torches including CK9, CK20, CK100, CK110, CK130, CK200, and CK230 models. Ideal for precision welding applications requiring maximum maneuverability and consistent cooling performance.
