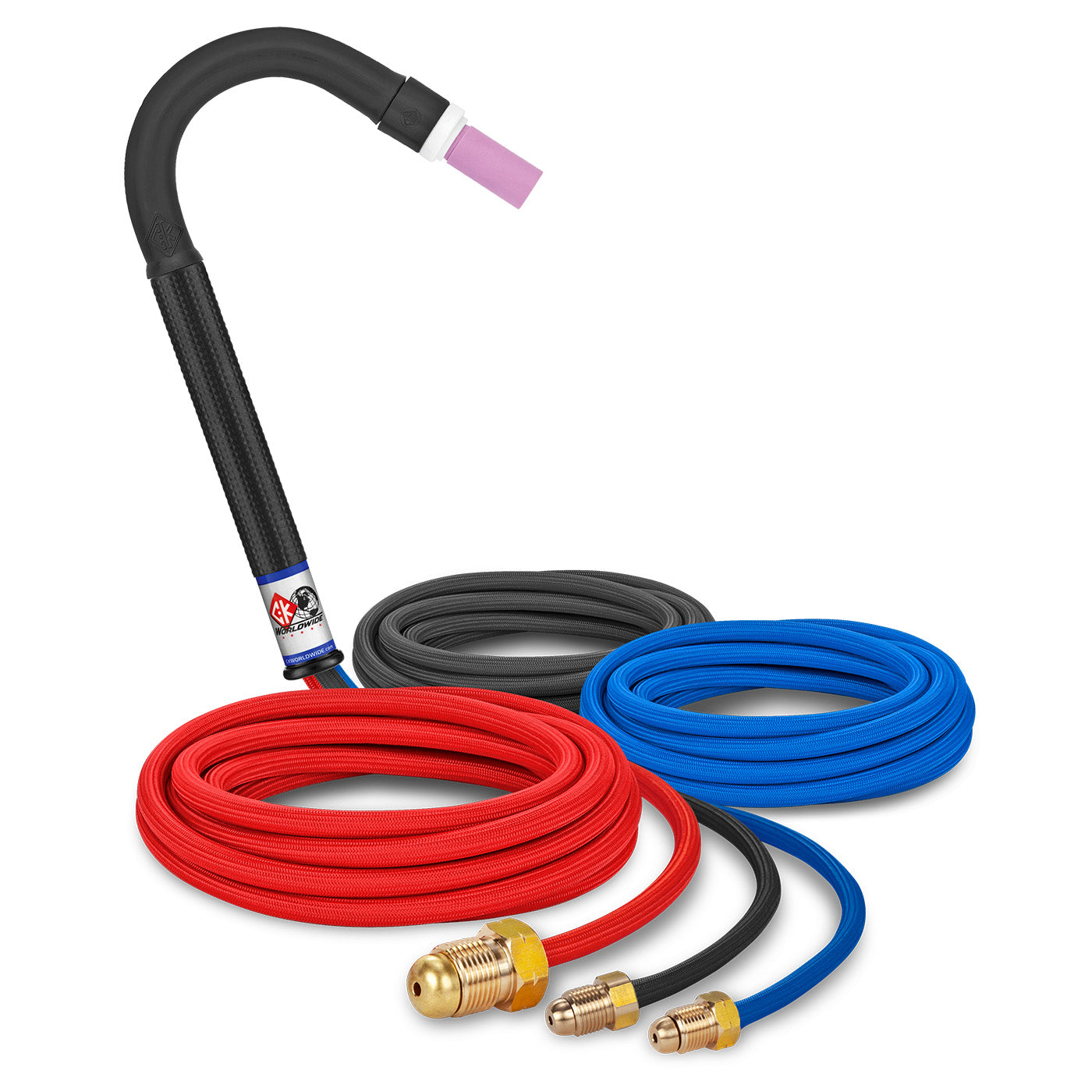

CK Worldwide CK25-12SF 250 Amp Flex Head TIG Torch, Water-Cooled, 12.5' SuperFlex

The CK25-12SF delivers 250 amp water-cooled performance with the flexibility of a 40-degree articulating flex head, designed for precision TIG work in confined spaces. Featuring CK Worldwide's Max Flow cooling technology and 12.5-foot Superflex cables, this torch maintains consistent performance at 100% duty cycle on both AC high frequency and DC straight polarity applications.

• 250 amp rating at 100% duty cycle (ACHF or DCSP)
• Flex head design — 40 degrees of articulation in any direction
• Water-cooled with Max Flow technology for superior heat management
• 12.5-foot Superflex cables for maximum flexibility and reduced fatigue
• 2 Series head accessories — standard 5/16" x 24 thread pattern
• Lightweight construction — 3 oz (85g) head weight
• 11.5-inch overall length for extended reach applications
• No valve configuration for streamlined operation
• 3-piece cable design for easy servicing

Compatible Consumables

• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2C418 — 1/8" (3.2mm) Collet
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2CB418 — 1/8" (3.2mm) Collet Body
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2A8 — #8 (1/2" 12.8mm) Alumina Cup
• 200L — Long Backcap

This torch is compatible with all 2 Series consumables and accessories, making it ideal for fabrication shops requiring versatile positioning capability without sacrificing the thermal management benefits of water cooling. The flex head design reduces wrist strain during extended welding sessions while maintaining precise arc control.
